W HEATHEART - G RAIN A UGERS 3. A SSEMBLY
X160-85, X160-105, X160-125
30875 R0 45

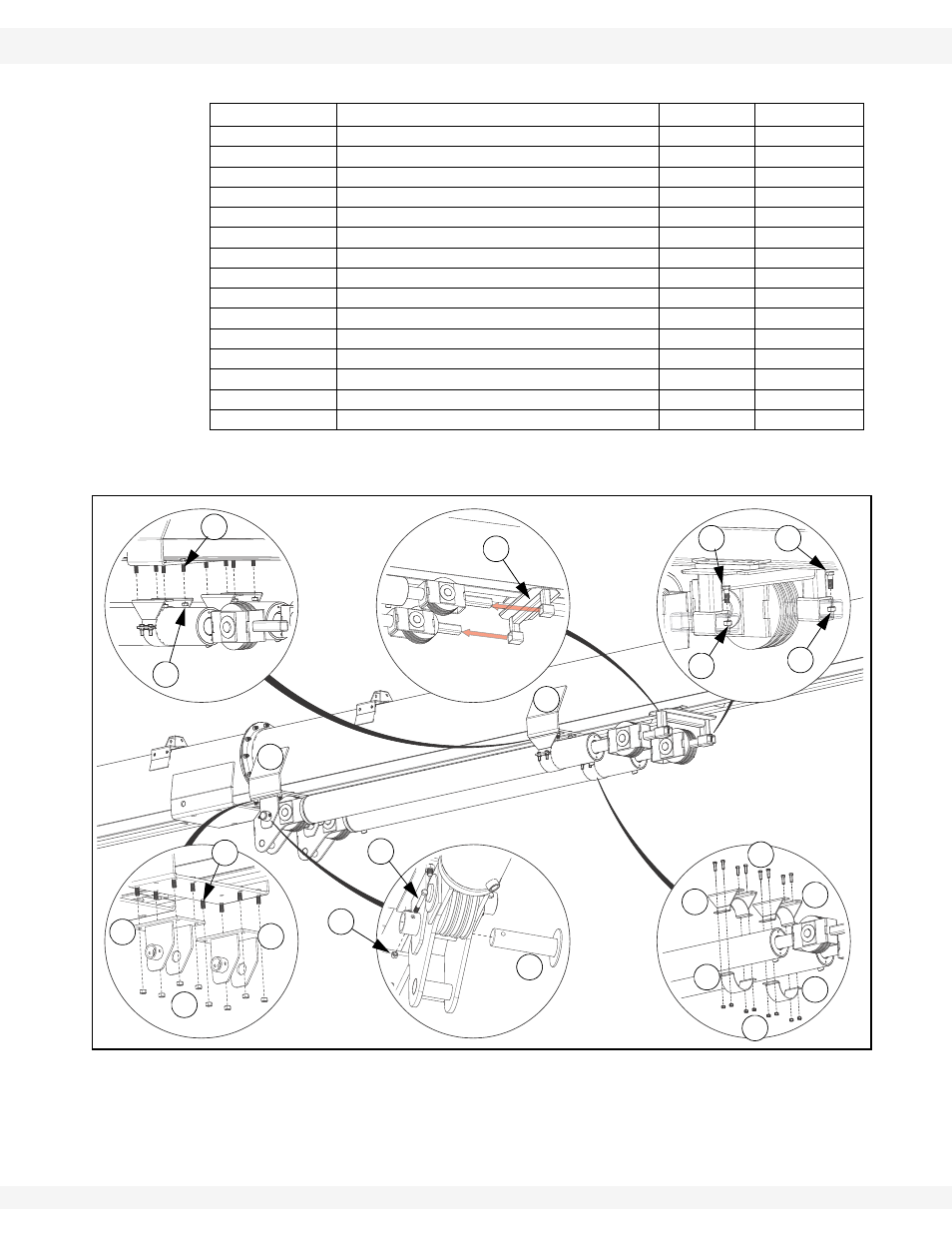

Figure 3.8 Installing the Lift Cylinders (X160-105/125)
Table 3.4 Install the X160-105/125 Hydraulic Lift Cylinders
Diagram # Description Part # Quantity
1A Rear cylinder-mount n/a 1
1B Front cylinder mount n/a 1
2 Rear cylinder-attach brackets 20749 2
3 Front cylinder-attach brackets 20735 2
4 Hydraulic cylinder 20799 2
5 Cylinder rod guide 20751 1
6 5/8” x 2” GR8 bolts 19991 16
7 5/8” x locknuts 19600 16
8 7/16” x 3-1/2” bolt 19547 2
9 7/16” locknut 19598 2
10 Cylinder pin 20744 2
11 1/2 x 1-1/2” bolt 19589 2
12 1/2 x 1-3/4” bolt 19974 8
13 1/2” locknut 19599 10
14 Half clamp 20736 2
1A
2
8
13
11
9
7
10
2
14
14
5
3
3
1B
11
13
13
12
6
7
6
