W HEATHEART - G RAIN A UGERS 3. A SSEMBLY
X160-85, X160-105, X160-125
30875 R0 37
3.2. ASSEMBLE THE AUGER TUBE
3.2.1. I DENTIFY AND A RRANGE A UGER T UBE S ECTIONS
1. Align tube sections on a series of support stands, placing a support stand at
the end of each tube (see Figure 3.1 through Figure 3.3 for correct tube
positioning, according to auger model).
2. As tubes sections are added, make sure that support stands are at equal
heights across all tubes to ensure that tubes are level with each other.
Otherwise, use some form of shim to keep the tubes level across all of the
support stands.
Important:
3. Strap tubes to the support stands to prevent the tubes from rolling off the
stands.

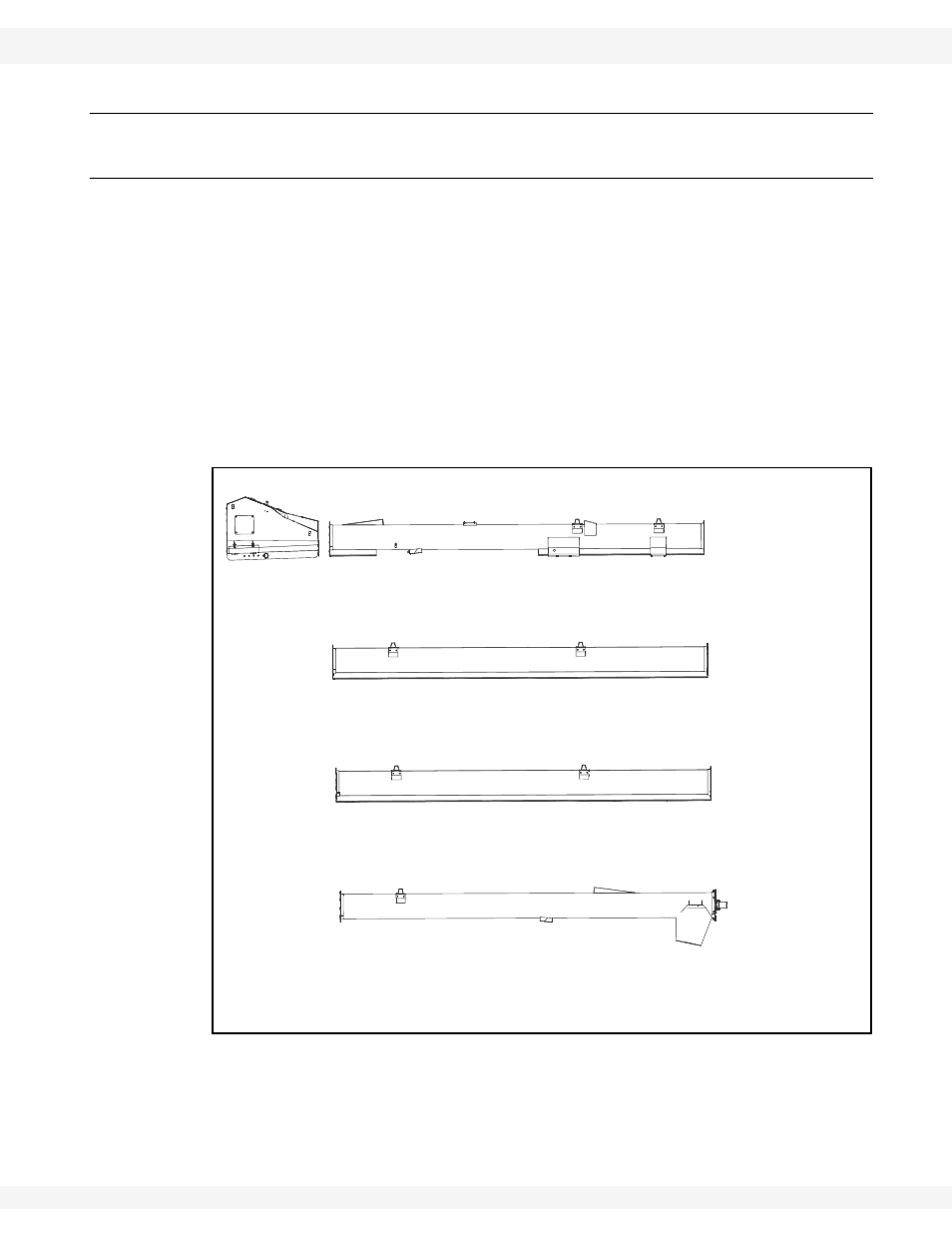

Figure 3.1 X160-85 Tube Identification and Order
LOWER TUBE
UPPER TUBE
UPPER
MIDDLE TUBE
20717
20716
20719
GRAIN
TRANSFER
BOOT
MIDDLE TUBE
20718
