3.2 Mounting accessories ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
14 ￭￭￭￭￭￭￭￭ 873 Biodiesel Rancimat
2
1
3
4
5
6
7
8
9
10
20
16
12
11
13
14
15
17
18
19

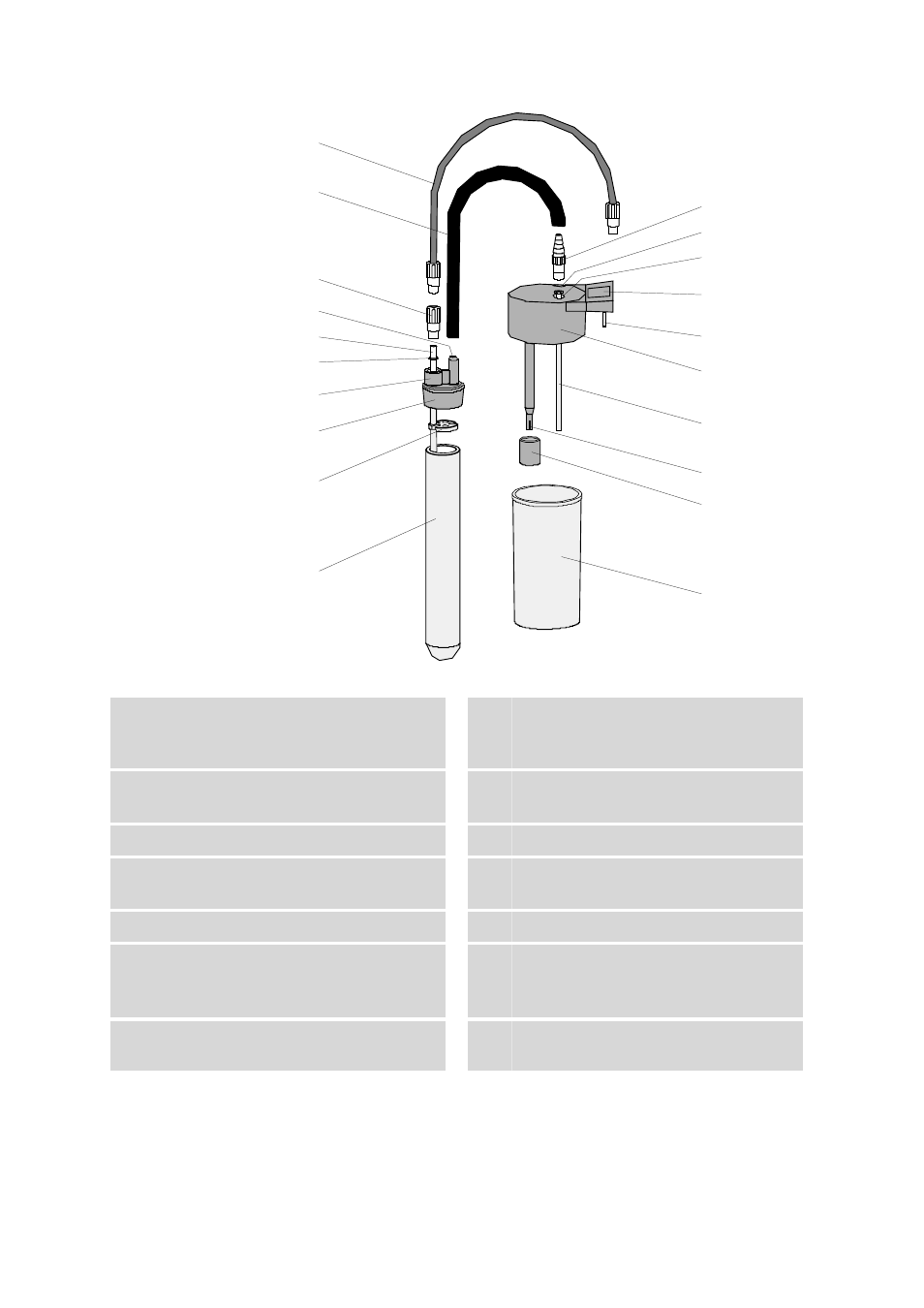

Figure 5 Equipping the reaction and measuring vessels
1 FEP tubing 250 mm (6.1805.080)
For supplying air into the reaction vessel. 2 Iso-Versinic ® tubing (6.1839.000)
For connecting the reaction vessel to the
measuring vessel. A fluoroelastomer.
3 Thread adapter M8 / M6 (6.1808.090) 4 Tubing connector
For connecting the Iso-Versinic
® tubing.
5 Air tube (6.2418.130) 6 O-ring (6.1454.040)
7 Connection
For connecting the thread adapter M8 / M6. 8 Reaction vessel cover (6.2753.107)
9 Foam barrier (6.1451.010) 10 Reaction vessel (6.1429.040)
11 Tubing adapter M8 / olive (6.1808.050)
For connecting the Iso-Versinic ® tubing to the
opening In (5- 13 ).
12 Opening "Out"
For removing the air from the measuring ves-
sel.
13 Opening "In"
For supplying the air to the measuring vessel.
14 Labeling field
For entering the cell constant.
