ClearCube Product Manual and Installation Guide
User Port Installation • 83
\
Adjusting the Fiber C/Port
The Fiber C/Port is nearly identical to a standard C/Port, with three important
differences:
•
The input jack is designed for a dual fiber, 62.5-micron MT-RJ connector.
•
There are no manual tuning dials on the unit. The Fiber C/Port contains automatic
gain control (AGC) circuitry, which alleviates the need for the manual sharpness
(equalization) or RGB (delay line) tuning.
•
The Fiber C/Port uses a different power supply module than the one used for the
standard C/Port and the Multi-Video Expander (MVX).
Adjusting the Monitor
Use the monitor’s auto-adjust and fine-tuning capabilities (focus, clock, etc.) to get the
optimal picture quality.
NOTE: The Fiber Optic Extension System only works with “straight-through” fiber
optic cable. Some cable installations employ “inverted” cable runs. These
need to be converted to straight-through cable runs by swapping the positions
of the fiber pair at a connector or patch panel.

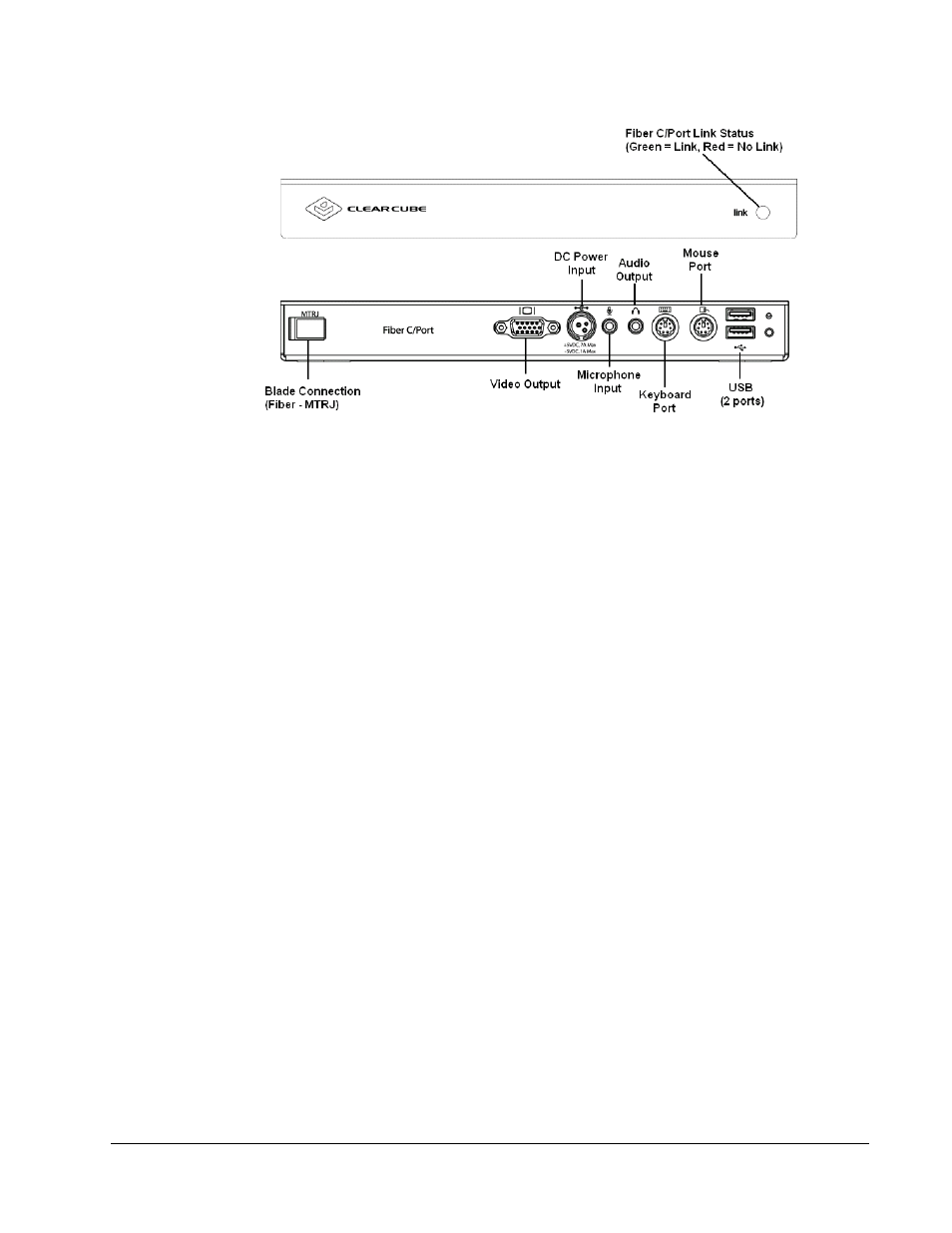

Figure 39 Fiber C/Port Rear View
Front View
Back View
