20 • ClearCube Architecture and Product Overview ClearCube Product Manual and Installation Guide
A display area at the front of each Blade provides active status indicators. The four
LEDs are described in Table 1 and depicted in Figure 2.

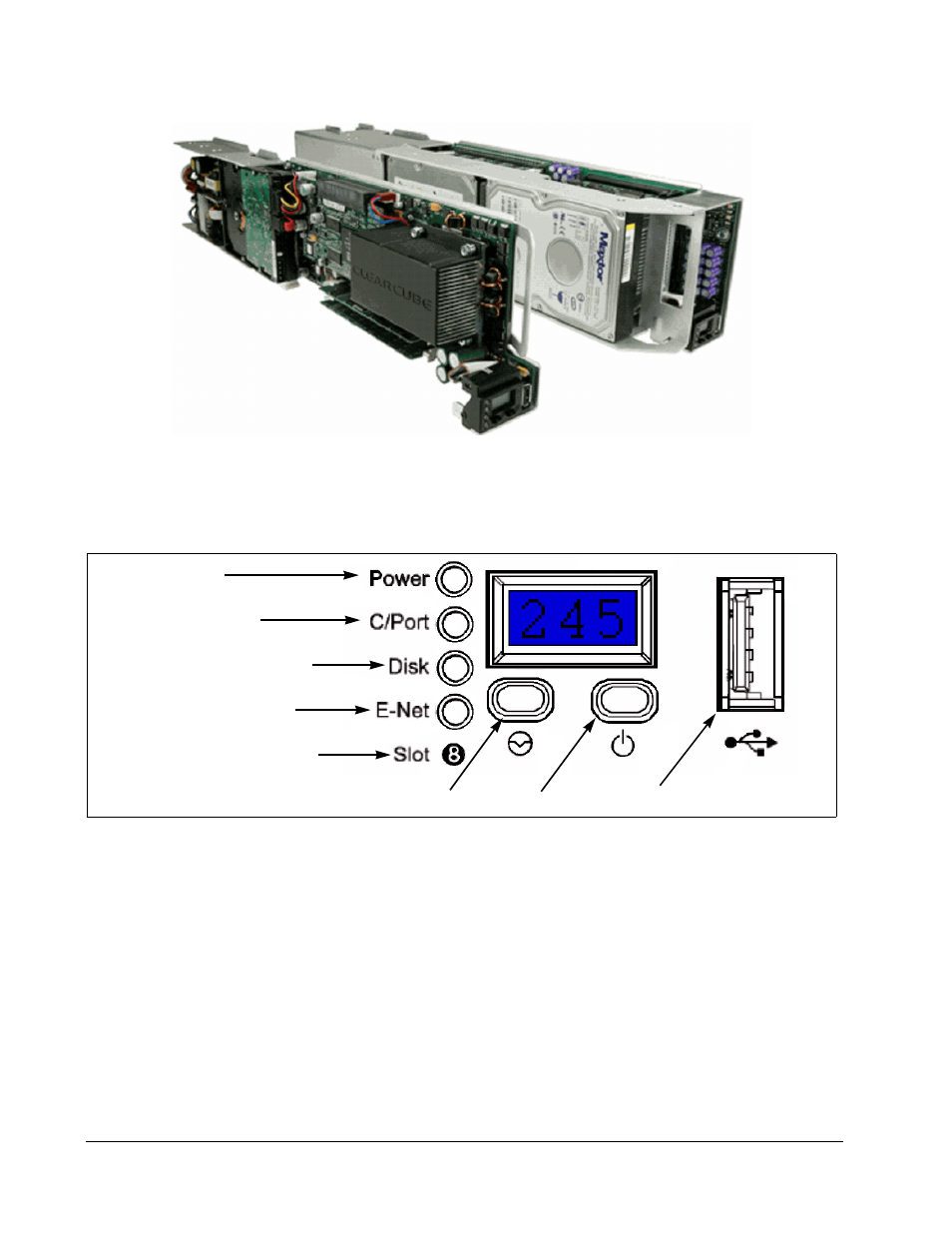

Figure 1 R Series PC Blades (Single and Dual Processor)
Figure 2 ClearCube R Series Blade Front Panel Display
Network Activity Indicator
Power Indicator
C/Port Link Indicator
Hard Drive Activity Indicator
Cage Slot Designation (1 – 8)
Reset Button Power Button Single USB Port
