48 • Cage and Blade Installation ClearCube Product Manual and Installation Guide
The three externally accessible module bays are as follows:
• Connect Bay
• Management Bay
• Network Bay
R4300 Modules
The R4300 modules are installed by sliding them into their respective bays and
seating the connector. The three bays are of different sizes and shapes, and a module
cannot be accidentally inserted into the wrong bay. All modules are hot-swappable,
and can be replaced without affecting any existing switching configurations within the
BackPack. A small label on each module indicates its position in the R4300, as shown
in Figure 20.

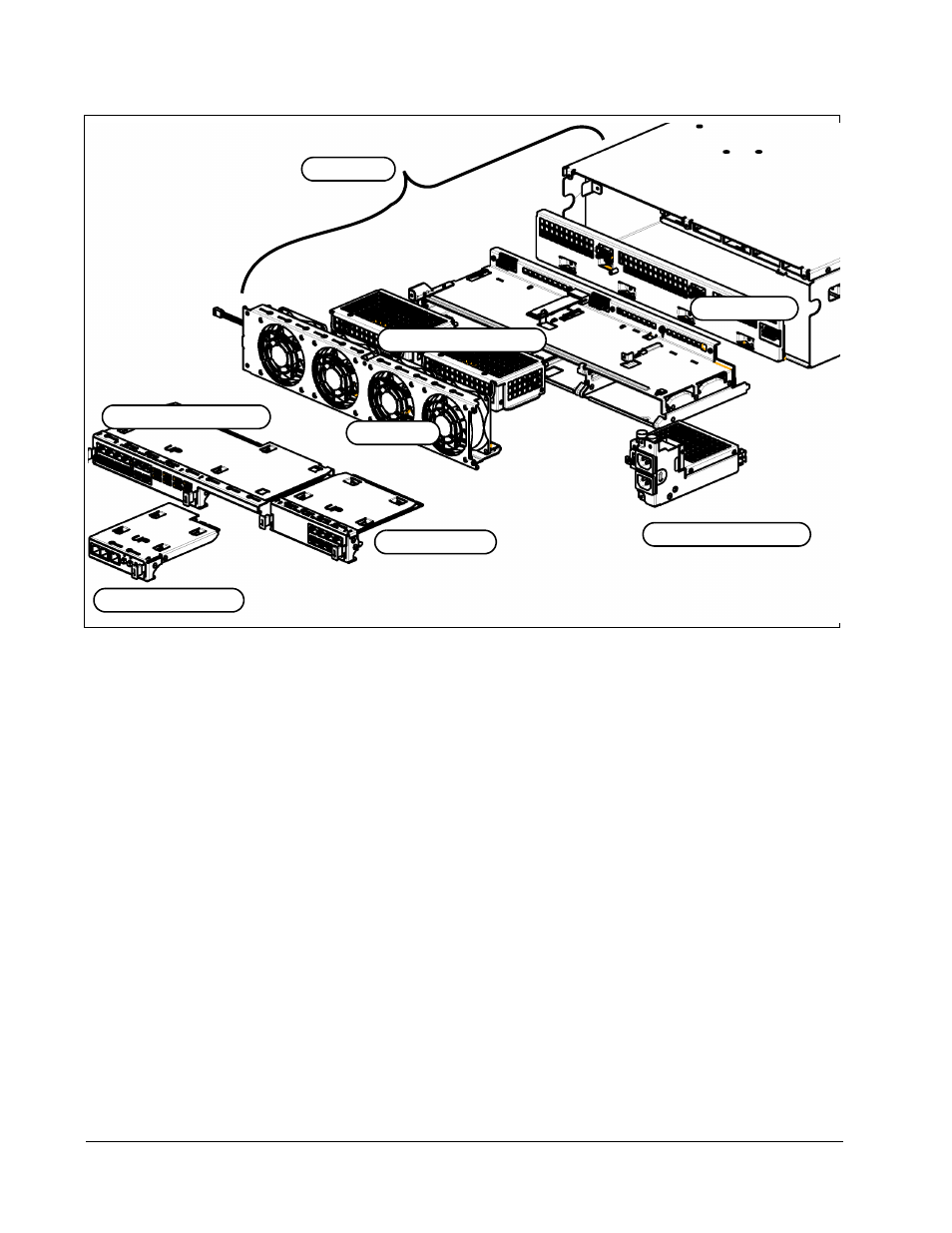

Figure 19 R4300 Exploded View
Management Module
Connect Bay Module
Network Module
Power Supply Modules
Fan Pack
Chassis
AC Backplane
Dual A/C Input Module
