64 • Cage and Blade Installation ClearCube Product Manual and Installation Guide
• If your Control Chain contains a mix of R4300s, BSBPs, and/or DCBPs and you
have an RMC installed in a BSBP or DCBP, that RMC is always the Primary and it
does not provide access to all of the functions of the R4300.
• If you add BSBPs or DCBPs to a Control Chain that contains one or more RMMs,
exchange BackPacks with RMCs installed for BackPacks that do not have RMCs.
NOTE: Maintain the default setting of JP1 on the RMM (auto-negotiation enabled).
See Figure 30 on page 63. Change this setting only at the recommendation of
ClearCube Technical Support or a ClearCube Support Engineer.
Configuring the RMM
ClearCube recommends using Switch Manager 4.6 as the primary configuration tool
for RMMs. See the Switch Manager 4.6 Administrator’s Guide for complete
information. The RMM can also be configured with Telnet. To configure an RMM using
Telnet, do the following:
1. Open a command window and enter
telnet RMM_IPAddress
where RMM_IPAddress is the IP address of the RMM to be configured.
2. Enter the password for the RMM (no characters are echoed), and type
cfg all
The list of configuration parameters in Figure 31 is shown.
3. Enter the command to change a parameter in the format:
cfg ParameterName Value
where ParameterName is the parameter and Value is its desired new value.
4. When finished changing parameters, type exit to close the Telnet window.

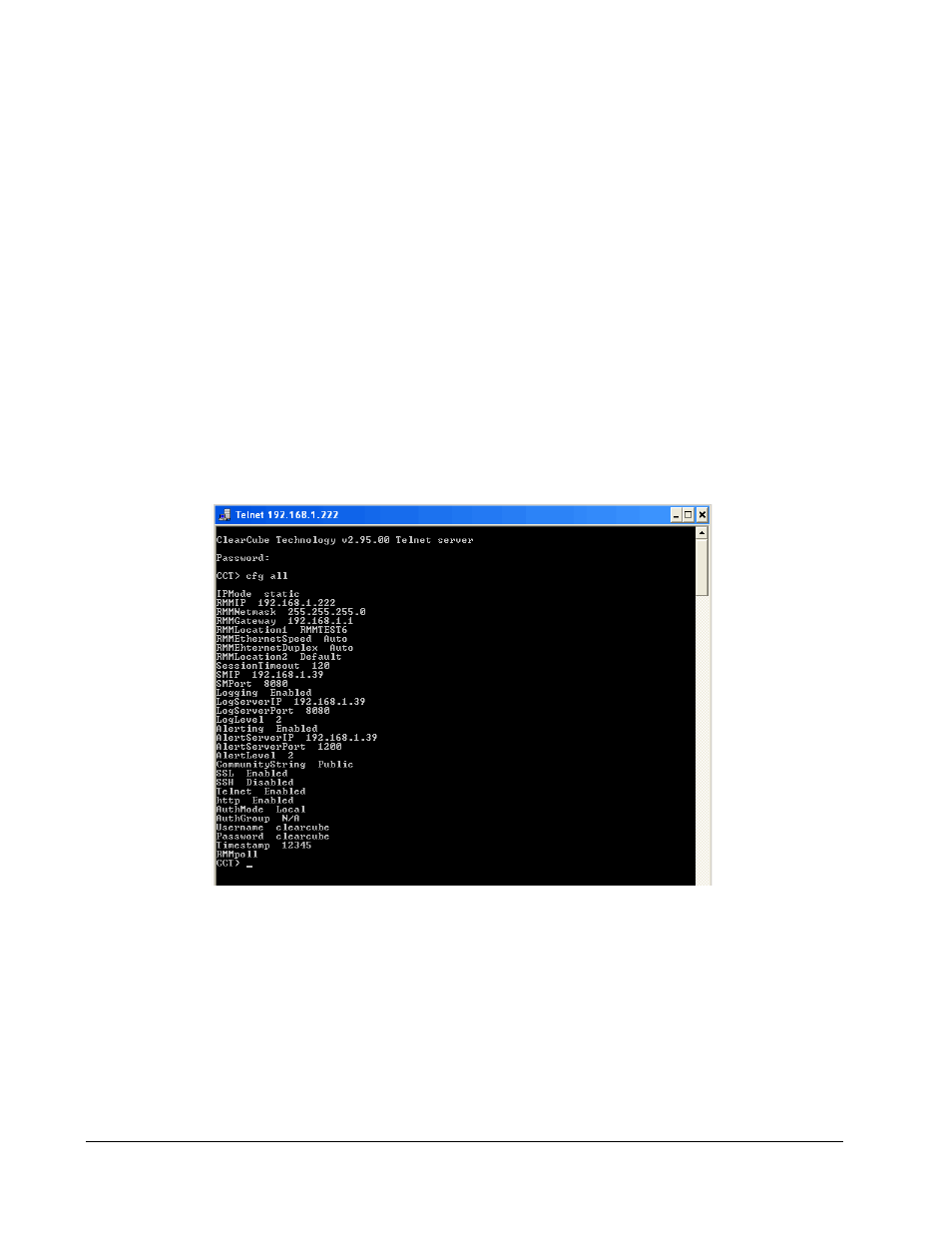

Figure 31 Telnet Commands for the RMM
