94 • MVX Installation
ClearCube Product Manual and Installation Guide
NOTE: The monitor connector ends of each splitter cable are stamped with either a 1
or a 2 to indicate the output sequence order.
The Multi-Video Solution supports several different resolutions and refresh rates.
Table 4 lists the supported combinations. These combinations apply per monitor, with
all monitors set to identical resolutions and refresh rates.
The ClearCube Multi-Video solution was designed and engineered to work with the
Quadro4 video adapter on the PC Blade. If the PC Blade contains a GeForce2 MX
graphics adapter, video is displayed only on the monitor connected to the MONITORS
1 & 2 output on the MVX.

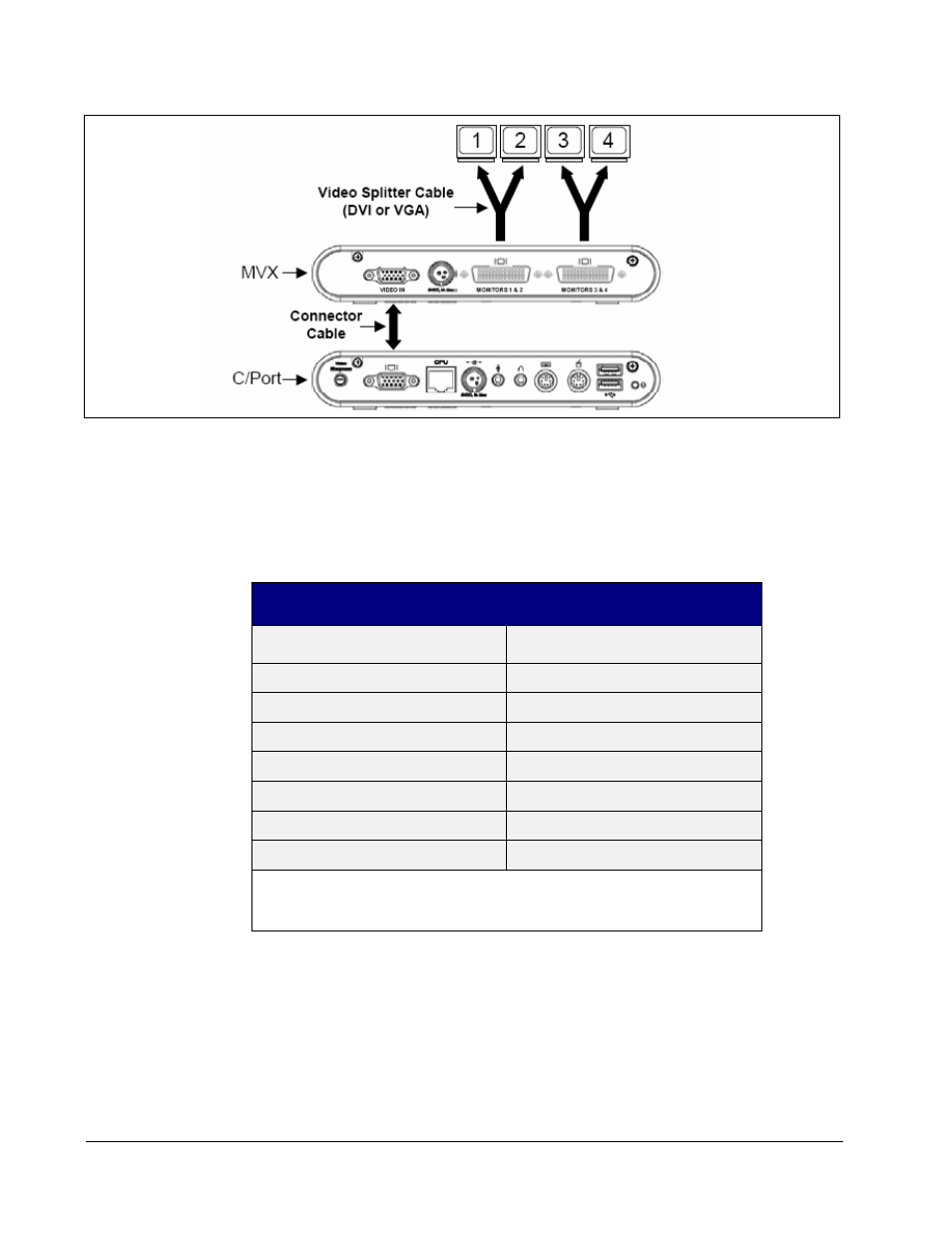

Figure 45 MVX Connection Diagram
Table 12 MVX Resolution/Refresh Rate Support
Screen Resolution *
Refresh Rates
640 x 480 (DOS Mode Only)
60Hz
800 x 600
60/75/85 Hz
1024 x 768
60/70/75/85 Hz
1152 x 864
75 Hz
1280 x 768
60/75/85 Hz
1280 x 960
60 Hz
1280x 1024
60/75 Hz
* When changing screen settings, the number of pixels is multiplied based on
screen orientation. For example, in 2x1 mode, at 1280x1024, the resolution is
shown as 2560x1024.
