ClearCube Product Manual and Installation Guide Cage and Blade Installation • 45
Cage Rapid Mount Kit
The Cage Rapid Mount kit allows installing Cages in a cabinet enclosure or other rack
that provides both front and rear posts.
To install a Cage using the Cage Rapid Mount (CRM) kit, do the following:
1. Unscrew the thumbscrew holding each pair of Cage and rack brackets together,
and slide the brackets apart.
2. Mount the Cage bracket to the Cage with 4 flathead screws. Repeat on the other
side.
NOTE: The Cage and rack brackets are interchangeable side-for-side.
3. Determine the location and holes to be used to mount the rack ears on the rack
bracket. A guide is provided in the CRM packaging. Insert rack ears on
spring-loaded slider to the back side of the back rack post.

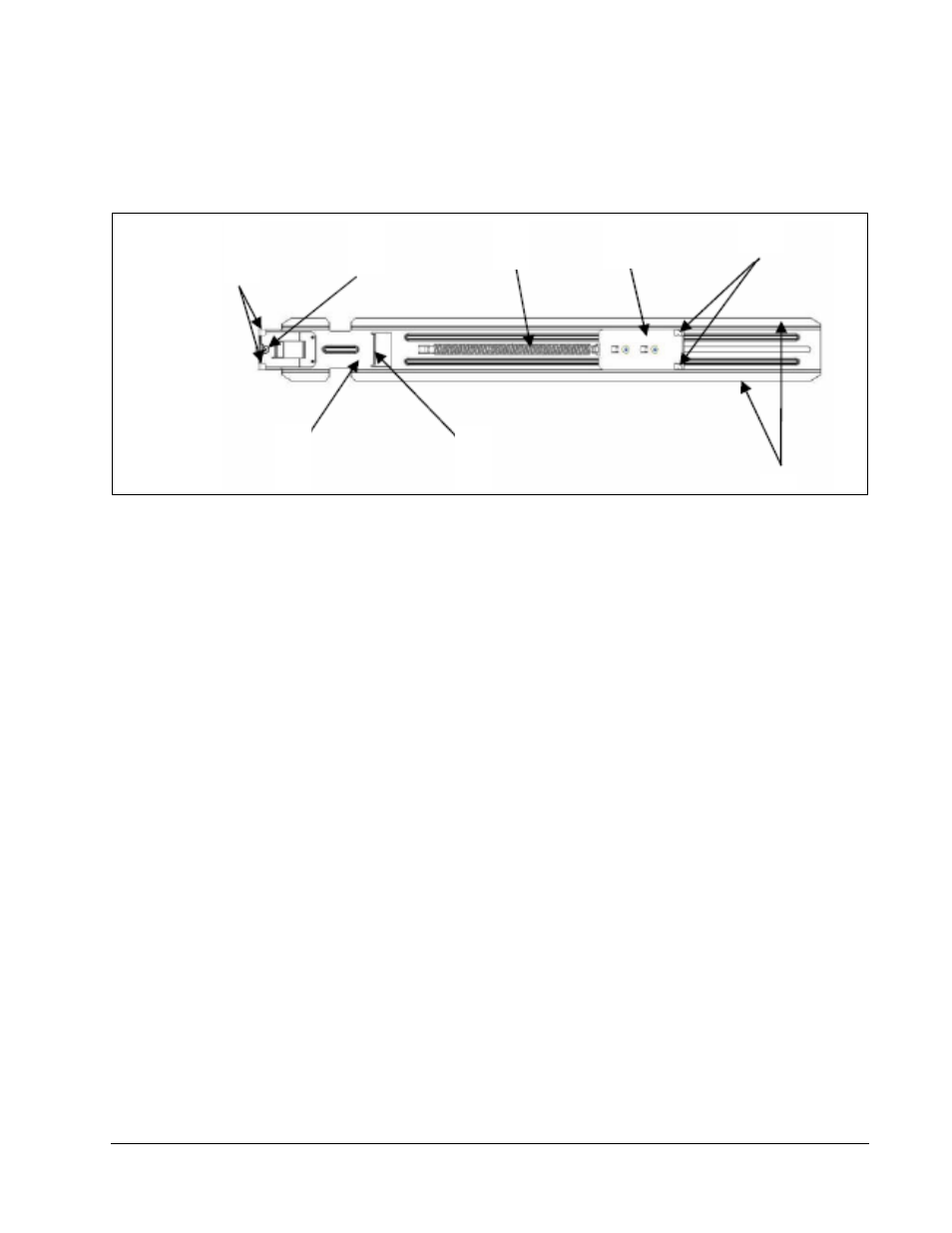

Figure 17 Rack Bracket for Cage Rapid Mount Kit
Front Rack Ears Locking Latch
Main Bracket Finger Handle
Spring Slider
Flanges
Slider (Back)
Rack Ears
