52 • Cage and Blade Installation ClearCube Product Manual and Installation Guide
Table 7 R4300 Status LEDs
These bi-color LEDs that indicate status for the connections on the module whose blue LED is lit. Status for each set of
connections can be viewed by pressing the Mode switch on the Management Bay module. The blue LED over the connections
being monitored is lit. The numbers for the LEDs correspond to the Blade slot numbers on the front of the Chassis.
STATUS Blue
• C/Port connection status
— Green = good digital link to Blade
— Red = bad digital link to Blade
— Off = no Blade
• USB connection status
— Green = USB available
— Red = USB not available
— Off = no Blade
• Network connection status
— Green = good network connection
— Off = no network connection, or no Blade
C/PORTS Blue
Blue LED that, when lit, indicates that the Status LEDs above the Management Bay module
are displaying status for the C/Port connections. Not populated on ACM. The Status LEDs
display these conditions for C/Ports:
• Green = good digital link to Blade
• Red = bad digital link to Blade
• Off = no Blade
USB Blue
Blue LED that, when lit, indicates that the Status LEDs above the Management Bay module
are displaying status for the USB connections. The Status LEDs display these conditions for
USB connections:
• Green = USB available
• Red = USB not available
• Off = no Blade

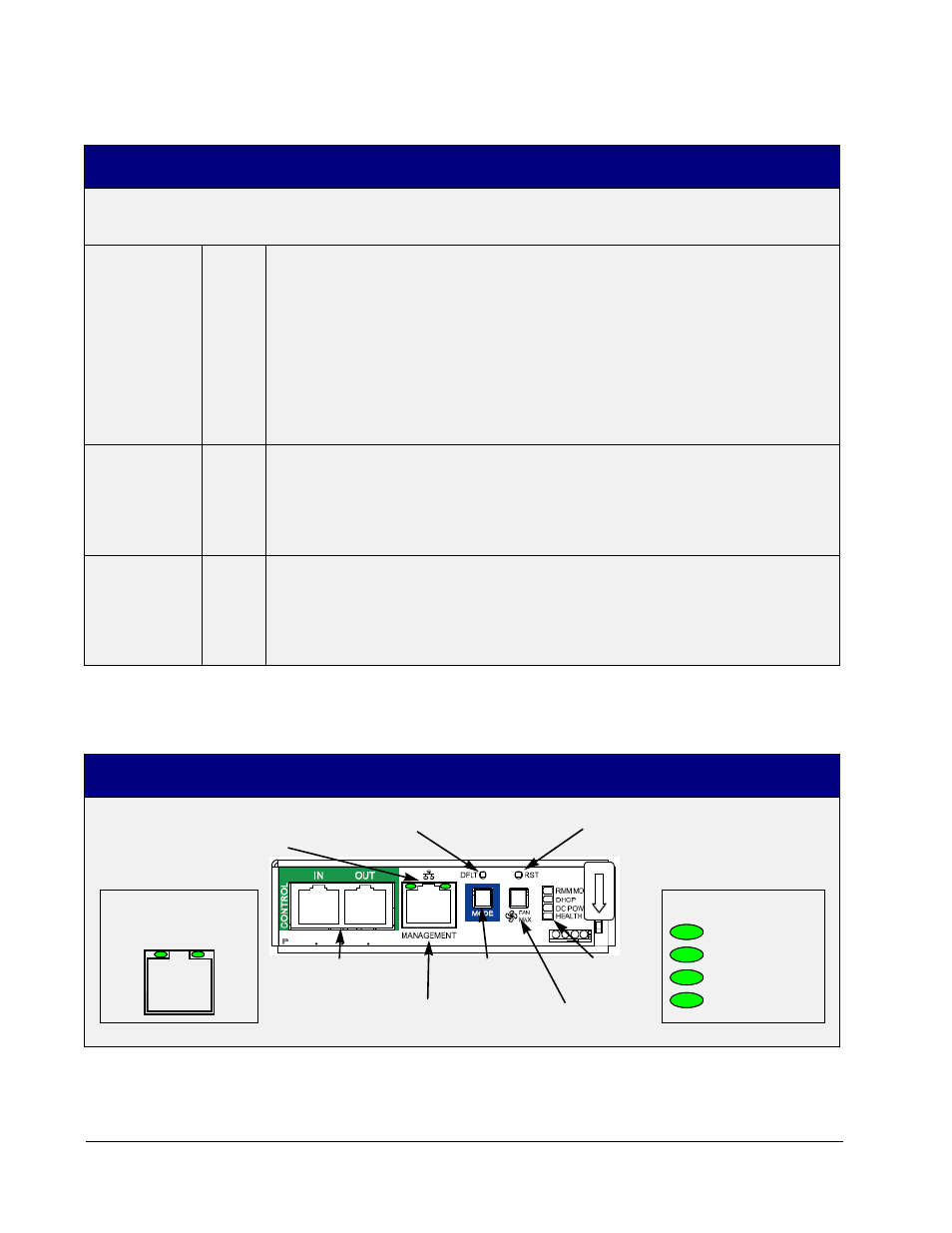

Table 8 R4300 Remote Management Module Features
RMM Reset
Control Chain
Connections
RMM Hardware
Reset Switch Default Switch
Ethernet
Connection
RMM Status Module
Mode Switch
Fan Mode
Switch
LEDs
RMM MODE
DHCP
DC POWER
HEALTH
RMM Status LEDs
ACTIVITY
Ethernet LEDs
LINK
Ethernet LEDs
