7. Pull straight back to remove the BackPack.
8. Install the BackPack by aligning it with the bottom of the Cage. Firmly insert the
BackPack.
9. Secure the BackPack to the Cage with the 2 screws.
10. Replace the fan pack.
11. Replace all the cables.
12. Slide all Blades fully back into the Cage.
13. Power up the Blades.

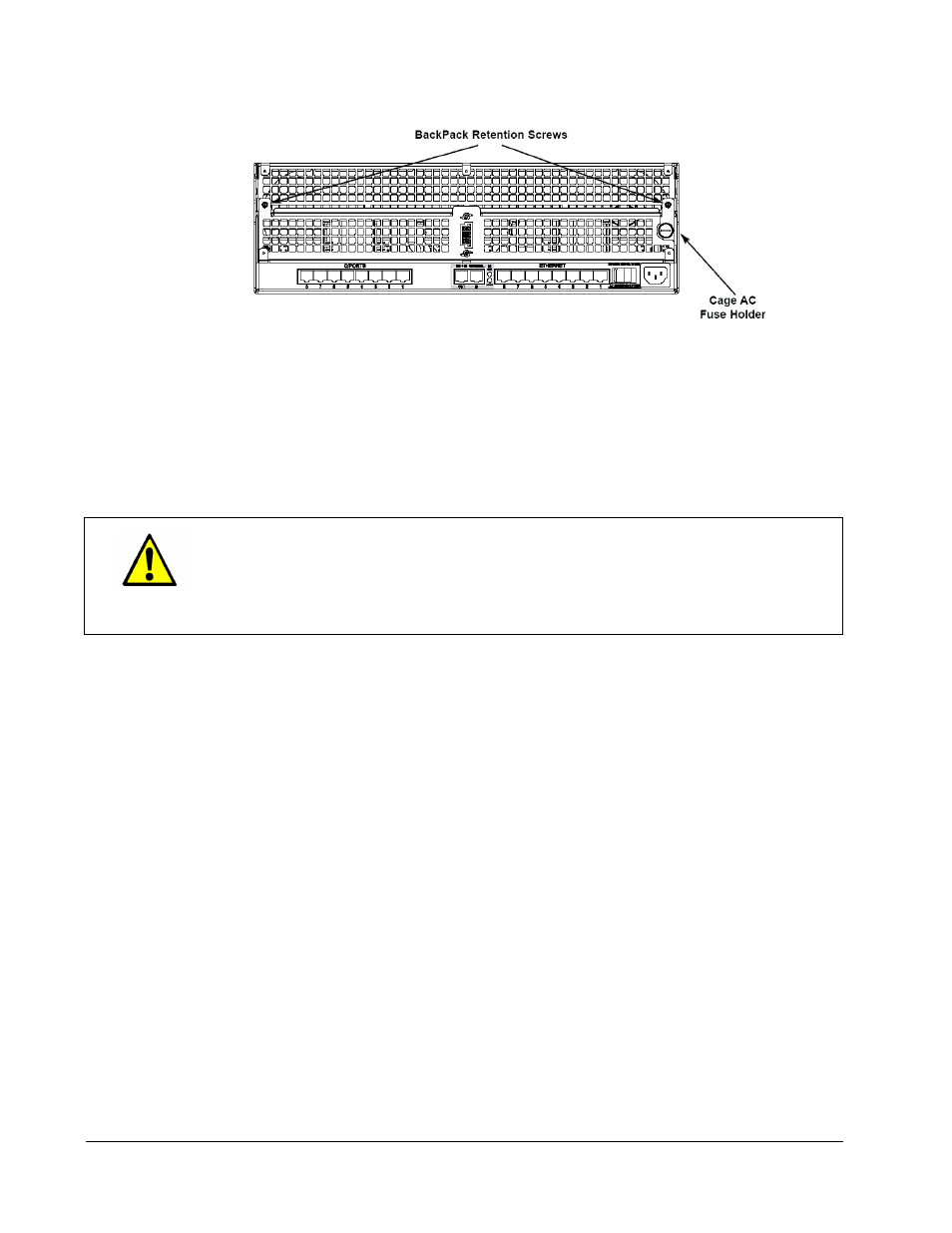

Figure 58 Cage with Fan Pack Removed (DCBP Shown)
CAUTION: Use only a 15 amp-rated AC power cord supplied by
ClearCube to power the replacement BackPack. Do NOT reuse any
existing 10 amp-rated cords that supplied power to the BackPacks you
are replacing. Older model BackPacks utilized 10 amp-rated power cords
that are NOT approved for use with current model BackPacks.
