Figure 32, Fiber transceiver/r4300 connection diagram (r4300), Cage – ClearCube R Series Pentium 4 User Manual

Page 83: Cage fiber transceiver

ClearCube Product Manual and Installation Guide

Cage and Blade Installation • 73

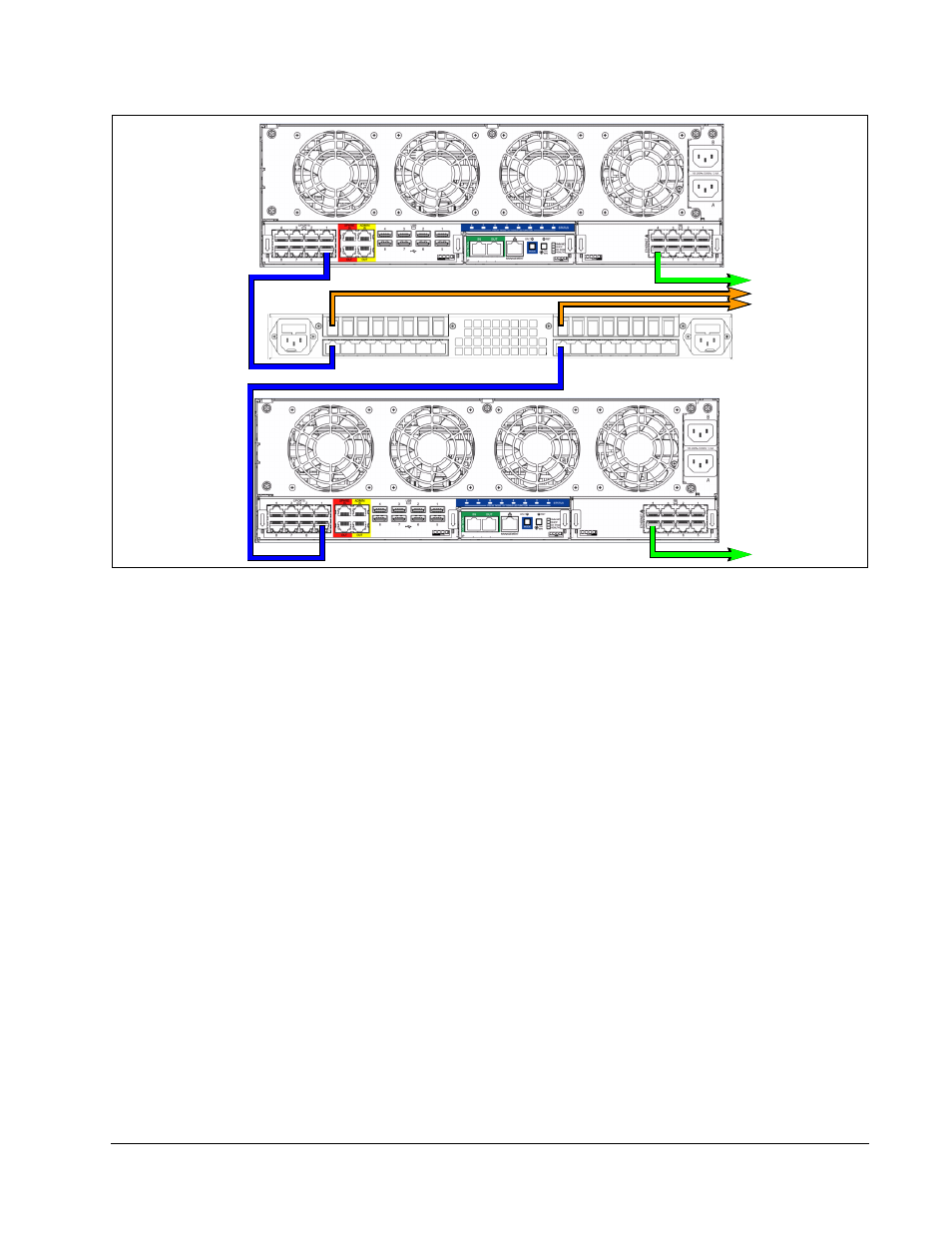

Figure 32 Fiber Transceiver/R4300 Connection Diagram (R4300)

Cage

Fiber

Transceiver

Ethernet Cable

Copper C/Port Cables < 10 m

62.5 Micron Fiber

Cable

to Fiber C/Ports
