104 • Hardware Upgrade and Replacement Procedures ClearCube Product Manual and Installation Guide
Other components such as the processor or motherboard are not intended for field
replacement. Removal voids your warranty. Contact Technical Support for assistance.
Upgrading Memory
Model R1200
To replace or upgrade the memory on the R1200, do the following:
1. Pull the tabs on either side of the memory socket apart to remove the module.
2. Carefully insert the new memory module into the socket, making sure that the
tabs snap inward securing the module in place.
NOTE: Both DIMM slots on the R1200 must be populated with memory modules of
equal size and speed.
Model R2100
The memory upgrade steps for the R2100 PC Blade are the same as above, but
because the memory architecture being interleaved, the memory modules must be
installed in matched pairs on each DDR bus.
DIMM slots U4 and U7 form the outer pair, U5 and U6 form the inner pair. The outer
pair must always be populated. The modules used in the inner pair do not have to
match the modules used in the outer pair, just within each pair.

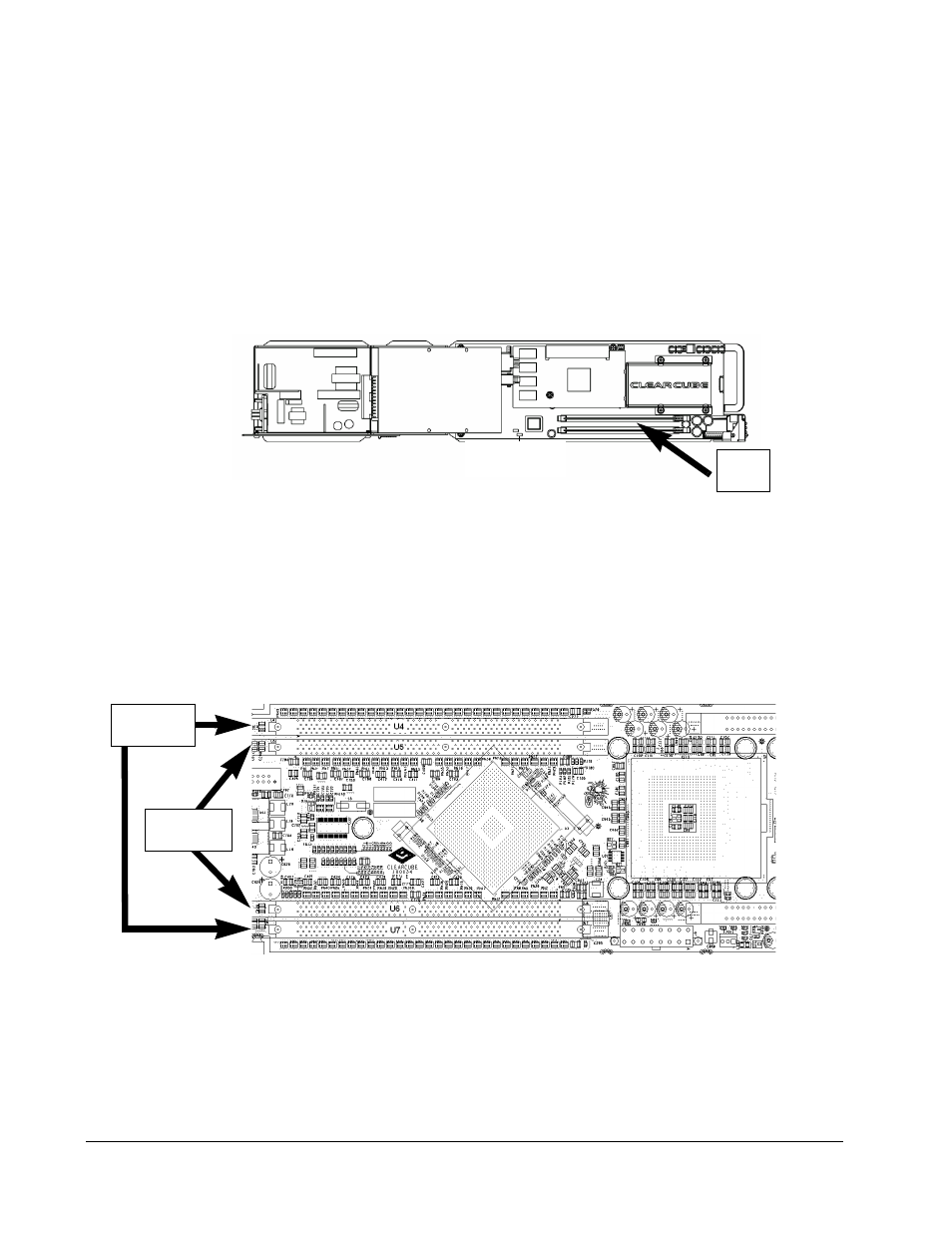

Figure 54 R1200 Memory Layout
Figure 55 R2100 Memory Installation Layout
DIMM
slots
May be
left empty
Must be
populated
