Chapter 4
Installing the Modules
4-5
ATTENTION: If you have any empty slots in the chassis,
install filler plates (5110-FP) in them. Otherwise, the modules
could be damaged. To install filler plates, see appendix A.
Many of the connections you make to the modules are made to connectors
that you wire. If you do not know how to wire these connectors, see
appendix A.
Important: Save the packing material in case you have to ship a module.
To install the power supply, complete the following tasks:
set the power supply operating voltage
install the power supply in the chassis
make connections to the power supply

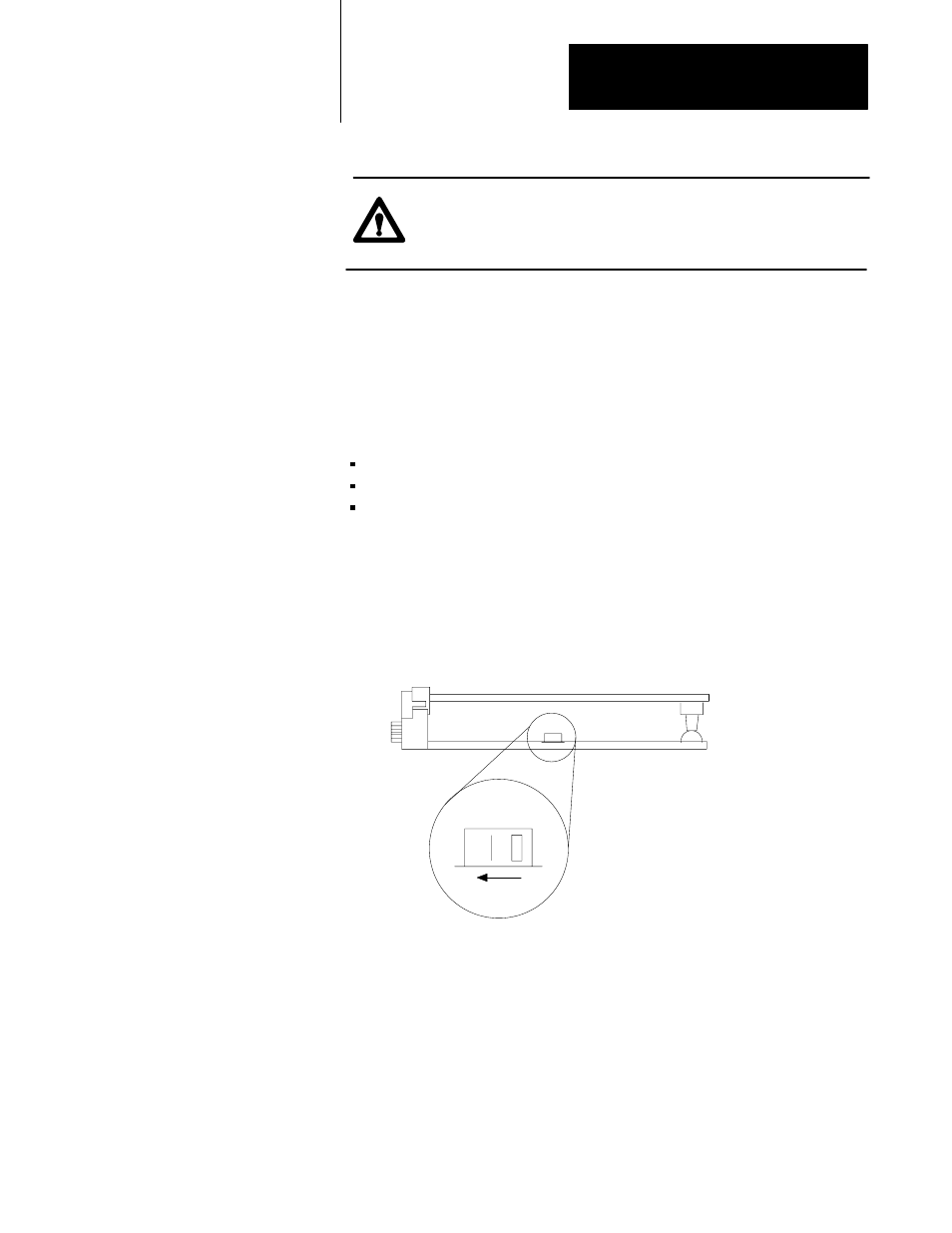

Set the Operating Voltage Switch (115 or 230V ac)
Follow the steps below to set the operating voltage.
Important: You do not have to remove any covers to set the
operating voltage.
115V
230V
(Front)
For 5120ĆP1/B
1. Locate the red voltage selector switch
inside the bottom of the power supply.
2. Set the switch to either 230V or 115V.
The switch is factory set at 230V ac.
(Bottom view)
17204
Install the Power Supply in the Chassis
The installation procedure for the power supply is similar to other PI
modules, see “Installing a PI Module in the Chassis” in appendix A to
install the power supply in the chassis.
Power Supply
