Rockwell Automation 5000,D50006.2.10 PI INSTALLATION MANUAL User Manual
Page 29
Chapter 2
Mounting the Components
2-7
4.
Return the panel to its enclosure:
a.
Scrape paint and other nonconductive finishes from the shoulder
studs on the back wall of the enclosure. Scrape clear an area at
least as large as the washer to be used.
b.

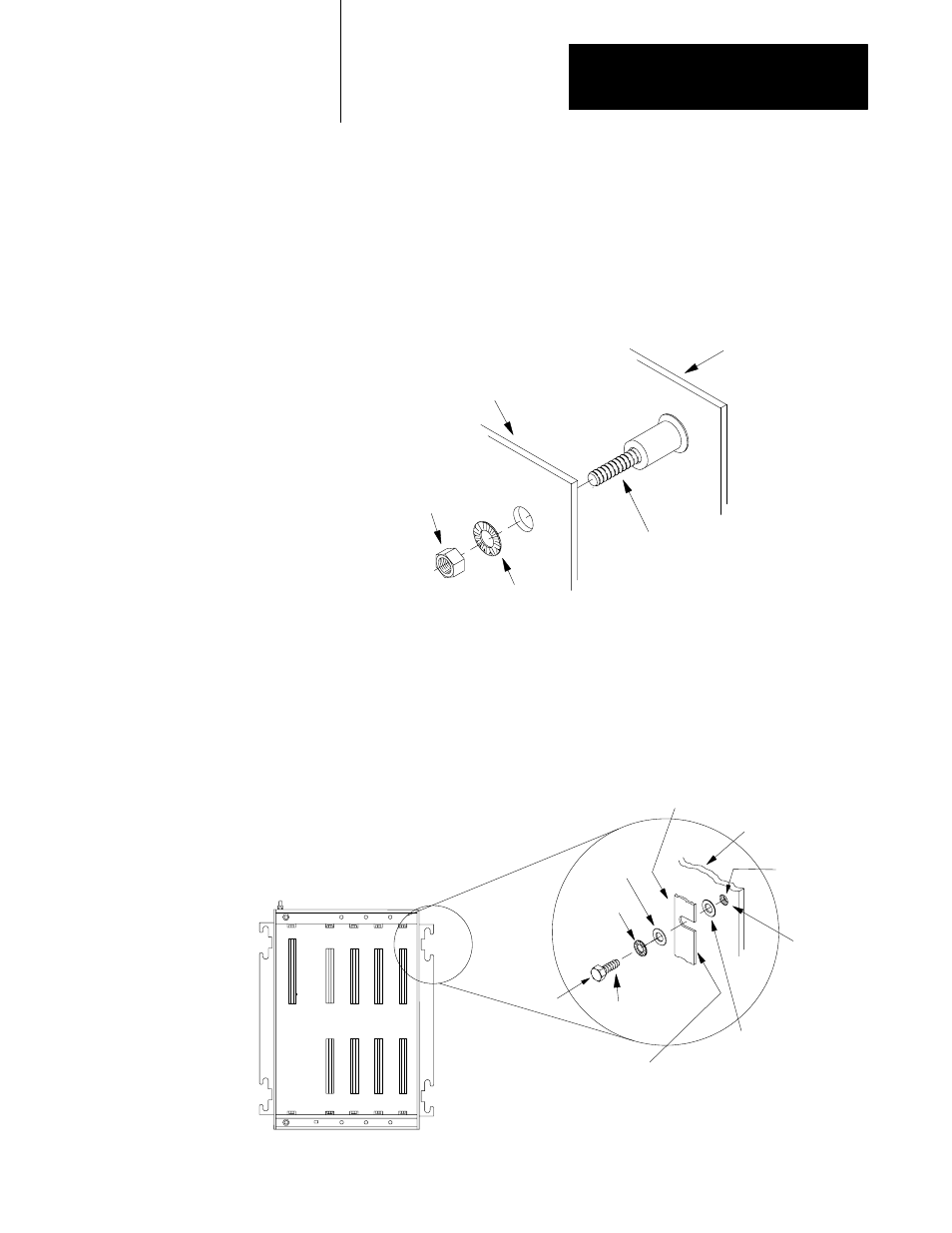

Attach the panel to the back wall of the enclosure as
shown here:
Panel
Nut
Star washer
Shoulder bolt on back
wall of enclosure
Back wall of
enclosure
13871
5.
Repeat this procedure for each component you mount:
a.
Position the component on the screws you have prepared for it
on the panel.
b.
Attach the component to the panel as shown below. Do not
tighten the nuts yet (you will tighten the nuts after you have
completed grounding the component).
Mounting bracket
#10Ć32 screw
Star
washer
16732
Flat
washer
Bolt
Flat
washer
Scrape paint
Tapped hole
Back panel
If the mounting bracket is coated with
a nonĆconductive material (anodized,
painted, etc.), scrape the material
around the mounting hole.
