Removing a pi module from the chassis – Rockwell Automation 5000,D50006.2.10 PI INSTALLATION MANUAL User Manual

Page 164

Installing and Removing a Module

Appendix A

A-8

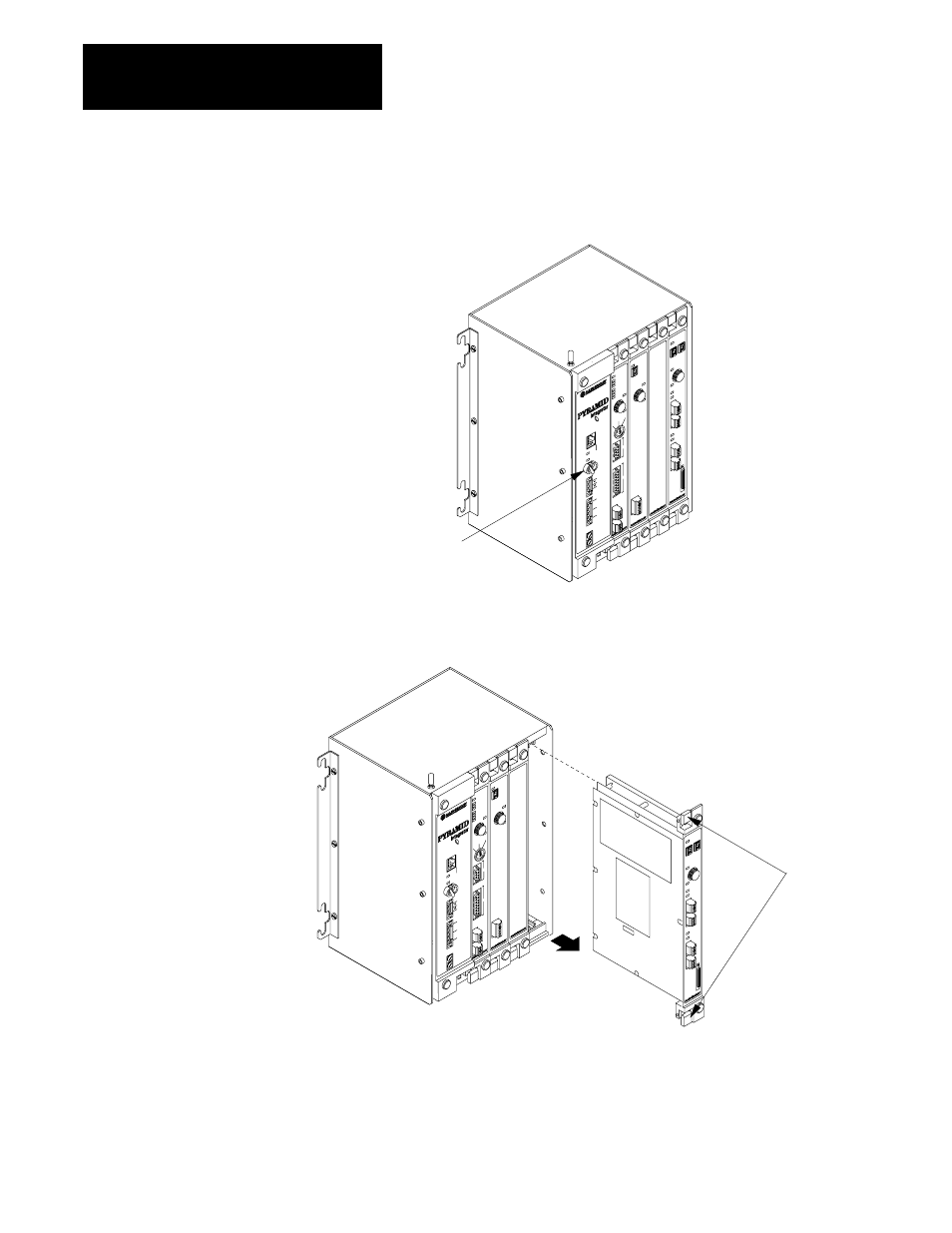

To remove a module from the chassis, follow the steps below.

1. Turn off the power supply.

Turn off the

power supply.

19792

2. Remove the module from the chassis.

a. Loosen the captive thumbscrews (pull the

thumbscrews toward you to make sure they

are not screwed into the chassis).

b. Pull the ejecting tabs toward you.

c. Slide the module out of the chassis.

Ejecting tabs

19796

3. If you are replacing a module, insert the new module into the chassis.

If you are not replacing the module, install a filler plate. See
page

Removing a PI Module from

the Chassis
