Disable inputs and outputs, Power supply, 10ć2 – Rockwell Automation 5000,D50006.2.10 PI INSTALLATION MANUAL User Manual
Page 125
Chapter 10
Connecting ac Power
10-2
To disable inputs and outputs, follow these steps:
ATTENTION: Disable outputs and inputs before connecting ac
power. If you do not, you may cause machine operation, which
could cause damage to machinery and personal injury.
1.
Pull down the wiring arm of each I/O module.
2.
Disconnect each RS connector.
3.
Put the keyswitch of the RM in Program Mode.
You connect the power supply to the:
devices you want disabled by the power interlock relay
ac line voltage
If you are not sure how to wire the supplied connectors of the power
supply, see appendix A.
Power Interlock Relay (Optional)
You can wire various devices to the power interlock relay. Check the
power supply documentation from your system designer to determine
which device you will be connecting (the maximum for this connection is
250V ac at 1 A).
To connect the power interlock relay, follow the steps below:
N/O
N/C
COM
19790

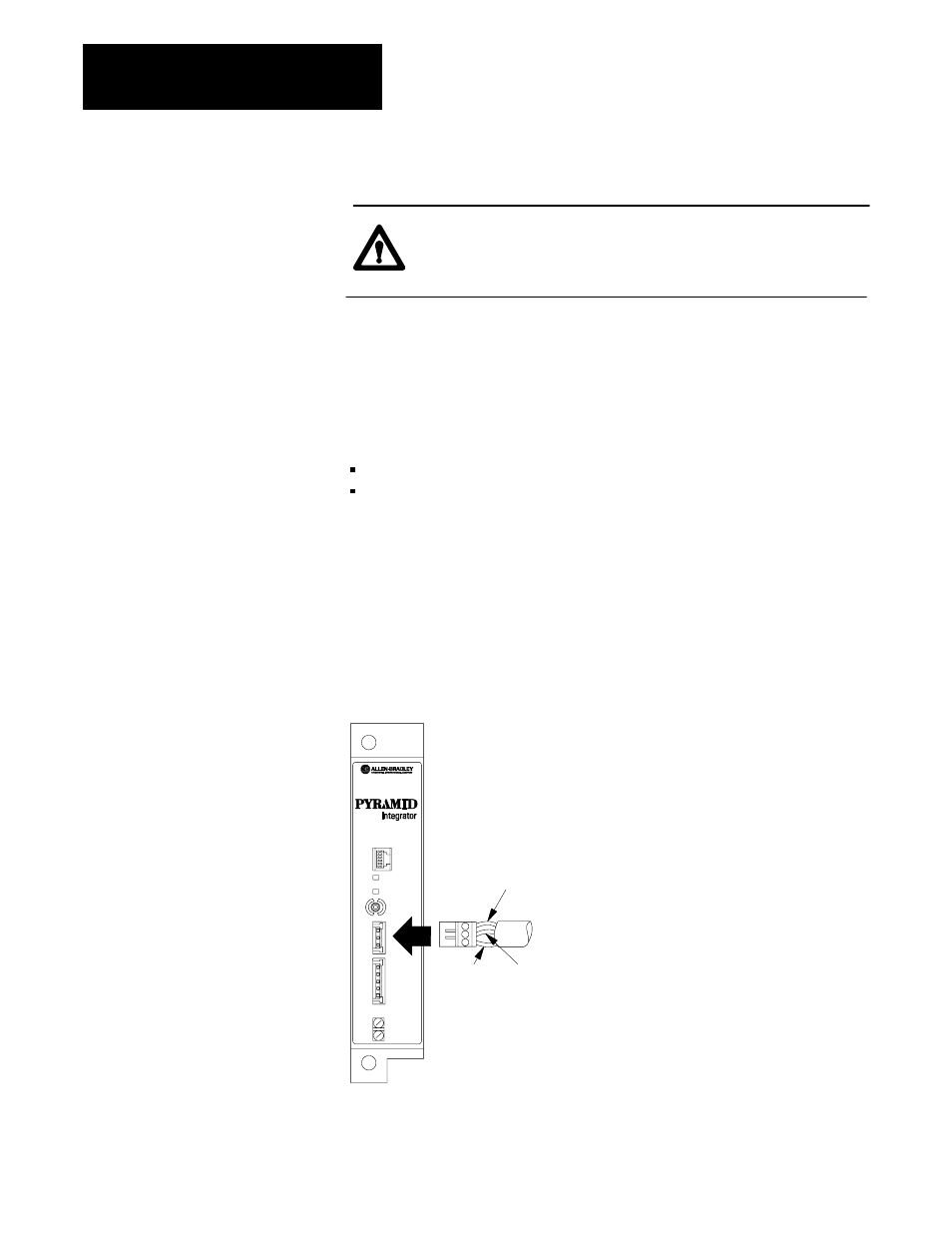

1. Wire the Interlock Relay connector as shown.
2. Attach the wired connector to the female connector labeled
Interlock Relay on the power supply.
3. Attach the other end of the cable as shown in the wiring
documentation from your system designer.
Disable Inputs and Outputs
Power Supply
