Chapter 2 Install the Kinetix 7000 Drive System

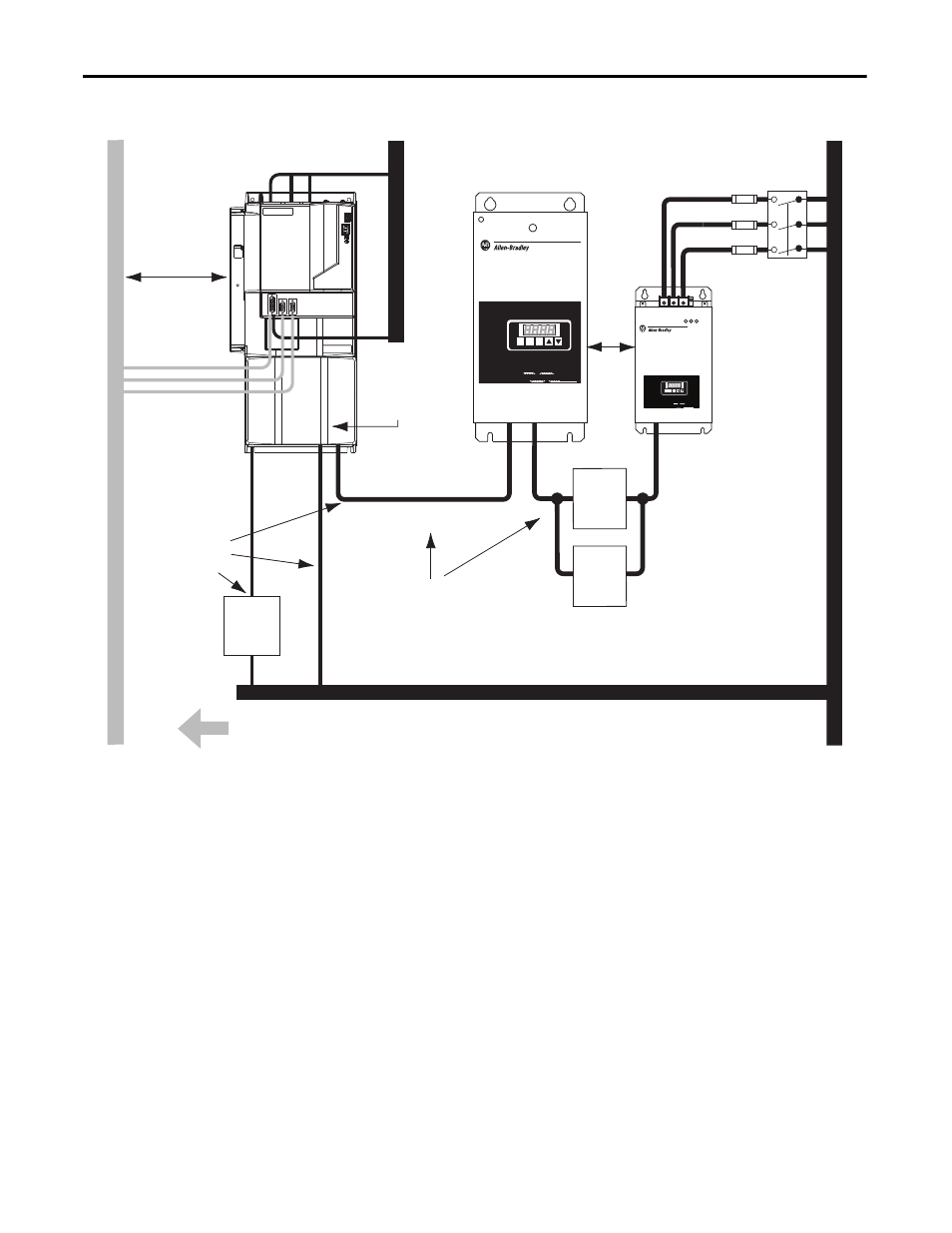

Figure 11 - Establishing Noise Zones (Regenerative Power Supply with Line Filter Unit)
C1
C1
D3
D2
R E G E N E R A T IV E P O W E R S U P P LY REGENERATIVE POWER SUPPLY
8720 8720 MC MC
RST PRG ENT
READY READY
FAULT FAULT
PROGRAM PROGRAM kW kW
V
A
VD
VD
D2
D1
VD
REGENERATIVE POWER S UPPLY
8 720 8 720 MC MC
R S T PRG ENT
READY READY FAUL FAULT PROGRAM PROGRAM kW kW V A
VD
VD
Route Encoder/Analog/Registration
Shielded Cable
Shielded Cable or
Conduit
Clean Wireway (Cx)
No sensitive
equipment within
150 mm (6.0 in.)
Dirty Wireway (Dx)
Shield Clamps
(beneath cover)
Motor Power
Shielded Cable
Line
Reactor
Registration I/O
24V DC
Kinetix 7000 Drive
24V DC I/O
Shielded Cable
GPIO, GPR, and SO Cables Dirty Wireway (Dx)
24V DC
Power
Supply
Keep very dirty connections as short as
possible and segregated (not in wireway)
Line
Fuses
Circuit
Breaker
8720MC-RPS190BM-HV2
Regenerative Power Supply
Encoder Feedback
DC Bus
≤
2 m (78.7 in.)
Line
Reactor
8720MC -LR10-100B
Line Reactors
8720MC-EF190-VB
EMC Line Filter
1.5 m
(5 ft)
