Chapter 5
Configure and Startup the Kinetix 7000 Drive System
Configure the Drive Modules
Follow these steps to configure the Kinetix 7000 drive.
1. Verify that there is no power applied to the drive and that the SERCOS
fiber-optic cables are plugged into the Tx and Rx connectors.
To verify your fiber-optic cable connections, refer to page
2. Set the base node address for the drive by setting the SERCOS Node
Address switch.
Valid node addresses are 01...99. The left hand switch sets the most
significant digit (MSD) and the right hand switch sets the least significant
digit (LSD).
Refer to the table and figure below for switch operation.
Table 48 - Node Addressing Switch Settings

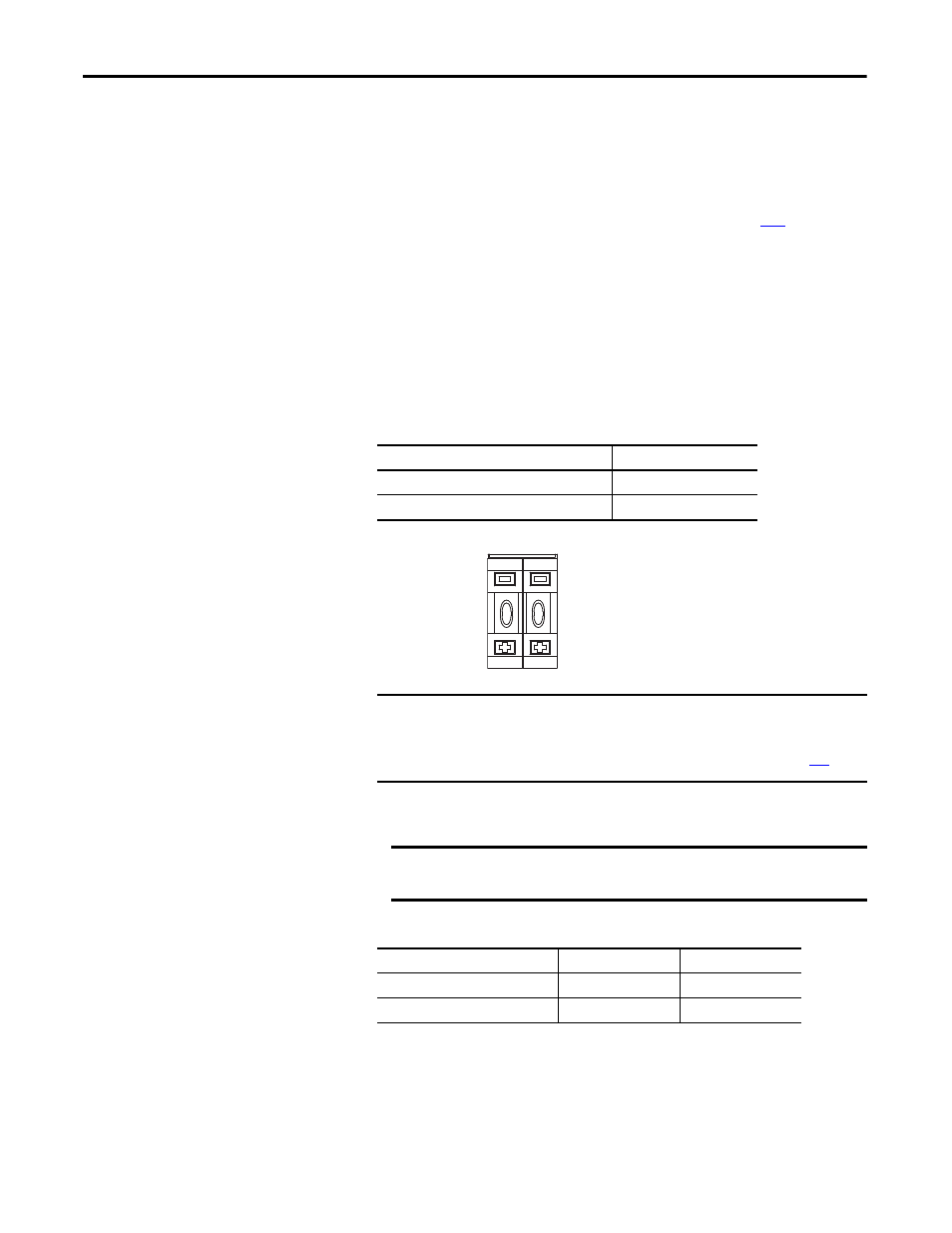

Figure 63 - N ode Addressing Switch Settings
3. Cycle control power to initialize the drive.
4. Set the SERCOS communications rate using DIP switches 2 and 3.
To
Press
Increment the (MSD/LSD) node address
The plus (+) switch.
Decrement the (MSD/LSD) node address
The minus (-) switch.
IMPORTANT
When two or more drives are connected to the same SERCOS interface
module, each node address must be unique.
Refer to the node addressing examples beginning on page
.
IMPORTANT
The base node address setting takes effect only after the drive is
initialized.
For This Communication Rate
Set Switch 2
Set Switch 3
4 Mbps
OFF
ON
8 Mbps
ON
OFF
Decrements MSD
MSD
Increments MSD
Decrements LSD
LSD
Increments LSD
