The Kinetix 7000 drive system shown in Figure 5 below illustrates a DC
common bus configuration with two follower Kinetix 7000 drives and an
8720MC regenerative power supply (RPS). The harmonic filter and varistor are
available separately, but are included when ordering the 8720MC-RPS065BM-
HV2 RPS unit. In full-line regenerative mode the 8720MC-RPS065BM-HV2
unit provides motoring power and regenerative power. In common bus mode,
you must calculate the total bus capacitance of your DC common bus system.
This allows you to plan your panel layout and sufficiently size the 8720MC-RPS
to precharge the entire system.

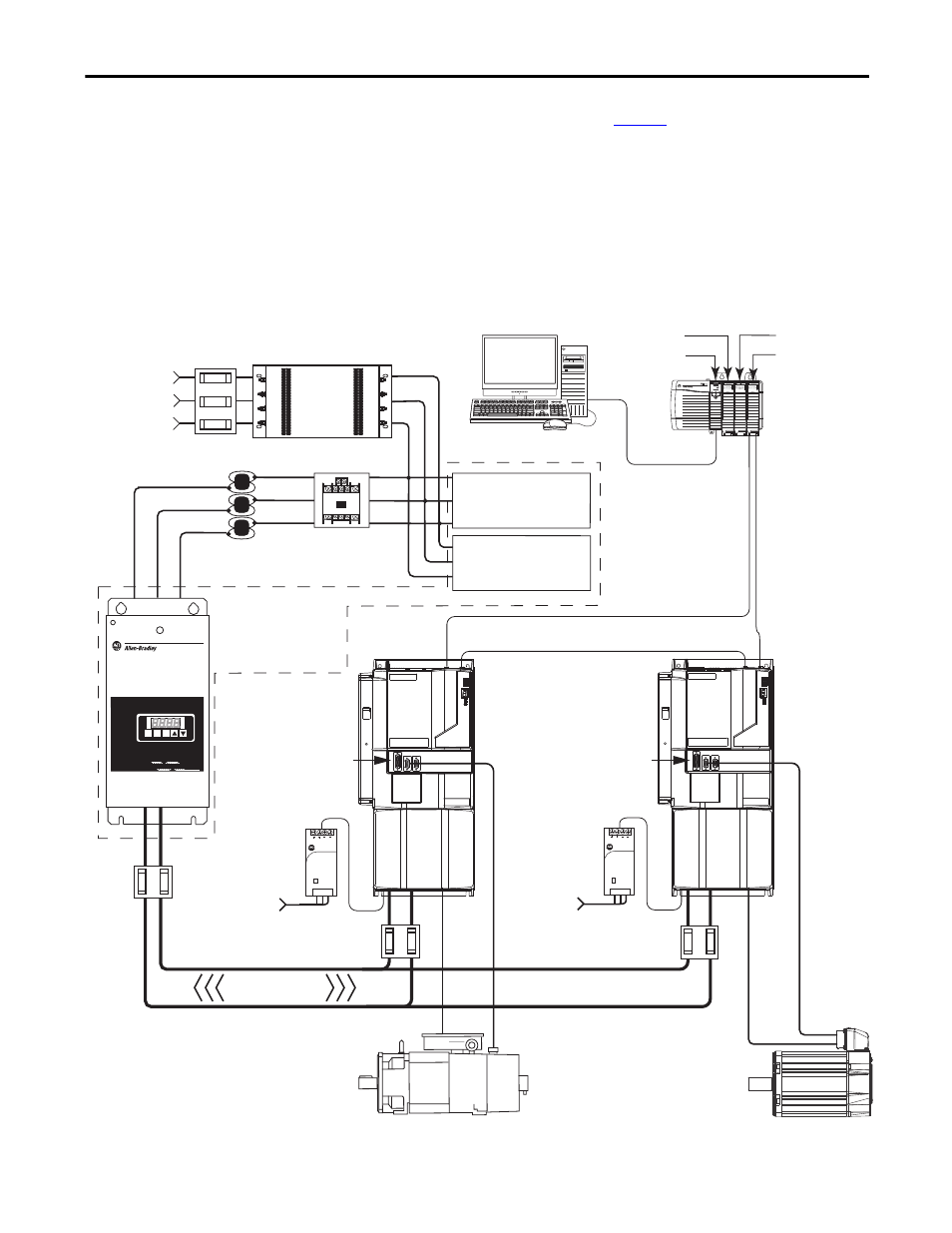

Figure 5 - Kinetix 7000 System Configuration with DC Input from 8720MC-RPS065 Providing Full-
line Regeneration
