Chapter 3

Installation and Wiring

Protect the Circuit Board from Contamination

The printed circuit boards of the modules must be protected from dirt, oil,
moisture, and other airborne contaminants. To protect these boards, we
recommend installing the system in an enclosure suitable for the environment.
Keep the interior of the enclosure should clean and the enclosure door closed
whenever possible.

Power Supply Distance

You can install as many modules as your power supply can support. However, the
module has a power supply distance rating of four, which means that it can not be
more than four modules away from the system power supply.

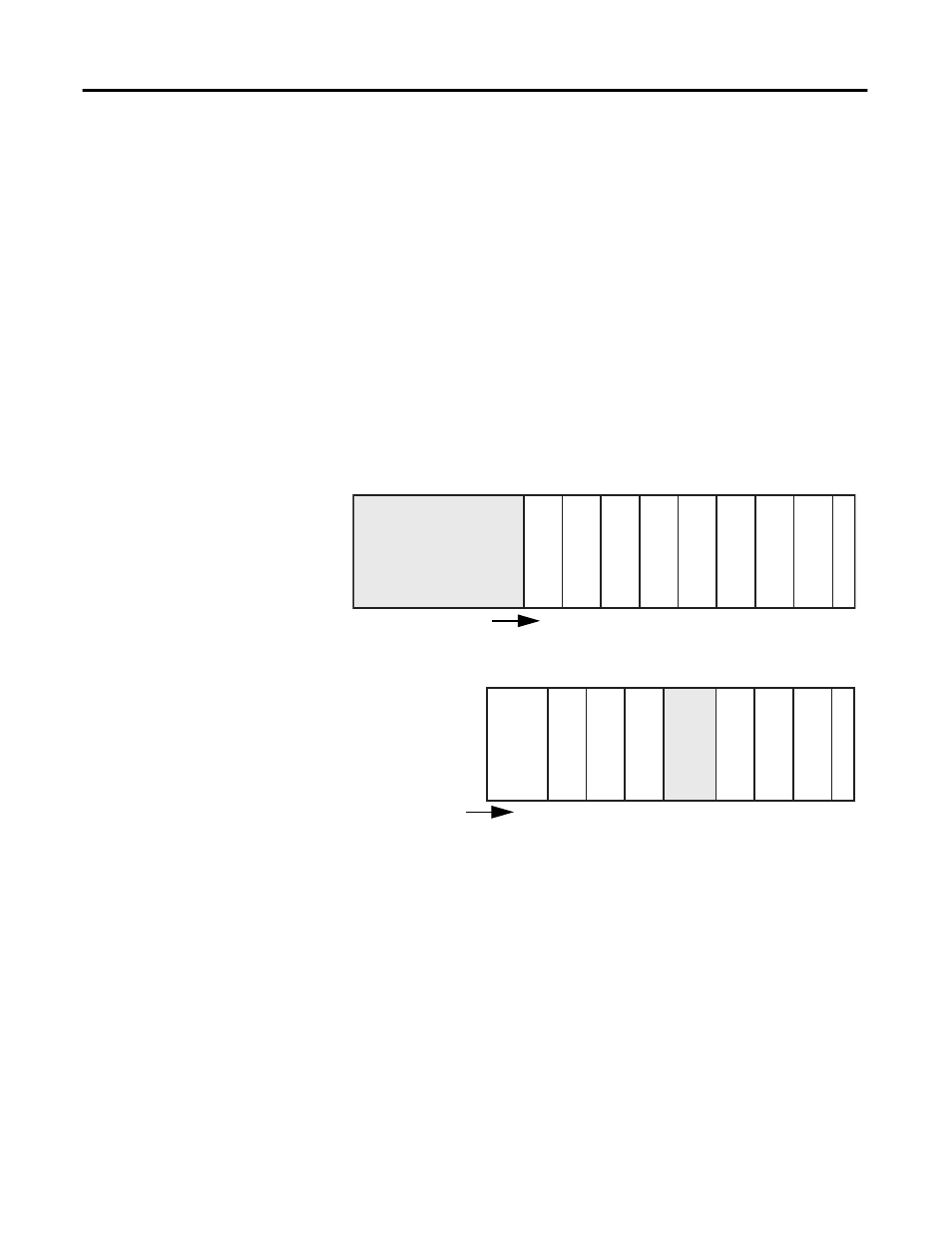

The illustration provides an example of determining power supply distance.

Compact

I/O

Compact

I/O

Compact

I/O

Compact

I/O

End

Cap

MicroLogix 1500 Controller

with Integrated System

Power Supply

System

Power

Supply

Compact

I/O

Compact

I/O

Compact

I/O

End

Cap

I/O

Communication

Adapter

Compact

I/O

Compact

I/O

Compact

I/O

Power Supply Distance

Compact

I/O

Compact

I/O

Compact

I/O

Compact

I/O

Power Supply Distance

45274
