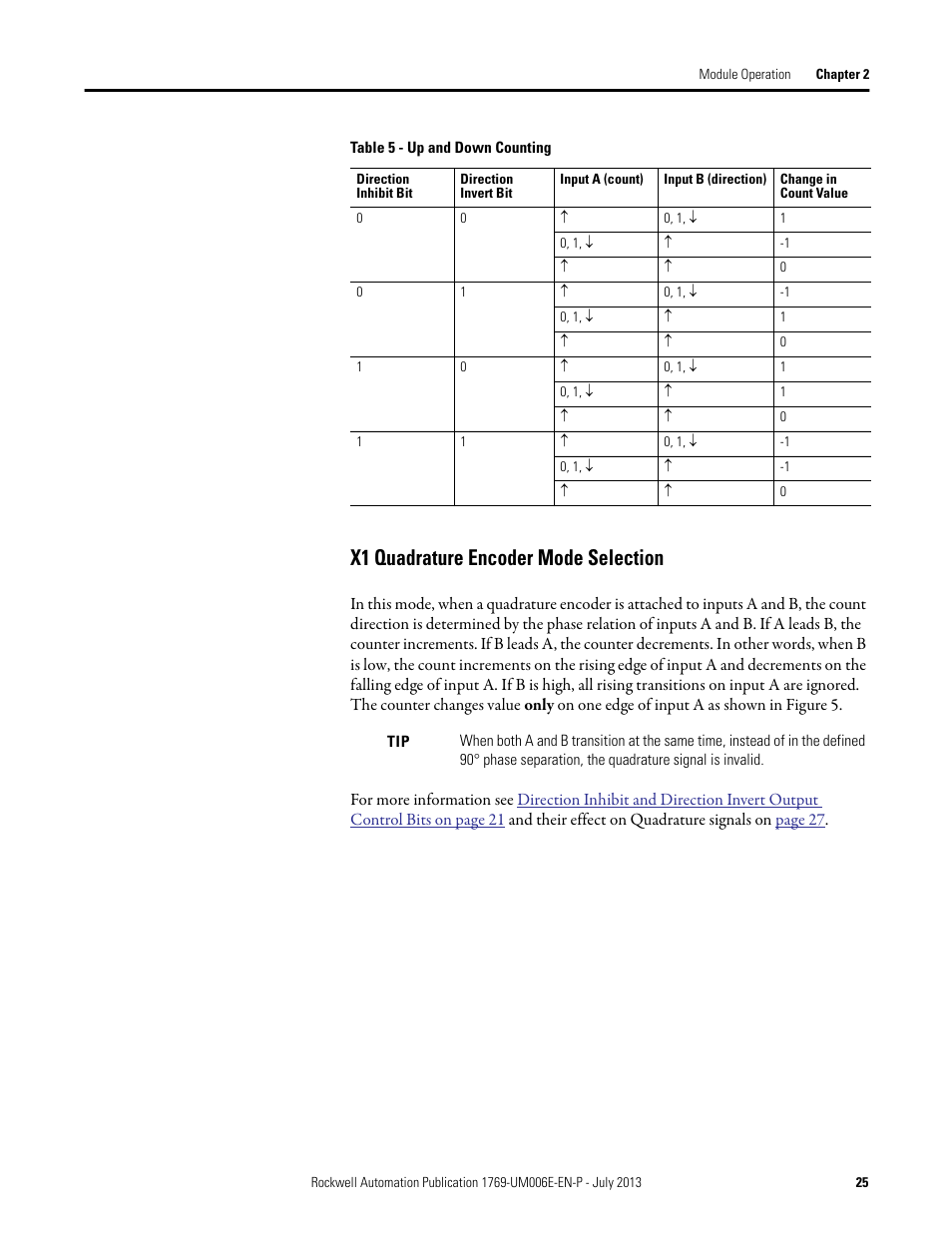

X1 quadrature encoder mode selection – Rockwell Automation 1769-HSC Compact High Speed Counter Module User Manual
Page 25
