Install the Module
Chapter 4
In the following two examples, the negative terminal of the sensor power supply
and that of the 1734 terminal base COMMON must be at the same potential.
Use of an external power supply limits diagnostics and increases susceptibility to
noise.
Guidelines for Wiring Safety Analog Inputs on page 65

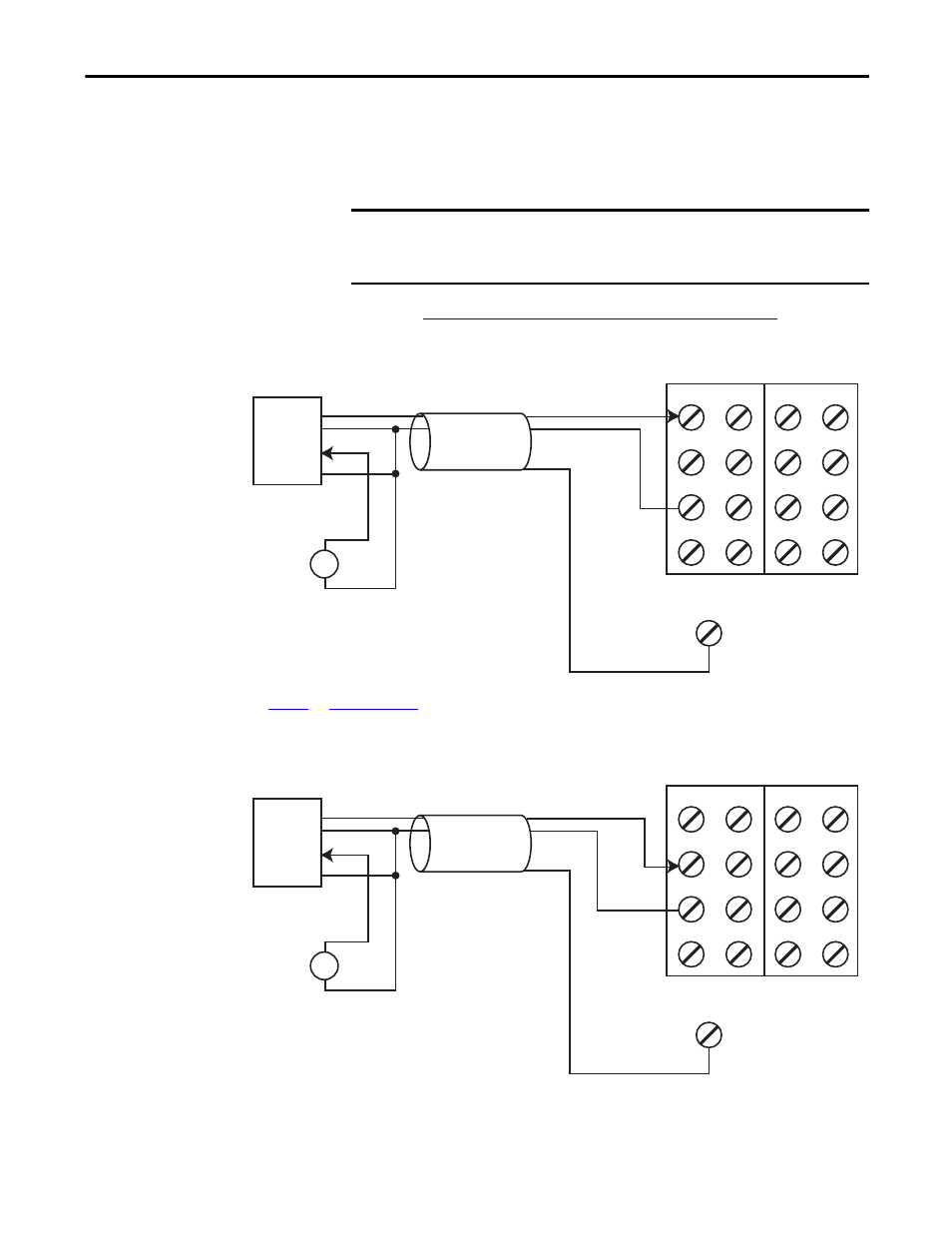

Figure 41 - 4-wire Voltage or Tachometer Sensor (SIL 2) with External Power Supply
Figure 42 - 4-wire Current Sensor (SIL 2) with External Power Supply
IMPORTANT
You are responsible for making sure that the sensor is receiving appropriate
power. Safety sensors that are not properly powered may not deliver accurate
signals to the analog input module.
