Install the Module
Chapter 4

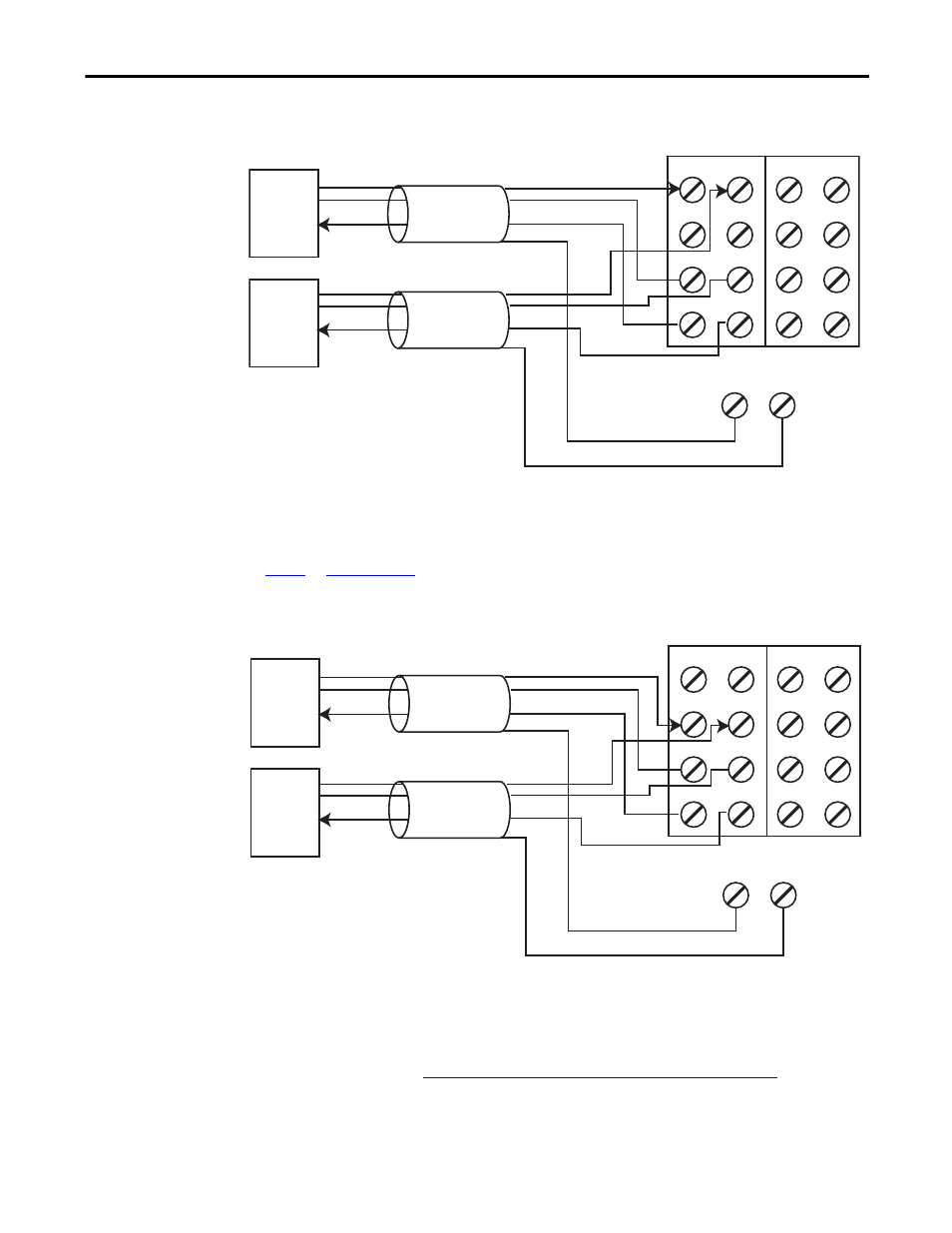

Figure 37 - 3-wire Voltage or Tachometer Sensor (SIL 3)
Figure 38 - 3-wire Current Sensor (SIL 3)
Guidelines for Wiring Safety Analog Inputs on page 65
V0
V1
V2
V3
I0
I1
I2
I3
COM
COM
COM
COM
S0
FE
S1
S2
S3
FE
This wiring configuration may also be used for SIL 2 redundant Tachometer mode.
For analog voltage-output sensors, the signal levels for operation for the application must be outside the signal level when the signal is not
present, for example, when the wire is broken.
Field sensors are monitoring the same signal in a redundant configuration.
You must configure a safety discrepancy deadband between the two signals to achieve SIL 3.
SIL 2
3-wire
Sensor
1734-TB Terminal Bases
Signal (V)
+24V
Cable Shield
Cable Shield
+24V
SIL 2
3-wire
Sensor
Signal (V)
Signal Return
Signal Return
See
and
for tachometer wiring detail.
V0
V1
V2
V3
I0
I1
I2
I3
COM
COM
COM
COM
S0
FE
S1
S2
S3
FE
For 0…20 mA analog current-output sensors, the signal levels for operation for the application must be outside the signal level when the signal
is not present, for example, when the wire is broken.
Field sensors are monitoring the same signal in a redundant configuration.
You must configure a safety discrepancy deadband between the two signals to achieve SIL 3.
SIL 2
3-wire
Sensor
1734-TB Terminal Bases
Signal (I)
+24V
Cable Shield
Cable Shield
+24V
SIL 2
3-wire
Sensor
Signal (I)
Signal Return
Signal Return
