Rockwell Automation Publication 1734-UM013J-EN-P - July 2014
111
Configure the Module for a SmartGuard Controller
Chapter 6

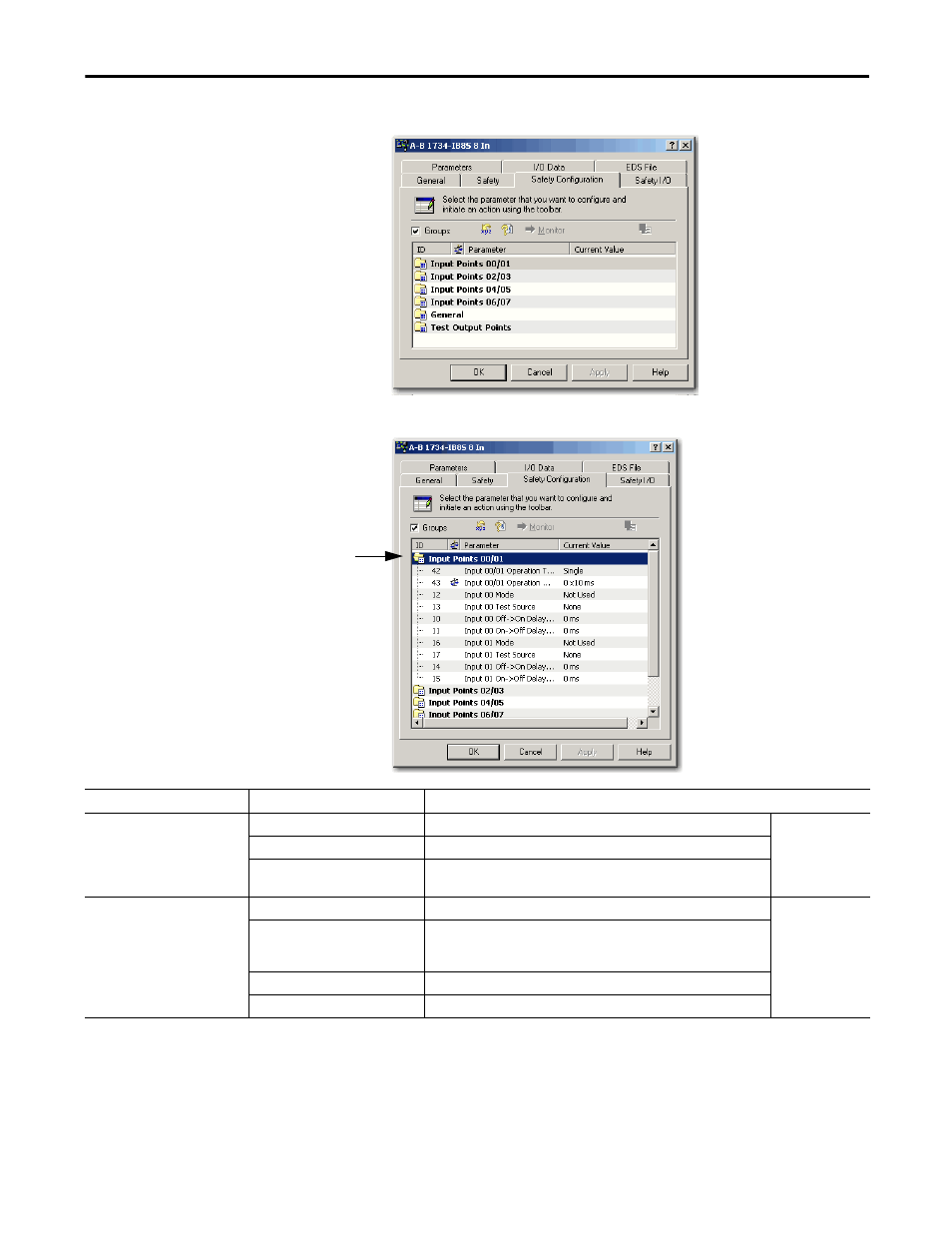

2. Click the Safety Configuration tab.
3. Double-click each set of input points to edit their configuration.
Parameter Name
Value
Description
Default
Input Point Operation Type
Single Channel
Use as single channel.
Single
Dual-channel Equivalent
Use as dual-channel. Normal when both channels are ON or OFF.
Dual-channel Complementary
Use as dual-channel. Normal when one channel is ON and the other channel is
OFF.
Input Point Mode
Not Used
External input device is not connected.
Not Used
Safety Pulse Test
Use with a contact output device and in combination with a test output. Using
this setting, short-circuits between input signal lines and the power supply
(positive side) and short-circuits between input signal lines can be detected.
Safety
A solid-state output safety sensor is connected.
Standard
A standard device, such as a reset switch, is connected.
