Connection details – Rockwell Automation 1734-IE4S POINT Guard I/O Safety Modules User Manual User Manual
Page 60
60
Rockwell Automation Publication 1734-UM013J-EN-P - July 2014
Chapter 4
Install the Module

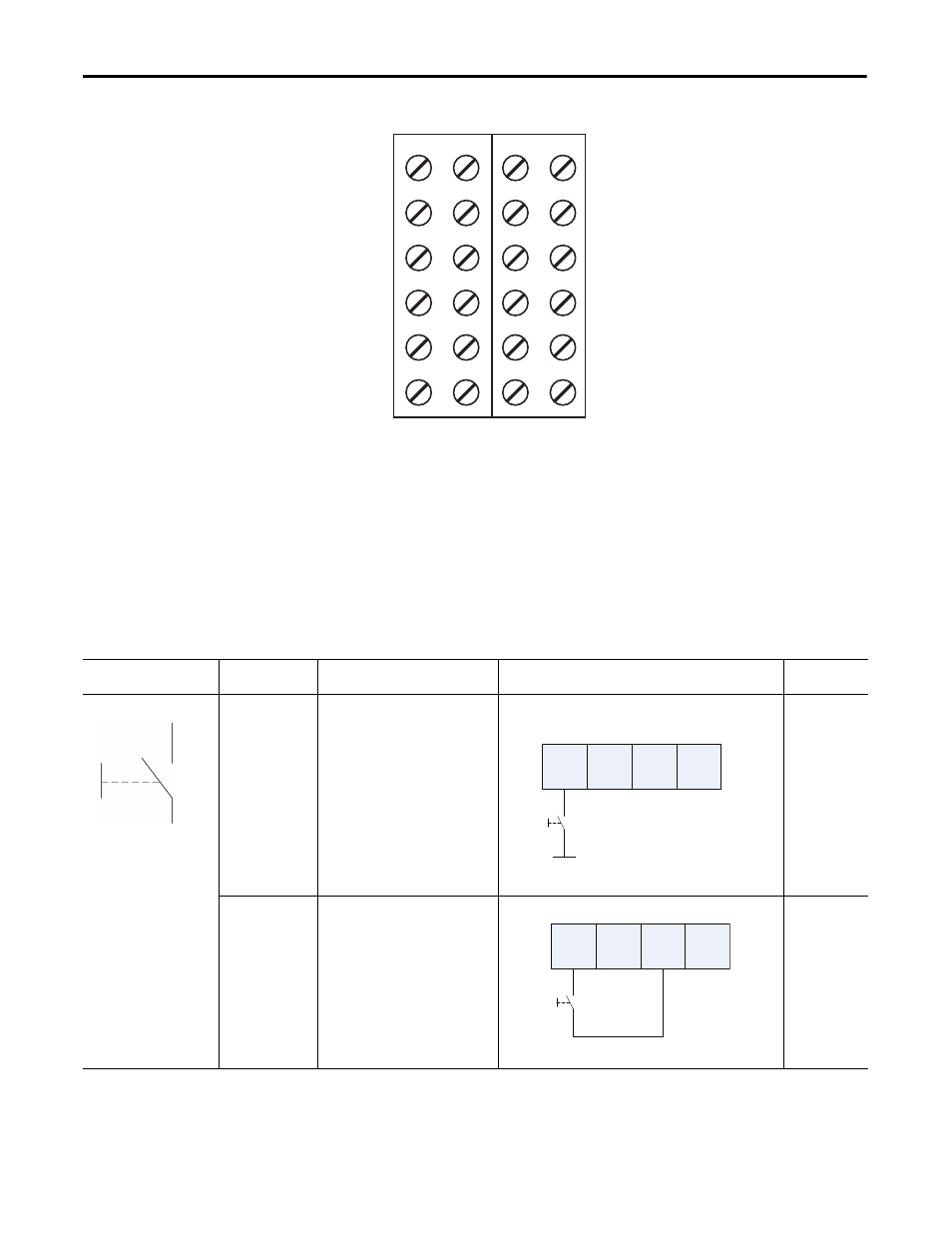

Figure 27 - 1734-IE4S Field Connections
Connection Details
See the tables that show input device connection methods and their safety
categories.
V0
V1
V2
V3
I0
I1
I2
I3
COM
COM
COM
COM
COM
COM
COM
COM
S0
S1
S2
S3
S0
S1
S2
S3
1734-TOP3 Base
Shown
Where:
V0…V3 = Voltage inputs 0…3
I0…I3 = Current inputs 0…3
COM = Supply Common
S0…S3 = Sensor power terminals
Connected Device
Test Pulse from
Test Output
Connection
Schematic Diagram
Safety
Category
Push Button
No
Connect the push button between 24V
DC and I0.
1
Yes
Connect the push button between I0
and T0. T0 must be configured as test
pulse.
2
I0
I1
T0
T1
24V DC
I0
I1
T0
T1
