178 Rockwell Automation Publication 1734-UM013J-EN-P - July 2014
Appendix C Specifications

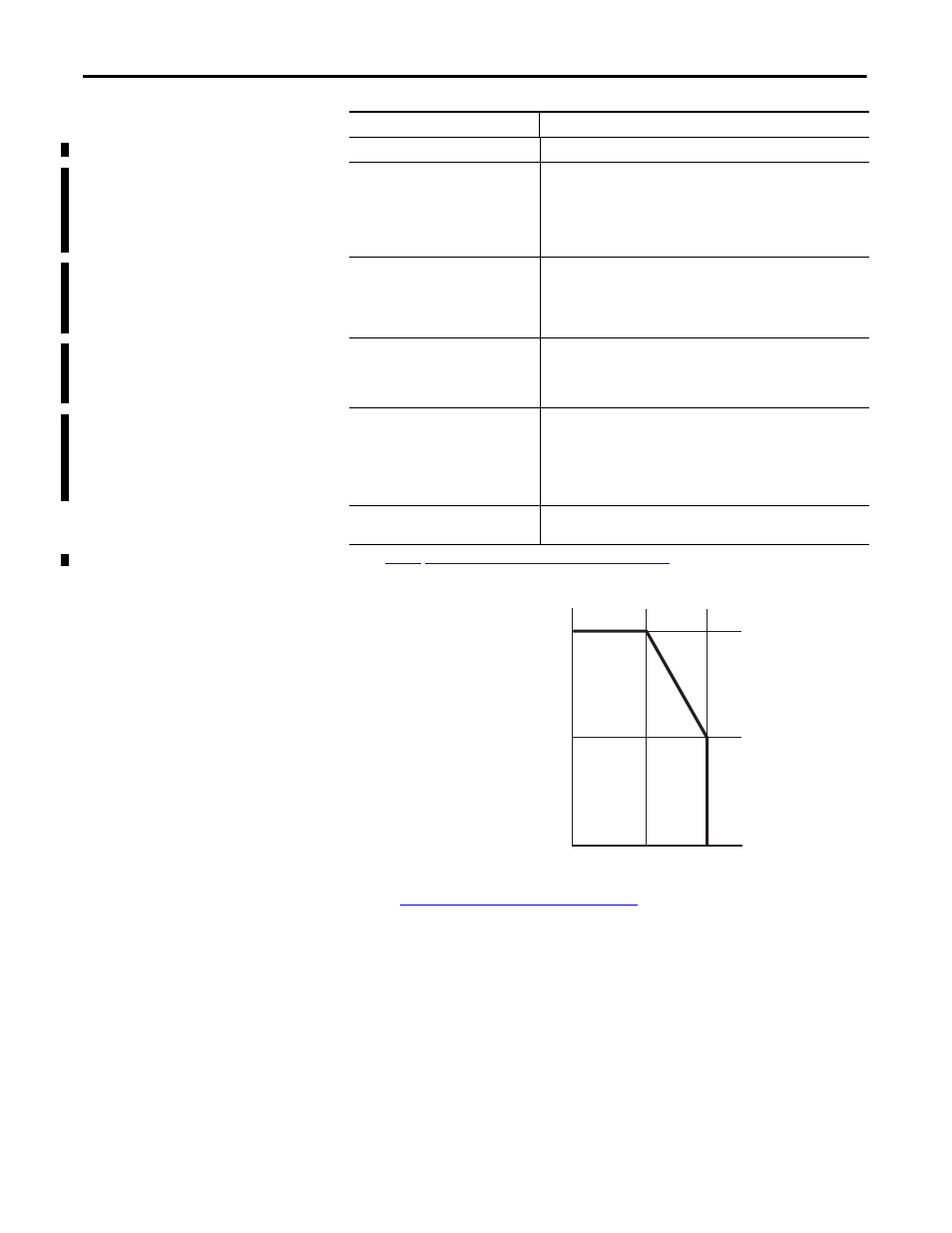

Figure 59 - System Temperature Derating When a 1734-IE4S Module Is Used
Emissions CISPR 11 (IEC 61000-6-4): Class A
ESD immunity IEC 61000-4-2:
4 kV contact discharges (1734-IB8S, Series B and 1734-OB8S, Series B
only)
6 kV contact discharges (1734-IB8S, Series A; 1734-OB8S, Series A; and
1734-IE4S)
8 kV air discharges (all modules)
Radiated RF immunity IEC 61000-4-3:
10V/m with 1kHz sine-wave 80% AM from 80…2000 MHz
10V/m with 200 Hz 50% Pulse 100% AM at 900 MHz
10V/m with 200 Hz 50% Pulse 100% AM at 1890 MHz
3V/m with 1 kHz sine-wave 80% AM from 2000…2700 MHz
EFT/B immunity IEC 61000-4-4:
±3 kV @ 5 kHz on power ports (1734-IE4S only)
±3 kV @ 5 kHz shielded on signal ports (1734-IE4S only)
±3 kV @ 5 kHz on signal ports (1734-IB8S, 1734-OB8S only)
Surge transient immunity IEC 61000-4-5:
±1 kV line-line (DM) and ±2 kV line-earth (CM) on signal ports
(1734-IB8S and 1734-OB8S only)
± 1 kV line-line (DM) and ±2 kV line-earth (CM) on power ports
(1734-IE4S only)
±2 kV line-earth (CM) on shielded ports (1734-IE4S only)
Conducted RF immunity IEC 61000-4-6:
10V rms with 1 kHz sine-wave 80% AM from 150 kHz…80 MHz
(1) See Figure 59 , System Temperature Derating When a 1734-IE4S Module Is Used .
Attribute Value
1.2 W/cm
(3 W /in.)
0.8W/cm
(2 W /in.)
-20°C
(-4 °F)
40°C
(104 °F)
55°C
(131°F)
See Placing Series A Digital and Analog Modules on page 48 for examples.
