Rockwell Automation Publication 20Y-UM001E-EN-P - July 2014 149
HIM Overview Appendix B
Viewing and Editing
Parameters LCD HIM
Numeric Keypad Shortcut
When using a HIM with a numeric keypad, press the key and key
to access the parameter by typing its number.
Removing/Installing the HIM The HIM can be removed or installed while the AFE is powered.

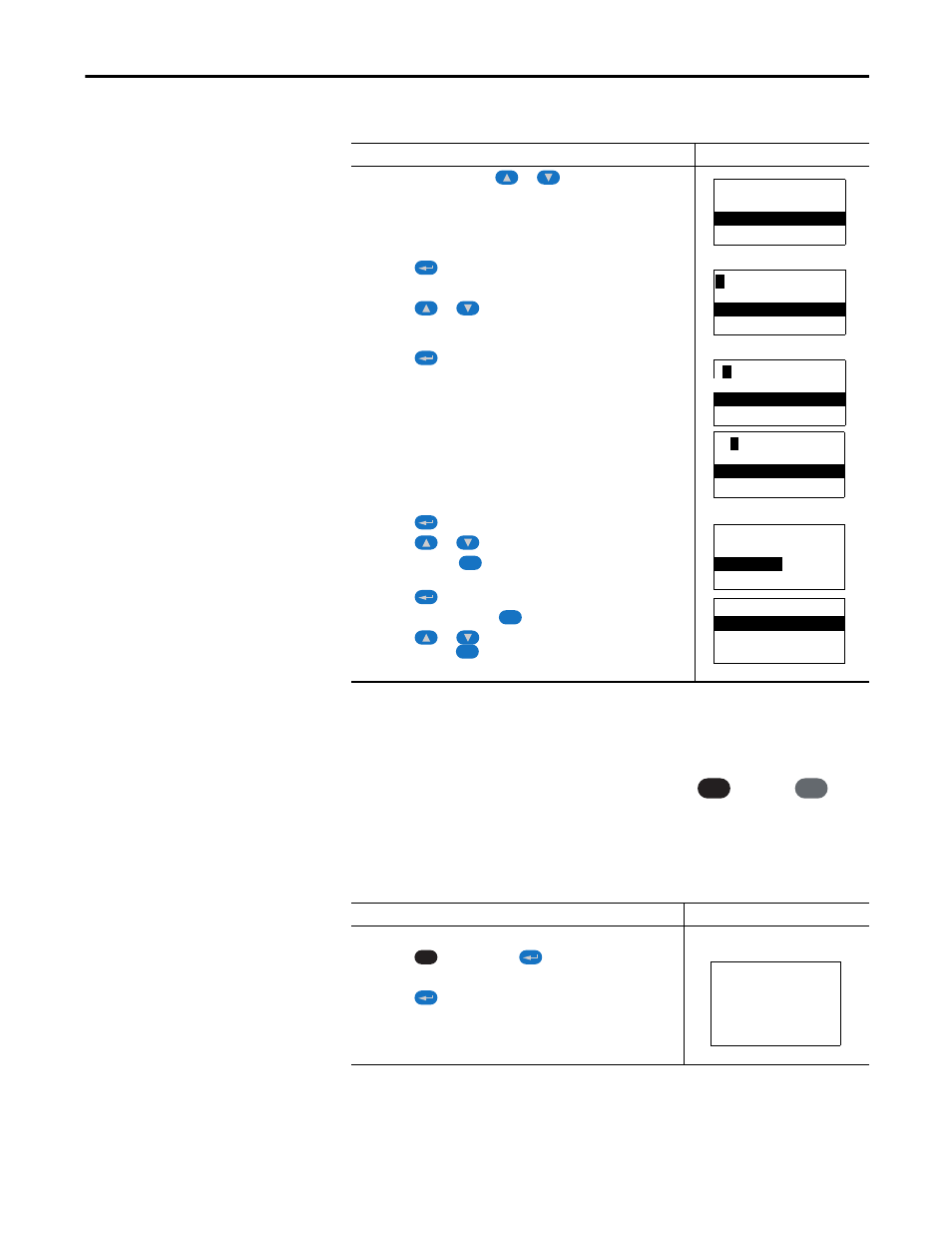

Step Example Screen
1. In the Main Menu, press the or key to scroll to Parameter.
2. Press the (Enter) key.
FGP File appears on the top line and the first three files appear below it.
3. Press the or key to scroll through the files.
4. Press the (Enter) key to select a file.
The groups in the file are displayed under it.
5. Repeat steps 3 and 4 to select a group and then a parameter.
The parameter value screen will appear.
6. Press the (Enter) key to edit the parameter.
7. Press the or key to change the value.
If desired, press the key to move from digit to digit, letter to letter,
or bit to bit. The digit or bit that can be changed is highlighted.
8. Press the (Enter) key to save the value.
To cancel a change, press the key to escape.
9. Press the or key to scroll through the parameters in the
group, or press the key to return to the group list.
Main Menu:
Diagnostics
Parameter
Device Select
F GP: File
Monitor
Dynamic Control
Utility
F G P: Group
Control Modes
Voltage Loop
Limits
FG P : Parameter
DC Volt Ref Sel
DC Volt Ref
Sel
Esc
Esc
FGP: Par 61
DC Volt Ref
712.8 VDC
583 < > 842
FGP: Par 61
DC Volt Ref
700.0 VDC
583 < > 842
ALT +/–
Step Example Displays
To remove the HIM, do the following.
1. Press the key and then the (Enter) key.
The Remove HIM configuration screen appears.
2. Press the (Enter) key to confirm that you want to remove the
HIM.
3. Remove the HIM from the AFE.
To install the HIM, insert it into the AFE or connect its cable to the AFE.
ALT
- Remove HIM -
Do you wish to
continue?
Press Enter
