Configuring the Profibus Scanner 4-7

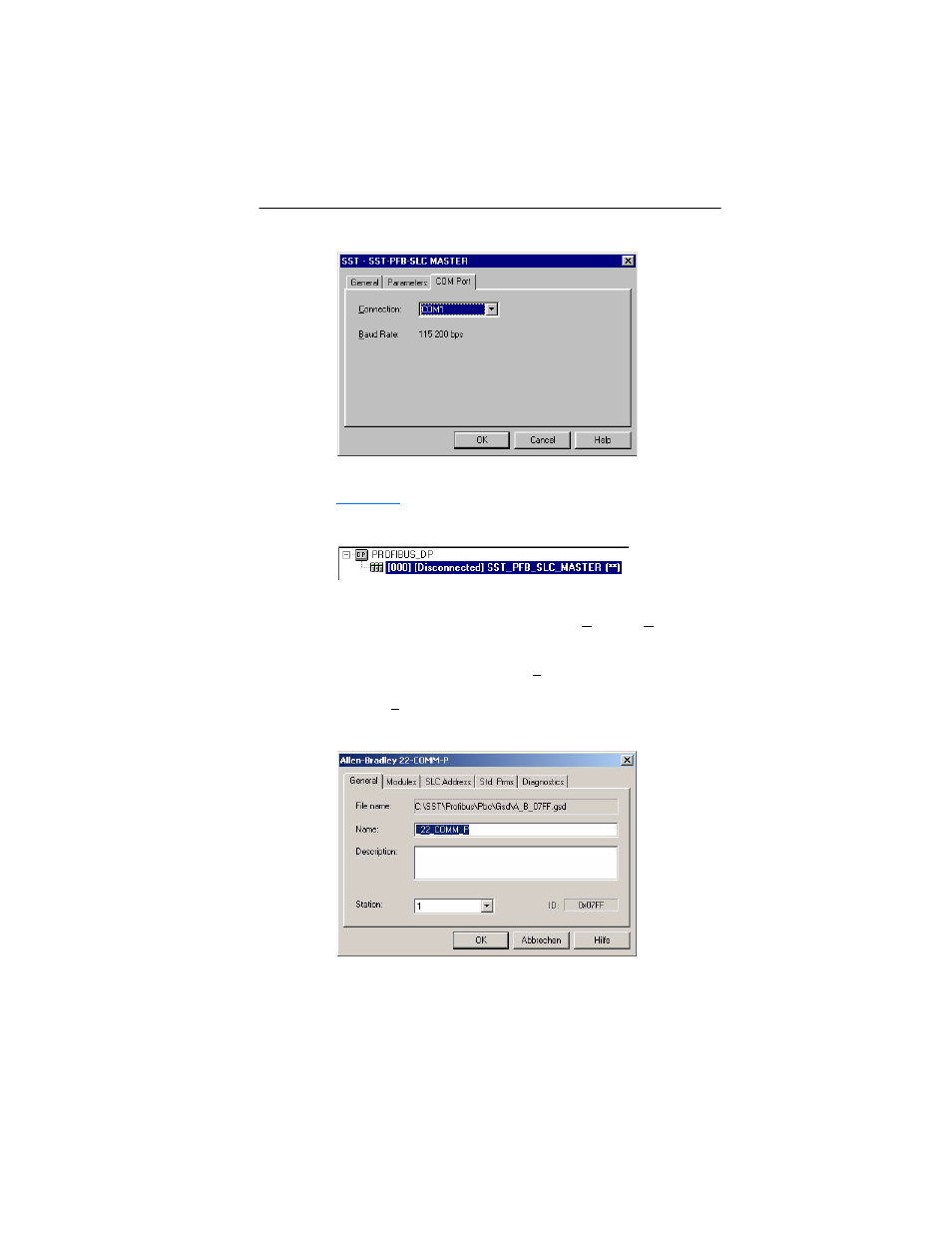

Figure 4.9 COM Port Default Settings
8. The scanner will appear in the network window as shown in
Figure 4.10 . Double-click on the scanner in the network window.
Figure 4.10 Scanner Network Window
9. Double-click on the 22-COMM-P listed in the Allen-Bradley
22-COMM-P library folder. A user-defined Name and Description
can be given to this 22-COMM-P.
In our example, this device will be Station 1 on the network. Other
stations may be chosen by using the arrow to display a drop-down
list in the Station window.
Figure 4.11 Allen-Bradley Library Dialog Box
Logic Command/Status, Reference/Feedback and Parameter Access
(Parameter Data) modules are added using the Modules tab.
