Metal Sales Seam-Loc 24 Installation - Manual (Page 61)

© Metal Sales Manufacturing Corporation/ Subject to change without notice/ Effective Date 12/03
800.406.7387 (Corporate Office) • www.metalsales.us.com
60

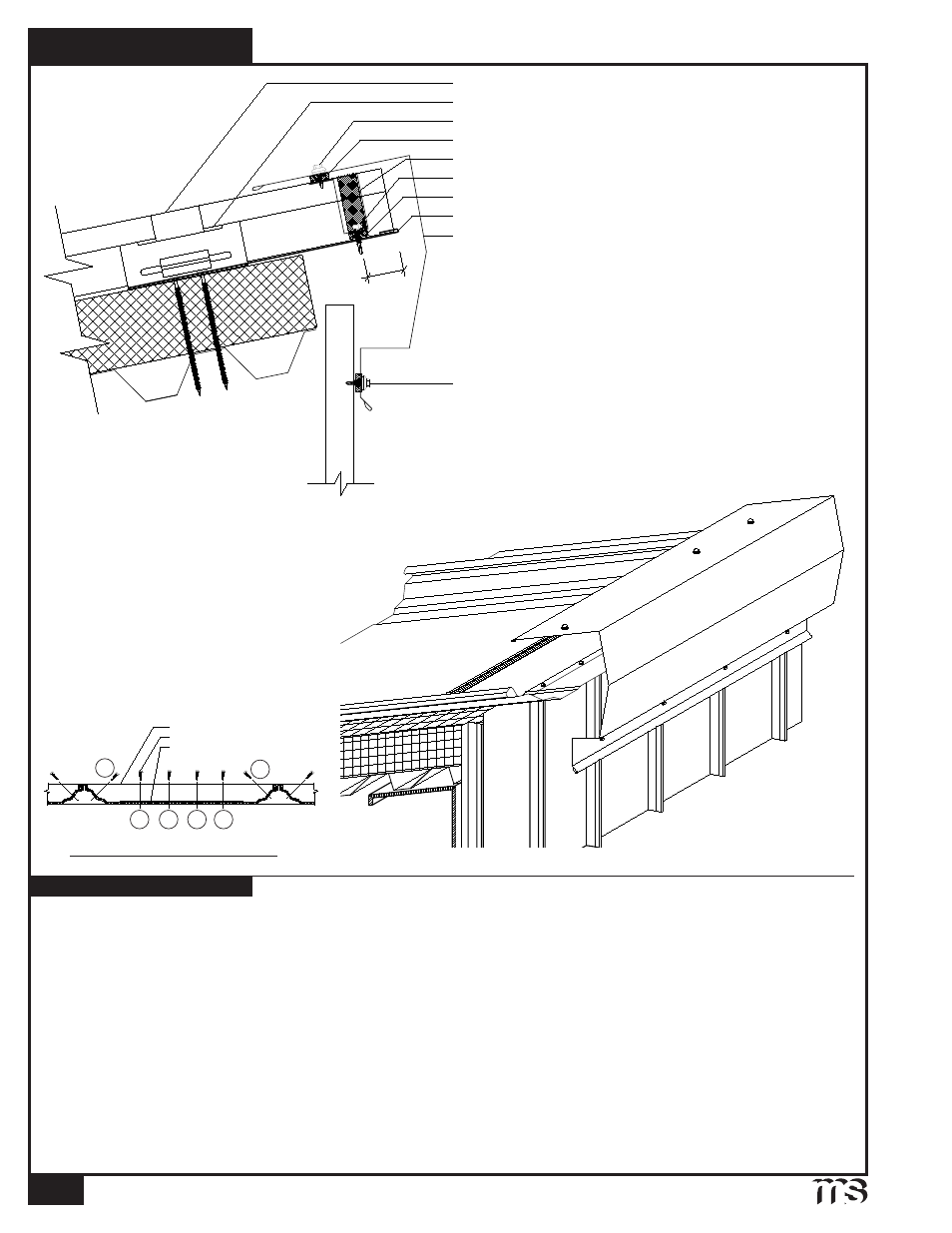

SEAM-LOC 24 ® S
CULPTURED
H
IGH
S
IDE
E
AVE
O
VER
R
IGID
I
NSULATION
INSTALLATION NOTES
Seam-Loc 24 Panel
SSR Sculptured High Side Eave
#12-14 x 1" Self Driller NW (see below)
# 1 /
4
-14 x 7 /
8
" Stitch Screw XL (1'-0" o.c.)
Seam-Loc 24 Compression Plate
# 1 /
4
-14 x 7 /
8
" Stitch Screw XL (3 per panel)
Double Bead Tape Sealant
Seam-Loc 24 Metal Outside Closure
Double Bead Tape Sealant
Seam-Loc 24 Clip with (2) #14-13 x (X") Dekfast
Note: Lengths of Dekfast screws are
dependent on the assembly thickness
(see page 17 for lengths).
Seam-Loc 24 Fastening Pattern
D. B. T. S.
Metal Outside Closure
#12-14 x 1" SD N/W
2 6 5 4
1 3
1. Once panels have been installed, slide Compression Plate under upper edge of panels. Position Compression Plate to allow
for proper installation of High Side Eave assembly. Use C-clamps to hold Compression Plate in place.
2. Apply a row of Double Bead Tape Sealant across panel, up and over all ribs approximately 1 1 /
2
" from panel end.
3. Install Seam-Loc 24 Outside Closures over tape sealant. Before continuing make sure Outside Closure placement will
accommodate SSR Sculptured High Side Eave flashing.
4. Once Closure is set in Tape Sealant, fasten through Outside Closure, Tape Sealant, Seam-Loc 24 panel, and into Compression
Plate with (6) 12-14 x 1" SD N/W per panel. C-clamps may be removed once closures have been fastened.
5. Once all Outside Closures have been installed, place a row of Double Bead Tape Sealant across top of Outside Closures. Tube
Sealant must be used to fill any and all gaps left around Outside Closures.
6. Install SSR Sculptured High Side Eave flashing and secure to top leg of Outside Closures with # 1 /
4
-14 x 7 /
8
" Stitch XL at the
spacing shown above.
7. Fasten SSR Sculptured High Side Eave flashing to finished wall with appropriate fastener, 1'-0"o.c.
8. If two or more flashings are required, lap the flashing over the previously installed flashing by a minimum of 2" placing a
bead of Tube Sealant between the flashings and securing with Pop Rivets, 2 1 /
2
" o.c.
1 1 /
2
"
