Metal Sales Seam-Loc 24 Installation - Manual (Page 58)

© Metal Sales Manufacturing Corporation/ Subject to change without notice/ Effective Date 12/03
800.406.7387 (Corporate Office) • www.metalsales.us.com
57

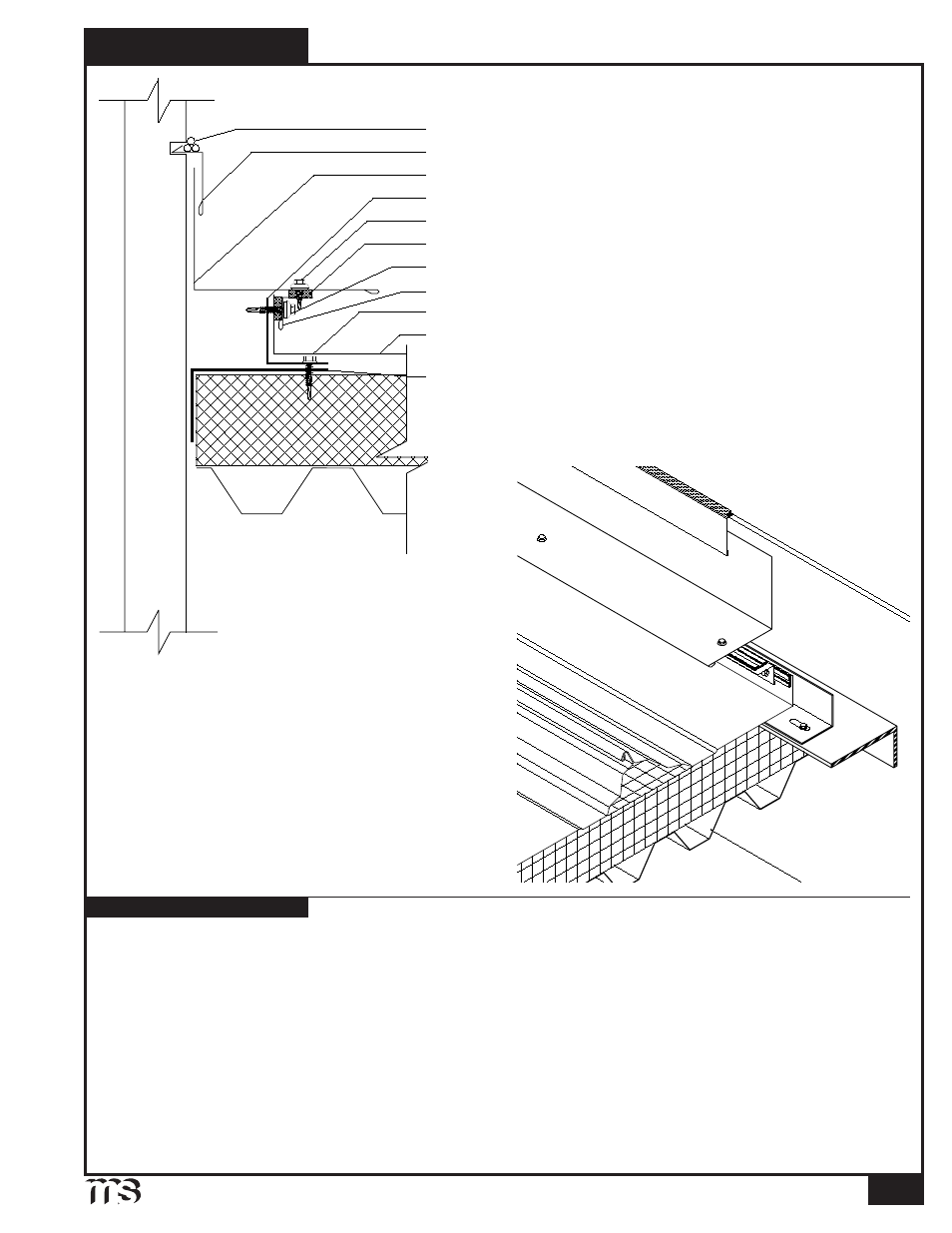

SEAM-LOC 24 ® R
AKEWALL
(
ON MODULE
)
WITH
R
EGLET
F
LASHING
O
VER
R
IGID
I
NSULATION
INSTALLATION NOTES
Double Bead Tape Sealant
Floating Rake Angle
SSR Rakewall
#12-14 x 1 1 /
4
" Self Driller XL (1'-0" o.c.)
#12-14 x 1 1 /
4
" Shoulder Self Driller NW (1'-0" o.c.)
SSR Rake Cleat
Tube Sealant
Reglet Flashing
# 1 /
4
-14 x 7 /
8
" Stitch Screw XL (1'-0" o.c.)
Seam-Loc 24 Panel (field cut rib and bend
up to match height of Rake Angle)
Rake Angle
Seam-Loc 24 Floating Rake Angle and Seam-Loc 24 Panels must be installed prior to Rakewall installation
(See pages 24-36).
1. With Seam-Loc 24 panel nested against Seam-Loc 24 Floating Rake Angle, apply a row of Double Bead Tape Sealant across
vertical side of field bent panel rib. (See page 34 for proper bending of panel.)
2. Install SSR Rake Cleat over Double Bead Tape Sealant. Fasten through SSR Rake Cleat, tape sealant, panel, and into
floating rake zee with #12-14 x 1 1 /
4
" Self Driller XL screws, 1'-0"o.c.
3. Apply a row of Double Bead Tape Sealant across top leg of SSR Rake Cleat.
4. Install SSR Rakewall so that top of flashing is flush with top of SSR Rake Cleat and panel rib. Fasten through SSR
Rakewall, tape sealant, and into SSR Rake Cleat with # 1 /
4
-14 x 7 /
8
" Stitch XL, 1'-0"o.c.
5. Install Counter Flashing, Reglet, or wall panel and fasten to parapet wall with appropriate fastener, 1'-0" o.c. If Counter
Flashing or Reglet is used, seal to parapet wall with tube sealant. Do NOT fasten SSR Rakewall to parapet wall.
6. If two or more flashings are required, lap the flashing over the previously installed flashing by a min. of 2" placing a bead of
Tube Sealant between the flashings and securing with Pop Rivets, 2 1 /
2
" o.c.
