SEAM-LOC 24 ® I
NSTALLATION OF
P
ANEL
(
CONT
.)
4. Roll the female leg of the second panel into place over the male leg of the first panel so their ends are flush.
Do not let the flat of the second panel touch the Double Bead Tape Sealant at the eave until the ends are flush.
5. Use Cee Clamps to hold the two vertical legs of the panel seams together.
6. Fasten panel through the Double Bead Tape Sealant and Gutter Drip flashing into the Eave
Plate using (4) #12-14 x 1 1 /
4
" Self Driller XL screws. Fasten panel rib through Double Bead Tape Sealant to
Metal Inside Closures with (2) #12-14 x 1 1 /
4
" Self Driller XL screws.
7. Measure the distance from the female leg of the first panel installed. This dimension should be and even
multiple of 24"-1⁄4" for every four panels. It is very important that the dimension from the start panel to the
last male leg, at the eave and peak, be the same dimension within a 1⁄4" of each other.
8. Make certain that all clips are properly installed and that the panel sidelaps are properly positioned to be
seamed.

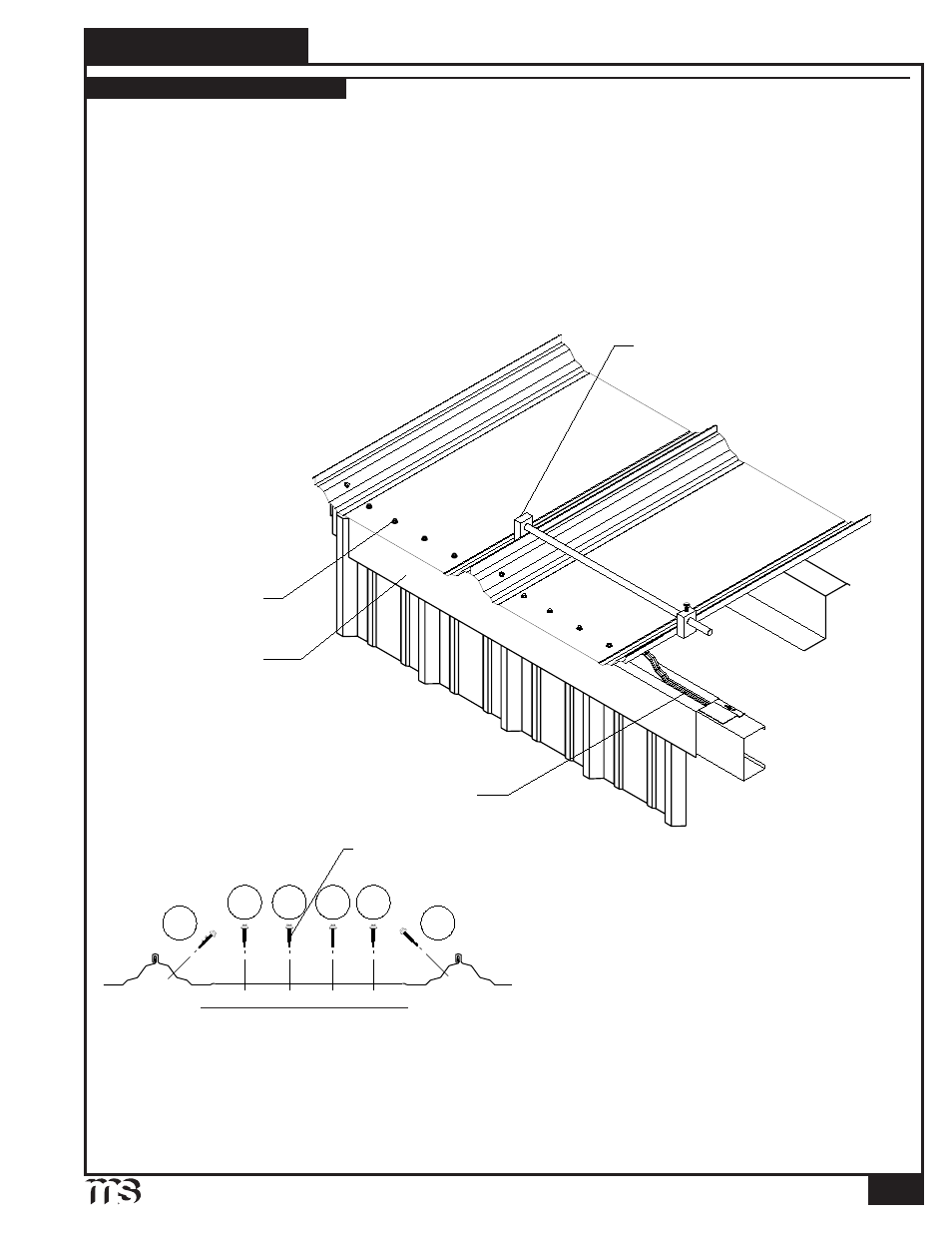

Gutter Drip
#12-14 Self Driller XL
Panel Spacer Bar For Panel
Modularity (24 1 /
4
" o.c.-unseamed)
Double Bead Tape Sealant
SIDELAPPING OF PANEL (CONT.)
Seam-Loc 24 Fastening Pattern
#12-14 x 1 1 /
4
" SD XL
1
3
4 6 2
5
