Metal Sales Seam-Loc 24 Installation - Manual (Page 43)

© Metal Sales Manufacturing Corporation/ Subject to change without notice/ Effective Date 12/03
800.406.7387 (Corporate Office) • www.metalsales.us.com
42

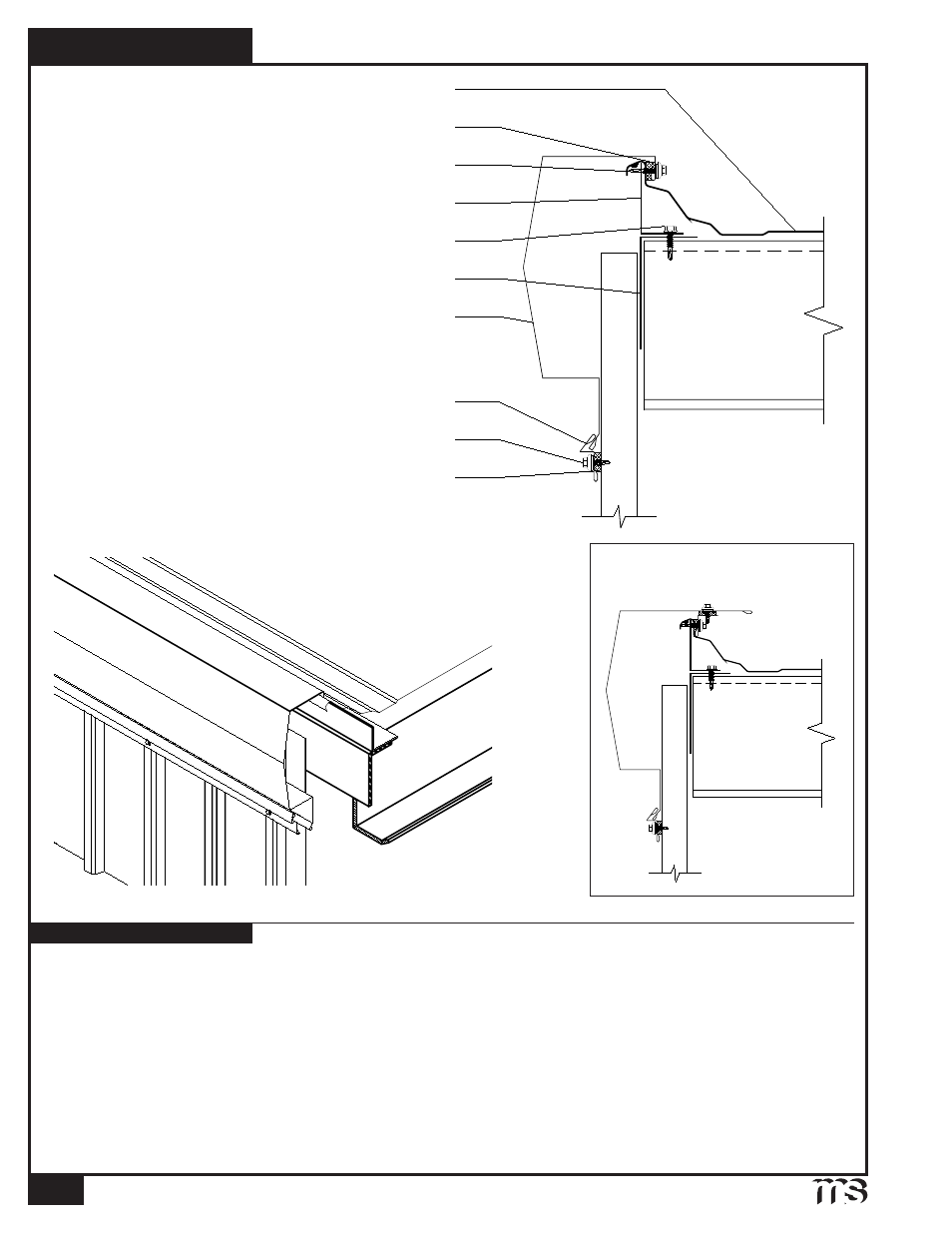

SEAM-LOC 24 ® SSR S
CULPTURED
R
AKE
(
ON MODULE
) O
VER
O
PEN
F
RAMING
Seam-Loc 24 floating rake angle and Seam-Loc 24 panels must be installed prior to SSR Sculptured Rake installation
(See pages 24-36).
1. With Seam-Loc 24 panel properly nested over top of Seam-Loc 24 Floating Rake Angle, apply a row of Double Bead Tape
Sealant across vertical side of panel rib.
2. Install SSR Sculptured Rake flashing so that side of flashing is flush with vertical leg of panel rib. Fasten
through SSR Sculptured Rake, Tape Sealant, and into Rake Angle with #12-14 x 1 1 /
4
" SD XL, 1'-0"o.c.
3. Position and apply a row of Double Bead Tape Sealant across wall panel just below lower leg of SSR Rake Flashing.
4. Install SSR Rake Slide over lower leg of SSR Rake flashing and Double Bead Tape Sealant. Fasten with #1⁄4-14 x 7 /
8
"
Stitch XL, 1'-0"o.c.
5. If two or more flashings are required, lap the flashing over the previously installed flashing by a minimum of 2" placing a
bead of Tube Sealant between the flashings and securing with Pop Rivets, 2 1 /
2
" o.c.
INSTALLATION NOTES
Seam-Loc 24 Panel
Rake Angle
SSR Sculptured Rake (on module)
Double Bead Tape Sealant
Floating Rake Angle
SSR Rake Slide
Double Bead Tape Sealant
#12-14 x 1 1 /
4
" SD XL (1'-0" o.c.)
#12-14 x 1 1 /
4
" Shoulder SD (1'-0" o.c.)
# 1 /
4
-14 x 7 /
8
" Stitch XL (1'-0" o.c.)
SSR S
CULPTURED
R
AKE
(O
N
M
ODULE
O
PTIONAL
) D
ETAIL
1 /
4
:12 Slope
Minimum
