SEAM-LOC 24 ® R
AKEWALL
(
OFF MODULE
)
WITH
R
EGLET
O
VER
O
PEN
F
RAMING

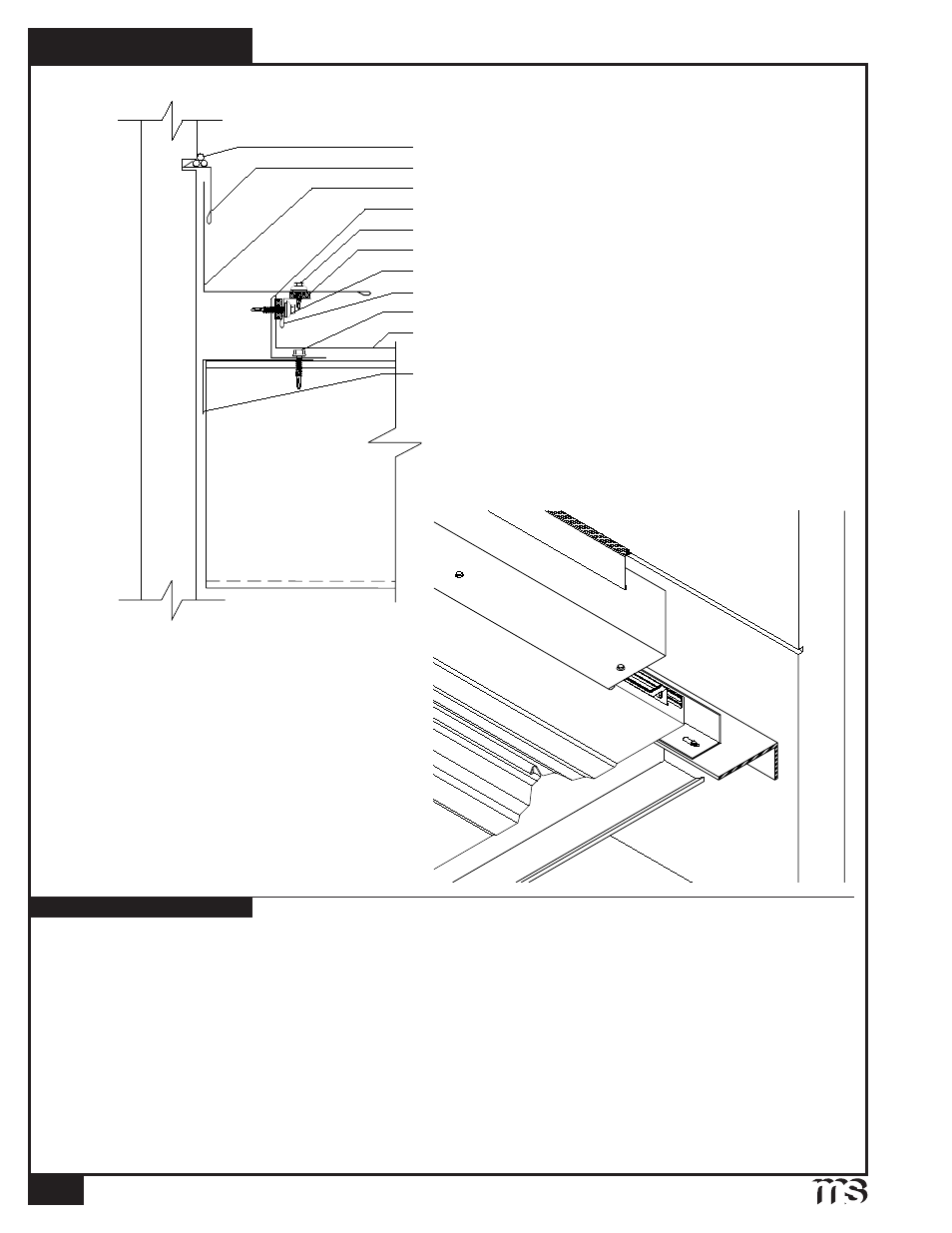

Seam-Loc 24 Floating Rake Angle and Seam-Loc 24 Panels must be installed prior to Rakewall installation
(See pages 24-36).
1. With Seam-Loc 24 panel nested against Seam-Loc 24 Floating Rake Angle, apply a row of Double Bead Tape Sealant across
vertical side of field bent panel rib. (See page 34 for proper bending of panel.)
2. Install SSR Rake Cleat over Double Bead Tape Sealant. Fasten through SSR Rake Cleat, tape sealant, panel, and into
floating rake zee with #12-14 x 1 1 /
4
" Self Driller XL screws, 1'-0"o.c.
3. Apply a row of Double Bead Tape Sealant across top leg of SSR Rake Cleat.
4. Install SSR Rakewall so that top of flashing is flush with top of SSR Rake Cleat and panel rib. Fasten through SSR
Rakewall, tape sealant, and into SSR Rake Cleat with # 1 /
4
-14 x 7 /
8
" Stitch XL, 1'-0"o.c.
5. Install Counter Flashing, Reglet, or wall panel and fasten to parapet wall with appropriate fastener, 1'-0" o.c. If Counter
Flashing or Reglet is used, seal to parapet wall with tube sealant. Do NOT fasten SSR Rakewall to parapet wall.
6. If two or more flashings are required, lap the flashing over the previously installed flashing by a min. of 2" placing a bead of
Tube Sealant between the flashings and securing with Pop Rivets, 2 1 /
2
" o.c.
INSTALLATION NOTES
# 1 /
4
-14 x 7 /
8
" Stitch XL (1'-0" o.c.)
SSR Rake Cleat
#12-14 x 1 1 /
4
" SD XL (1'-0" o.c.)
Double Bead Tape Sealant
#12-14 x 1 1 /
4
" Shoulder SD (1'-0" o.c.)
Floating Rake Angle
Rake Angle
Tube Sealant
Reglet Flashing
SSR Rakewall
Seam-Loc 24 Panel (field cut panel and bend up to
match height of rake angle for off module application)
1 /
4
:12 Slope
Minimum
