SEAM-LOC 24 ® SSR D
ROP
V
ALLEY
O
VER
O
PEN
F
RAMING

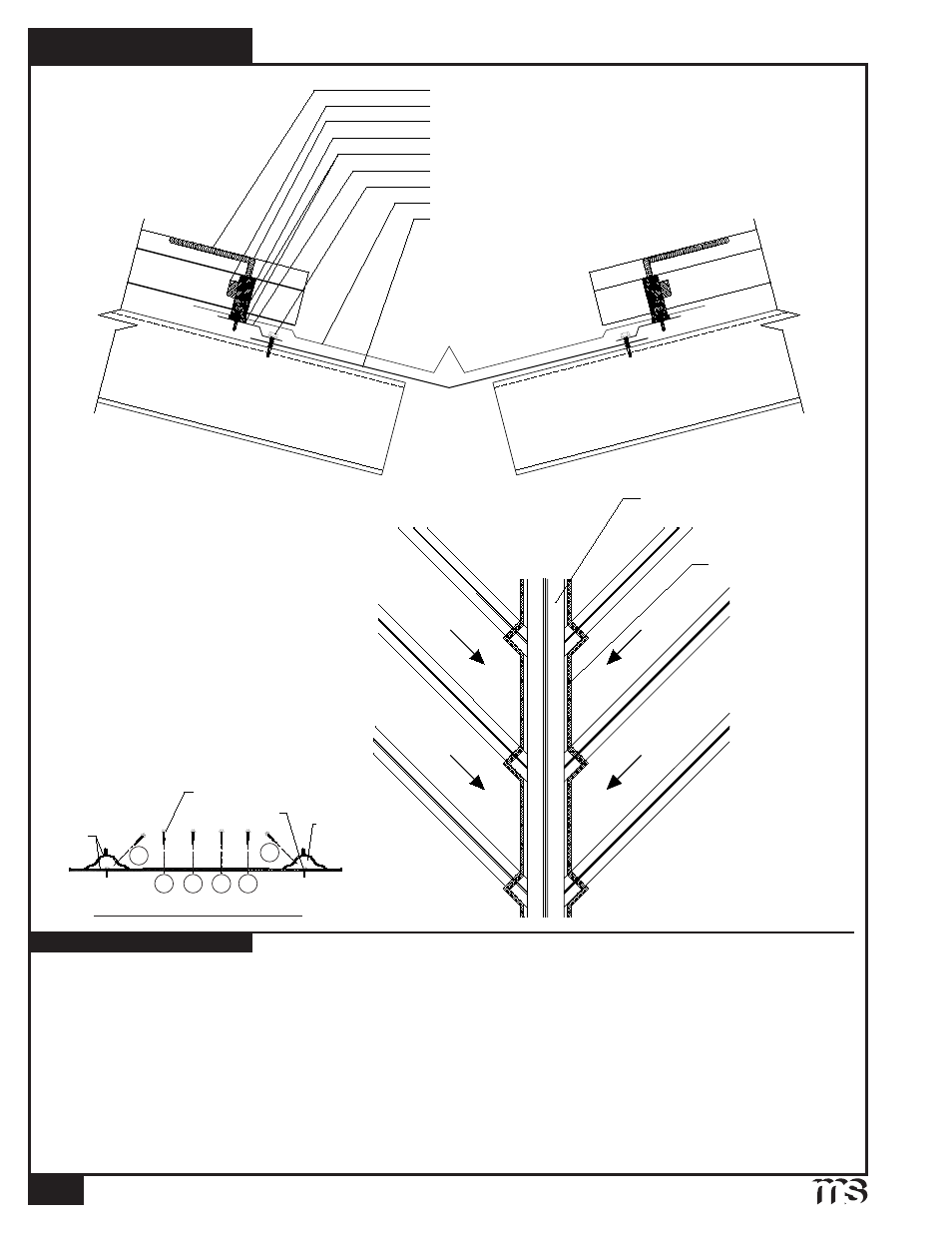

INSTALLATION NOTES
All Valley flashings must be installed prior to panel installation. If two or more Valley flashings are required, valley
must be installed working from eave to peak. It is recommeneded that ice and water shield be installed under Valley
flashing for added moisture protection.
1. Install Drop Valley flashing back against previously installed Eave Plates. To hold Valley in place, fasten to substrate with
#10-16 x 1" Pancake Head fastener, 4'-0"o.c. into top leg of Eave Plate.
2. Apply a row of Double Bead Tape Sealant across both sides of the Drop Valley flashing so that the sealant is centered
over the top leg of the Eave Plate.
3. If two or more flashings are required, lap the flashing over the previously installed flashing by a minimum of 6" placing two
beads of Tube Sealant per side between the flashings.
4. Once panels and inside closures have been installed and properly sealed, (See pages
Tape Sealant, and Sculptured Eave into Eave Plate with (6) #12-14 x 1 1 /
4
" Self Driller XL screws per panel.
Seam-Loc 24 Panel
Double Bead Tape Sealant
SSR Drop Valley
Eave Plate
#12-14 x 1" SD N/W (1'-0" o.c.)
#12-14 x 1" SD N/W (see below)
Valley Plate
Seam-Loc 24 Metal Inside Closure
Line of Tape Sealant
Valley
Seam-Loc 24 Fastening Pattern
D. B. T. S.
#12-14 x 1" SD N/W
Metal
Inside
Closure
#12-14 x 1 1 /
4
" SD XL
2 6 5 4
1 3
6:12 Slope
Minimum
Tube Sealant
