SEAM-LOC 24
®
S
CULPTURED
G
UTTER
O
VER
O
PEN
F
RAMING

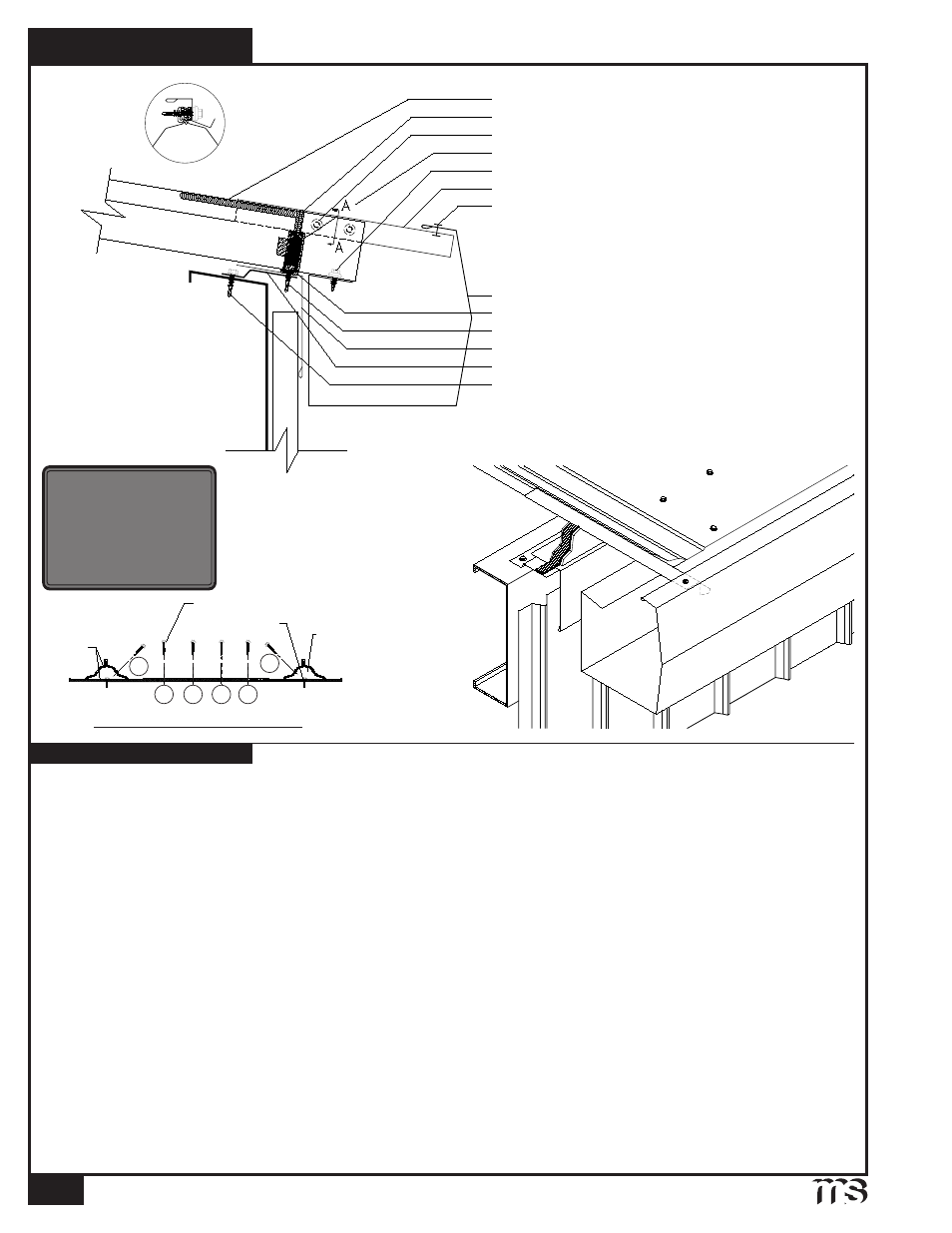

Gutter Drip Flashings must be installed prior to panel installation.
1. Install Gutter Drip back against previously installed Eave Plate, (see page 25 for Eave Plate installation). To hold Gutter
Drip in place fasten to substrate with #10-16 x 1" Pancake Head fastener, 4'-0"o.c.
2. Apply a row of Double Bead Tape Sealant across Gutter Drip so that sealant is centered over top leg of Eave Plate.
3. If two or more flashings are required, lap the flashing over the previously installed flashing by a minimum of 2"
placing a bead of Tube Sealant between the flashings and securing with Pop Rivets, 2
1
/
2
"
4. Once panels and inside closures have been installed and properly sealed, (See page 26), fasten through panel, Double Bead
Tape Sealant, and Sculptured Eave into Eave Plate with (6) #12-14 x 1
1
/
4
" Self Driller XL screws per panel.
5. Attach the SSR Gutter Support to the panel rib every other panel (48"o.c.) with (2) #12-14 x 1
1
/
4
" Self Driller XL
screws. Fasteners must be applied down slope of the sealant line. Do not apply screws up slope of the sealant line. The
SSR Gutter Supports can be adjusted in or out to allow the gutter to be installed in a straight line, even if the edge of the
roof is not straight.
6. Prepare the first gutter section with a Sculptured Gutter End. Consider rake to gutter connection for proper placement of
Sculptured Gutter End and the gutter flashing. Fasten with (8) #
1
/
4
-14x
7
/
8
" Stitch XL screws or Pop Rivets.
7. Position the gutter over the SSR Gutter Supports with one end against the Rake flashing and rotate gutter into position.
8. Clamp the top of the back lip of the gutter in position with a C-clamp. Install a #
1
/
4
-14 x
7
/
8
" Stitch XL screw or Pop
Rivet where the front lip of the gutter rests on the SSR Gutter Support, and fasten the back lip of the gutter to the panel
flat with (2) #
1
/
4
-14 x
7
/
8
" Stitch XL screw per panel.
9. Field miter the rake trim to fit the gutter contour at the corner of the building or install a SSR Sculptured Corner Box.
10. If two or more flashings are required, lap the flashing over the previously installed flashing by a minimum of 2" placing a
bead of Tube Sealant between the flashings and securing with #
1
/
4
-14 x
7
/
8
" Stitch XL screws or Pop Rivets, 2
1
/
2
"o.c.
#
1
/
4
-14 x
7
/
8
" Stitch XL (2 per panel)
Eave Plate
Gutter Drip
SSR Sculptured Gutter
#12-14 x 1
1
/
4
" SD XL (2 per support)
SSR Gutter Support (every other panel)
1
/
8
x
3
/
16
" Pop Rivet (every support)
#12-14 x 1
1
/
4
" SD XL (see below)
#12-14 x 1" SD N/W (1'-0" o.c.)
Seam-Loc 24 Panel
Seam-Loc 24 Metal Inside Closure
Double Bead Tape Sealant
Tube Sealant
A-A
A
A
Seam-Loc 24 Fastening Pattern
D. B. T. S.
#12-14 x 1" SD N/W
Metal
Inside
Closure
#12-14 x 1
1
/
4
" SD XL
2
6
5
4
1
3
1
/
4
:12 Slope
Minimum
CAUTION
In locations where heavy
rainfall or severe ice and
snow may occur, Metal Sales'
standard gutters may not be
suitable for use.
INSTALLATION NOTES
