SEAM-LOC 24 ®
Gutter Drip
I
NSTALLATION OF
P
ANEL
(
CONT
.)
INSTALLING FIRST PANEL
Female Leg Male Leg
Floating Rake Angle
Gutter Drip
First Seam-Loc 24 Eave Panel
Metal Inside Closure

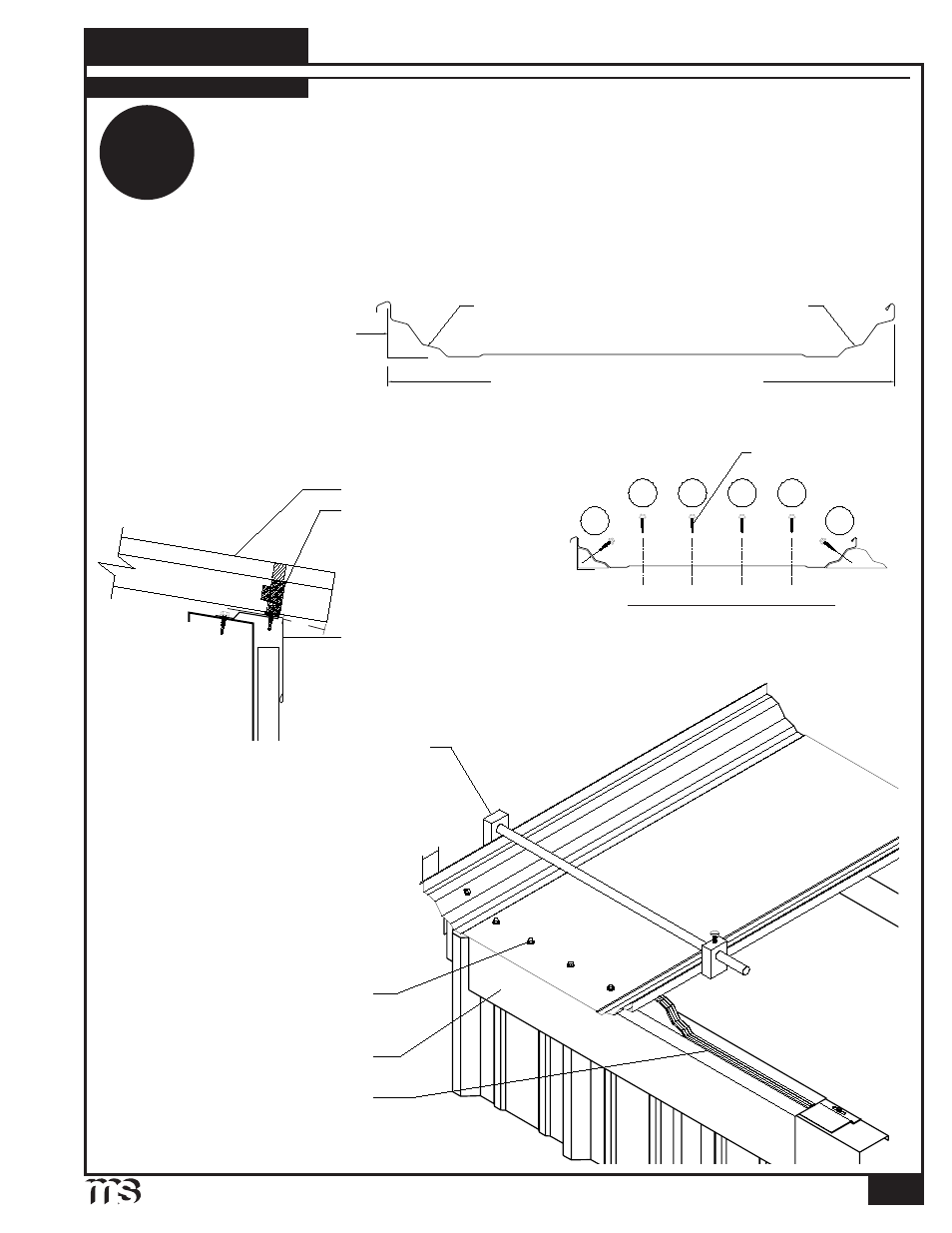

Steps:
1. Position the first panel so the female leg is against the vertical leg of the Floating Rake Angle.
2. Slide the panel over the Gutter Drip flashing, 2" past finished wall surface.
3. Use a C-clamp to hold the panel against the vertical leg of the Floating Rake Angle.
4. Recheck the panel overhang dimension at Eave, Ridge, and Endlap.
5. Fasten panel through the Double Bead Tape Sealant and Gutter Drip flashing into the Eave
Plate using (4) #12-14 x 1 1 /
4
" Self Driller XL screws. Fasten panel rib through Double Bead Tape Sealant to
Metal Inside Closures with (2) #12-14 x 1 1 /
4
" Self Driller XL screws.
(Additional fasteners may be required at valley condition)
#12-14 x 1 1 /
4
" Self Driller XL
(See above)
Spacer Bar
2" Overhang
STEP
4
2"
24" (measure for panel modularity)
Seam-Loc 24 Fastening Pattern
#12-14 x 1 1 /
4
" SD XL
Double Bead Tape Sealant
1
3
4 6 2
5
