SEAM-LOC 24 ®

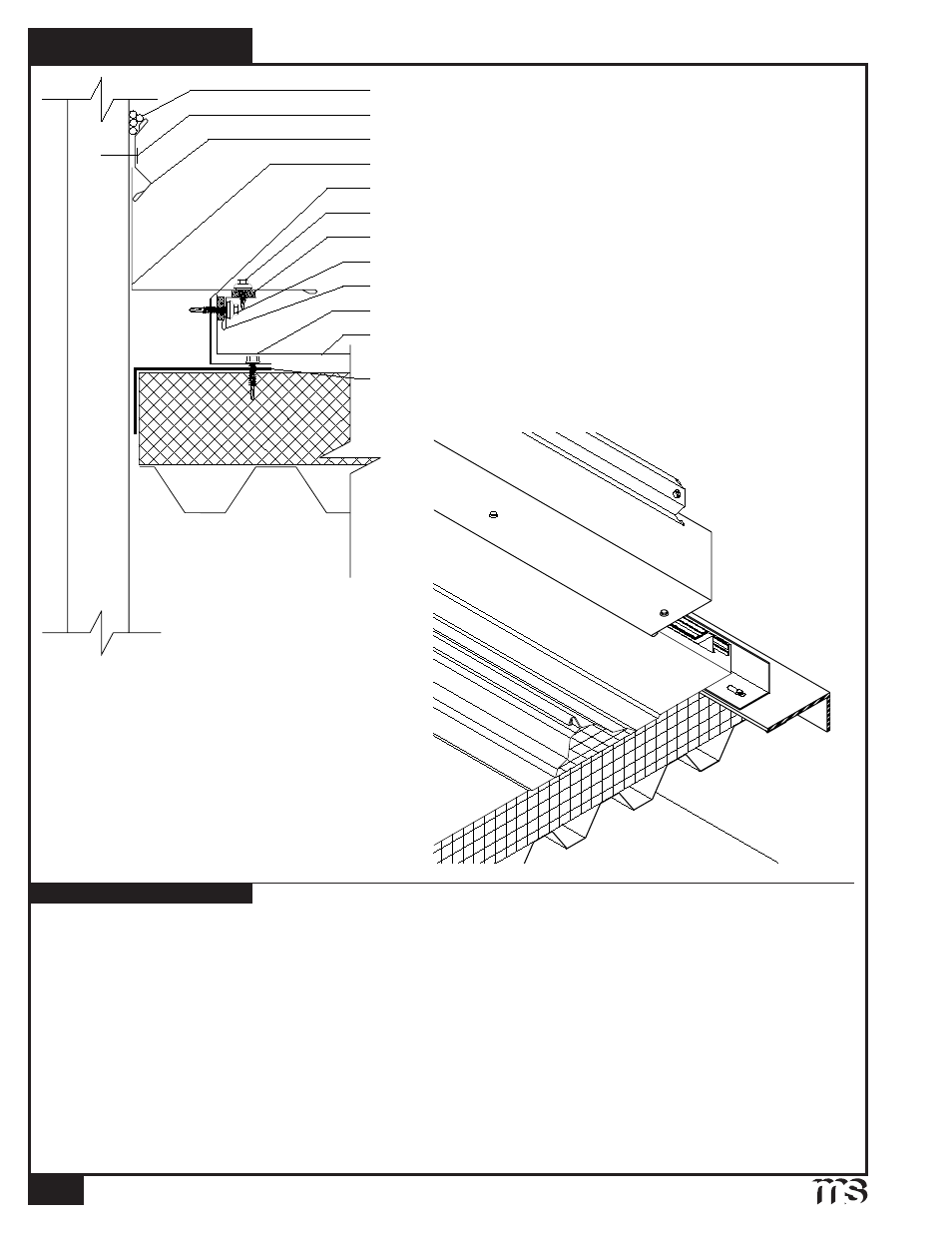

INSTALLATION NOTES
R
AKEWALL
(
OFF MODULE
)
WITH
C
OUNTER
F
LASHING
O
VER
R
IGID
I
NSULATION
Double Bead Tape Sealant
Floating Rake Angle
SSR Rakewall
#12-14 x 1 1 /
4
" Self Driller XL (1'-0" o.c.)
#12-14 x 1 1 /
4
" Shoulder Self Driller NW (1'-0" o.c.)
SSR Rake Cleat
Tube Sealant
Fasteners (by others)
Counter Flashing
# 1 /
4
-14 x 7 /
8
" Stitch Screw XL (1'-0" o.c.)
Seam-Loc 24 Panel (field cut rib and bend
up to match height of Rake Angle)
Rake Angle
Seam-Loc 24 Floating Rake Angle and Seam-Loc 24 Panels must be installed prior to Rakewall installation
(See pages 24-36).
1. With Seam-Loc 24 panel properly nested against Seam-Loc 24 Floating Rake Angle, apply a row of Double Bead Tape
Sealant across vertical side of panel rib.
2. Install SSR Rake Cleat over Double Bead Tape Sealant. Fasten through SSR Rake Cleat, Tape Sealant, panel, and into
Floating Rake Angle with #12-14 x 1 1 /
4
" Self Driller XL screws, 1'-0"o.c.
3. Apply a row of Double Bead Tape Sealant across top leg of SSR Rake Cleat.
4. Install SSR Rakewall so that top of flashing is flush with top of SSR Rake Cleat and panel rib. Fasten through SSR
Rakewall, Tape Sealant, and into SSR Rake Cleat with #1⁄4-14 x 7 /
8
" Stitch XL, 1'-0"o.c.
5. Install Counter Flashing, Reglet, or wall panel and fasten to parapet wall with appropriate fastener, 1'-0" o.c. If Counter
Flashing or Reglet is used, seal to parapet wall with Tube Sealant. Do NOT fasten SSR Rakewall to parapet wall.
6. If two or more flashings are required, lap the flashing over the previously installed flashing by a minimum of 2" placing a
bead of Tube Sealant between the flashings and securing with Pop Rivets, 2 1 /
2
" o.c.
