Metal Sales Seam-Loc 24 Installation - Manual (Page 46)

© Metal Sales Manufacturing Corporation/ Subject to change without notice/ Effective Date 12/03
800.406.7387 (Corporate Office) • www.metalsales.us.com
45

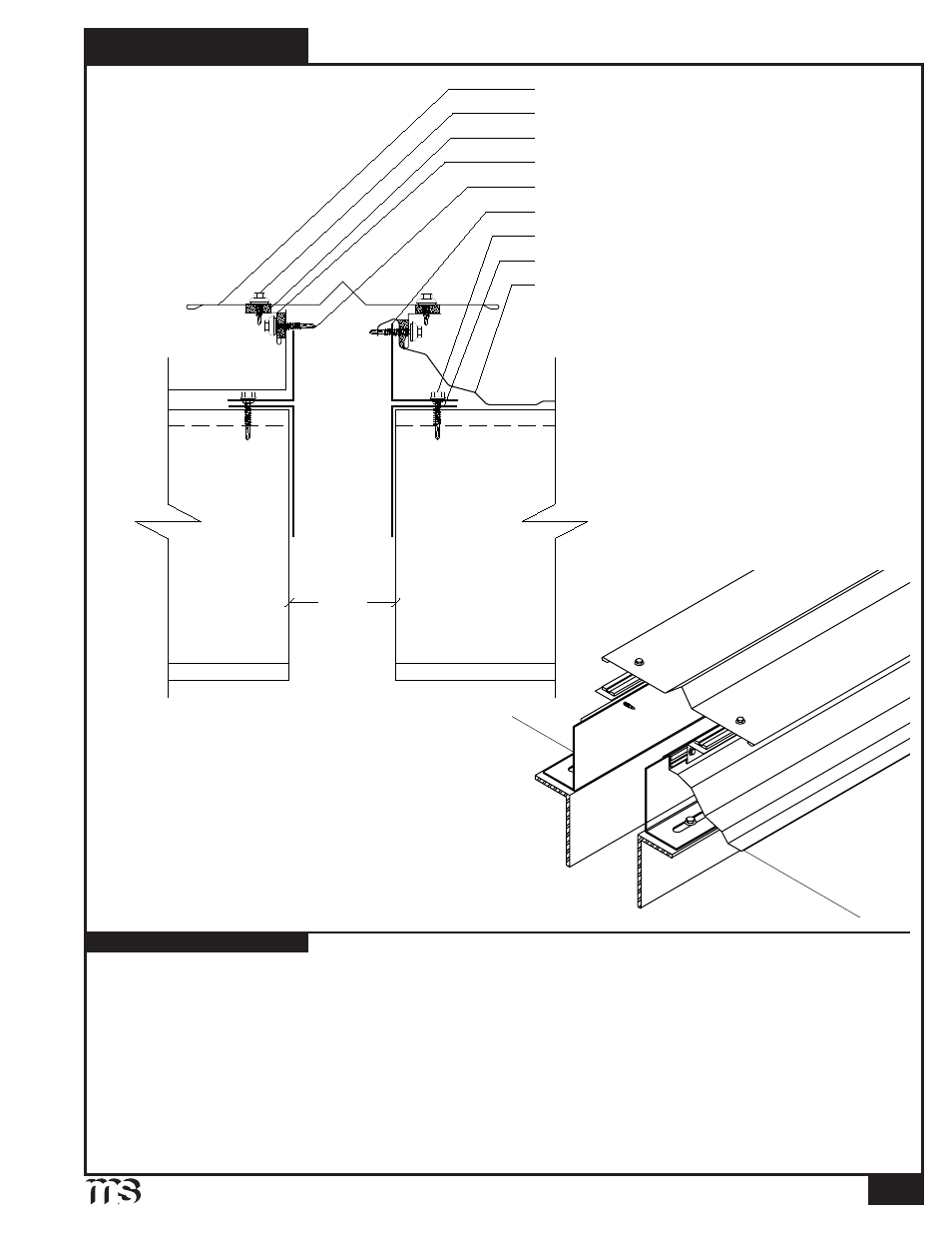

SEAM-LOC 24 ® E
XPANSION
J
OINT
O
VER
O
PEN
F
RAMING
Seam-Loc 24 Floating Rake Zees and Seam-Loc 24 Panels must be installed prior to Expansion Joint installation
(See pages 24-36).
1. With Seam-Loc 24 panels nested against Seam-Loc 24 Floating Rake Zees, apply a row of Double Bead Tape Sealant across
vertical side of panel ribs on both sides of Expansion Joint. (See page 34 for proper bending of panel if off module.)
2. Install SSR Rake Cleats over Double Bead Tape Sealant on both sides. Fasten through SSR Rake Cleat, Tape Sealant,
panel, and into Floating Rake Angle with #12-14 x 1 1 /
4
" Self Driller XL screws, 1'-0"o.c. on both sides of Expansion Joint.
3. Apply a row of Double Bead Tape Sealant across top leg of SSR Rake Cleats.
4. Install Expansion Joint flashing on top legs of SSR Rake Cleats. Fasten through Expansion Joint flashing, Tape Sealant,
and into SSR Rake Cleat with #1⁄4-14 x 7 /
8
" Stitch XL, 1'-0"o.c. on both sides of Expansion Joint.
5. If two or more flashings are required, lap the flashing over the previously installed flashing by a minimum of 2" placing a
bead of Tube Sealant between the flashings and securing with Pop Rivets, 2 1 /
2
" o.c.
INSTALLATION NOTES
# 1 /
4
-14 x 7 /
8
" Stitch XL (1'-0" o.c.)
SSR Rake Cleat
#12-14 x 1
1 /
4
" SD XL (1'-0" o.c.)
Seam-Loc 24 Panel
Double Bead Tape Sealant
#12-14 x 1 1 /
4
" Shoulder SD (1'-0" o.c.)
Floating Rake Angle
Expansion Joint Cover
Rake Angle
3 1 /
4
"
Maximum
1 /
4
:12 Slope
Minimum
