Metal Sales Seam-Loc 24 Installation - Manual (Page 27)

© Metal Sales Manufacturing Corporation/ Subject to change without notice/ Effective Date 12/03
800.406.7387 (Corporate Office) • www.metalsales.us.com
26
SEAM-LOC 24 ® I
NSTALLATION OF
P
ANEL
(
CONT
.)
INSTALLING METAL INSIDE CLOSURES
STEP
3
The following steps are for installing the Seam-Loc 24 Panel to accomodate for the Seram-Loc Sculptured
Gutter and Gutter Drip Flashing.
Note: Eave, Gutter Drip, Gutter, Valley, or any low side flashing must be installed prior to installation of
metal inside closure. The following steps are for installing Seam-Loc 24 from left to right On Module (full
panel width). Seam-Loc 24 may be installed from right to left if end lapping of panels is not required See
page 34 for off module panel installation.
Metal Inside Closures can be installed prior to panel installation or as the panel installation occurs. The
following steps are based on installing Metal Inside Closures as installation of each panel occurs.
Steps:

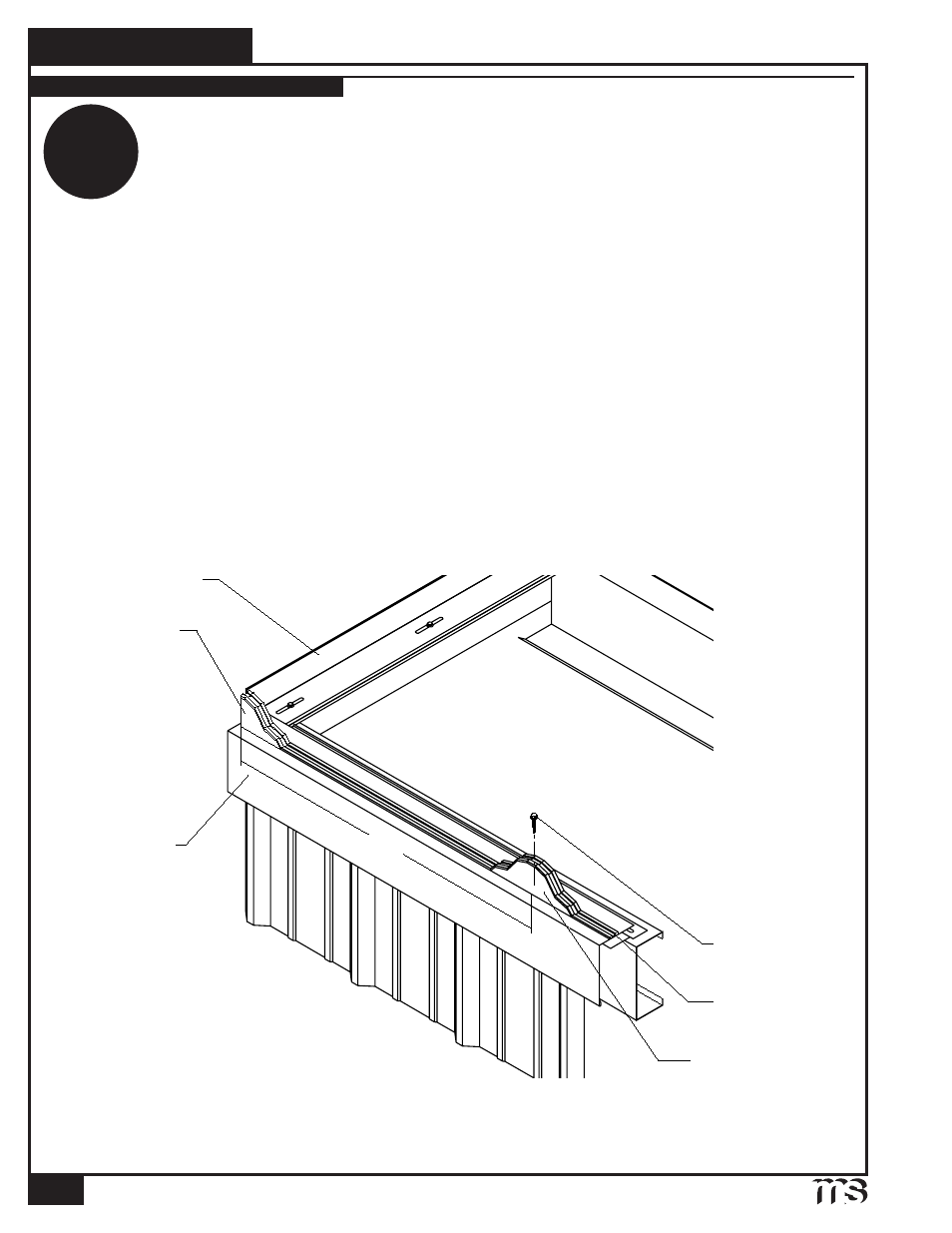

1. Place a row of Double Bead Tape Sealant across top of Gutter Drip flashing. Be sure to place sealant where
panel fasteners will be placed.
2. Starting at the left hand side of the building (looking eave to peak) measure from the vertical leg of the
Floating Rake Angle along the Gutter Drip flashing and mark every 24". Care should be taken in measuring
as this helps determine panel modularity.
3. Strip off the paper backing on the Double Bead Tape Sealant a few inches past the first mark.
4. Field cut a Metal Inside Closure in half and place on top of the Double Bead Tape Sealant flush with the
end of the Gutter Drip flashing and Floating Rake Angle. Place next Metal Inside Closure so that the hole at
the base of the closure lines up with the first 24" mark.
5. Fasten both Metal Inside Closures to the Gutter Drip flashing and Eave Plate with #12-14 x 1" Self Driller
No Washer screws.
6. Apply Double Bead Tape Sealant across the top of the Metal Inside Closures and remove the paper backing.
Double Bead
Tape Sealant
Metal Inside Closure
Self Driller
No Washer
Floating Rake Angle
Gutter Drip
Metal Inside Closure
(field cut)
24"
