SEAM-LOC 24 ® I
NSTALLATION
P
ROCEDURE
O
VERVIEW
The following procedures (pages 24-36) are presented as a general guide for installing Seam-Loc 24 panels, flashings, and
accessories on a typical building or residence. Details are shown for installing Seam-Loc 24 and related flashings over open
framing and over rigid insulation. For other applications please contact your nearest Metal Sales location (See pages 2 and 3).
The installation procedures will involve:
1. Installation of Floating Rake Angle.
2. Installaton of Eave plate.
3. Installing Metal Inside Closures
4. Installing First Panel.
5. Installing Panel Clips.
6. Endlapping of Panel.
7. Sidelapping of Panel.
8. Installing Panel Terminations.
9. Seaming Panels
10. Eave condition installation.
11. Gutter condition installation.
12. Valley condition installation.
13. Endlap condition installation.
14. Rake condition installation.
15. Rakewall condition installation.
16. Expansion Joint condition installation.
17. Endwall condition installation.
18. High Side Eave condition installation.
19. Ridge / Hip condition installation.
20. Outside Closure condition installation.

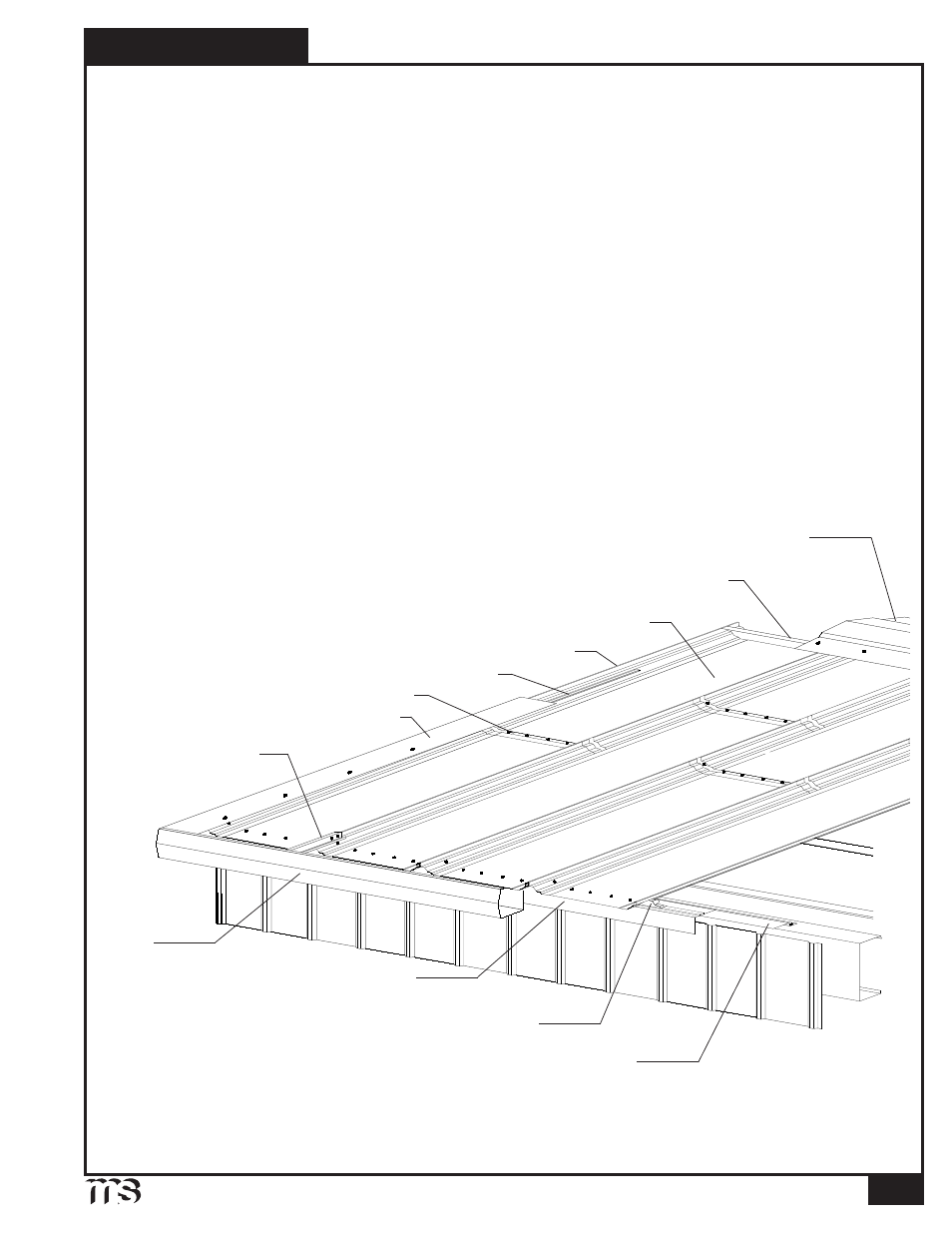

Ridge (See Pages 49-50 & 61)
Seam-Loc 24 Panel (See Page 27)
Metal Outside Closure
(See Page 62)
Floating Rake Angle (See Page 24)
SSR Rake Cleat (See Pages 41-42 & 54-55)
Rake (Off Module)
(See Pages 41-42 & 54-55)
Gutter Support
(See Page 38 & 52)
Gutter
(See Page 38 and 52)
Eave Plate
(See Page 25)
Metal Inside Closure
(See Page 26)
Gutter Drip
(See Page 26)
Cinch Strap (See Pages 39)
