E94AYCCA communication manual (CANopen®)
Diagnostics
LED status displays

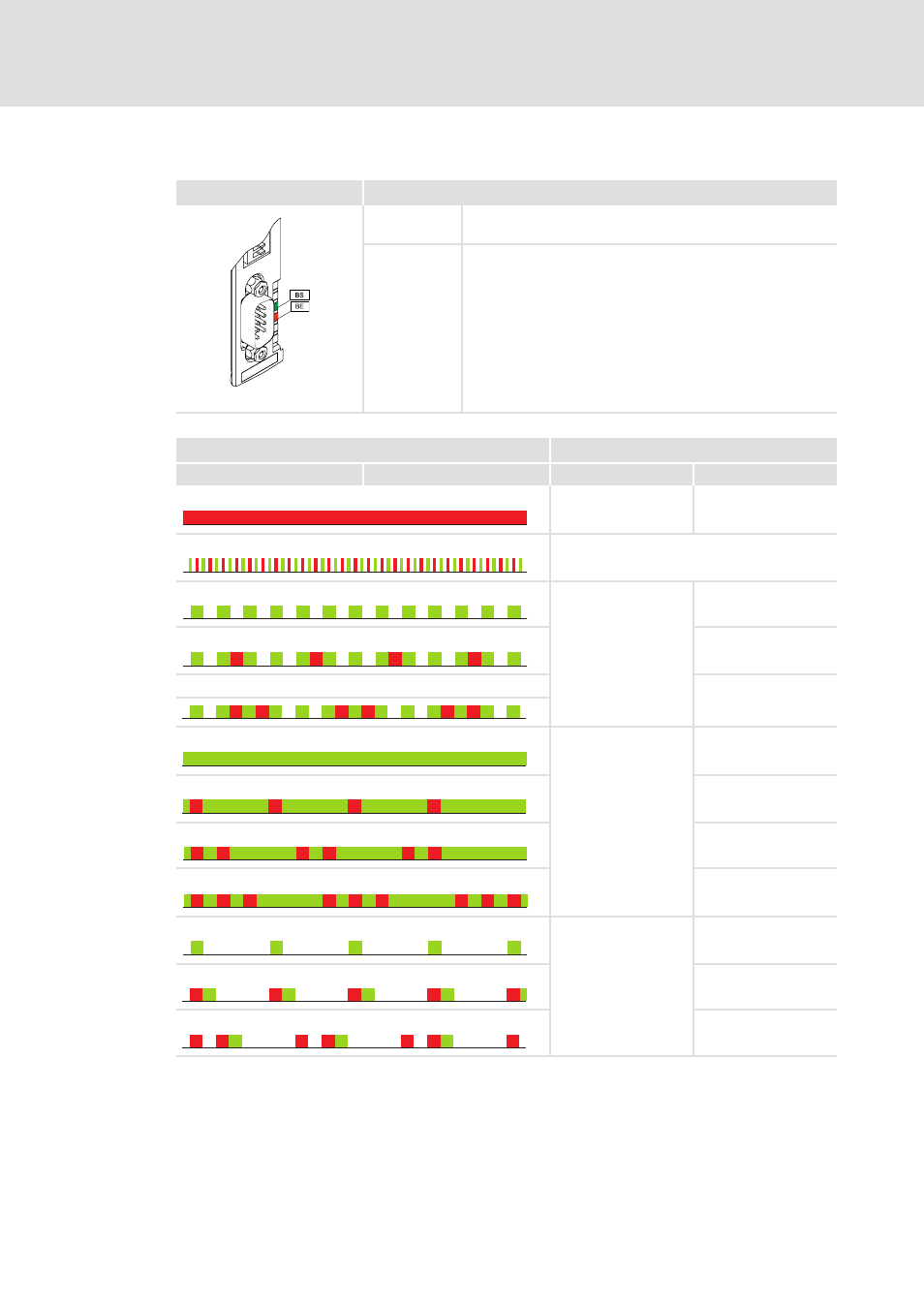

Status displays BS and BE (connection status to the system bus (CANopen))
LEDs Description
E94YCCA001D
BS
(green)
CANopen status
BE
(red)
CANopen error
LED status display Meaning
BS (green) BE (red) CANopen status CANopen error
BE lit only - Bus off
BS and BE flickering Automatic detection of the baud rate is active.
BS blinking every 0.2 s | BE is off Pre-operational -
BS blinking every 0.2 s | BE blinking once, 1 s off Warning limit reached
BS blinking every 0.2 s | BE blinking twice, 1 s off Node guard event
BS lit only Operational -
BS lit | BE blinking once, 1 s off Warning limit reached
BS lit | BE blinking twice, 1 s off Node guard event
BS lit | BE blinking three times, 1 s off Sync message error
BS blinking every 1 s | BE is off Stopped -
BS blinking every 1 s | BE blinking once, 1 s off Warning limit reached
BS blinking every 1 s | BE blinking twice, 1 s off Node guard event
