E94AYCCA communication manual (CANopen®)
Product description
Terminals and interfaces
16
L
EDS94AYCCA EN 5.0 - 06/2012
3.4 Terminals and interfaces
 9-pin Sub-D plug connector for system bus connection (CANopen)
 DIP switches for ...
– setting the CAN node address
– setting the baud rate
 Front LEDs for diagnosing the ...
– voltage supply of the communication module;
– connection to the standard device;
– CANopen state machine and error states;
– physical CAN connection.

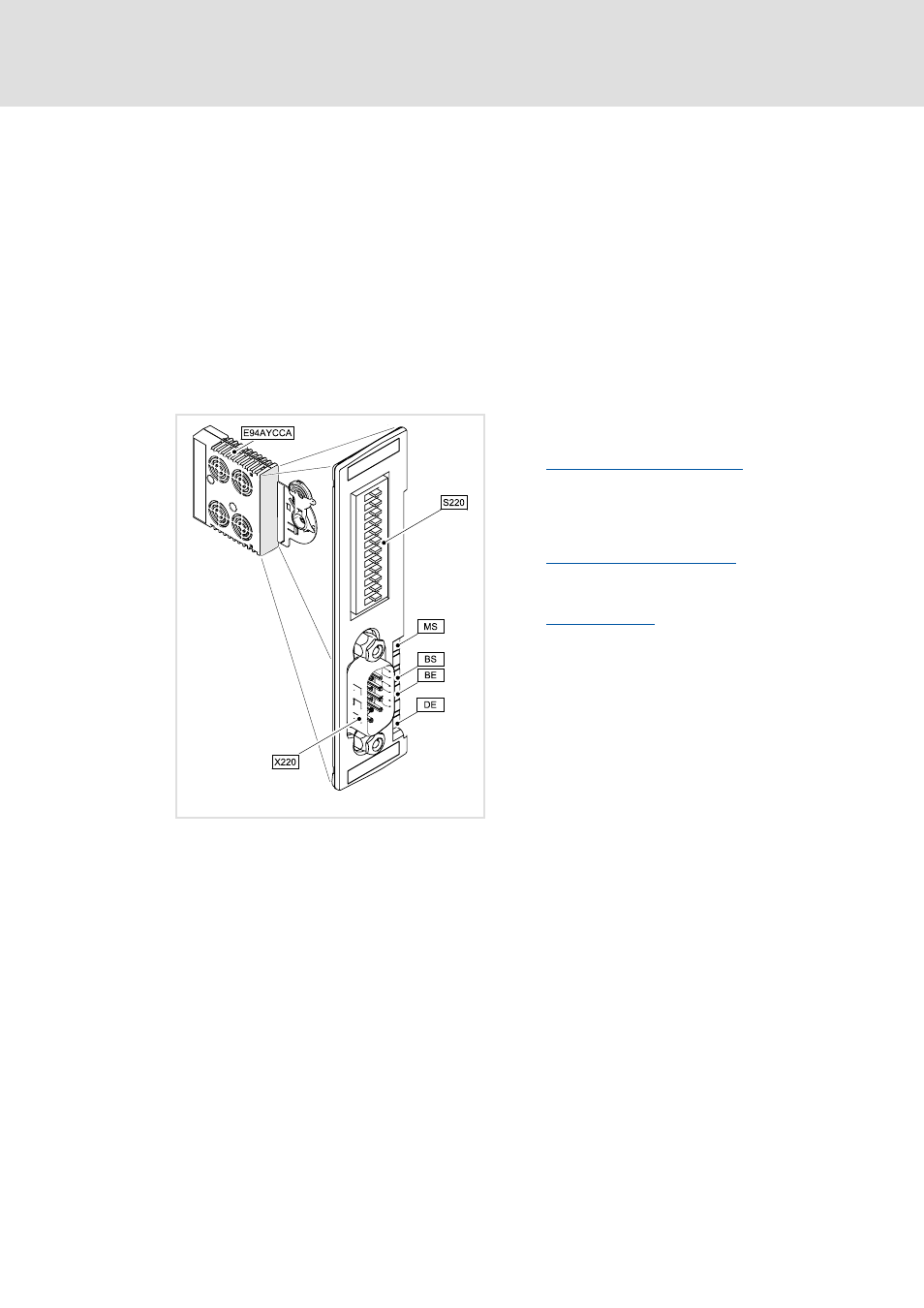

[3-2] E94AYCCA communication module (CANopen)
E94YCCA001B
X220 9-pin Sub-D plug connector for the ...
System bus (CANopen) connection ( 26)
S220 DIP switches for ...
• setting the CAN node address
• setting the baud rate
Possible settings via DIP switches ( 33)
MS
BS
BE
DE
LED status displays for diagnostics
LED status displays ( 86)
