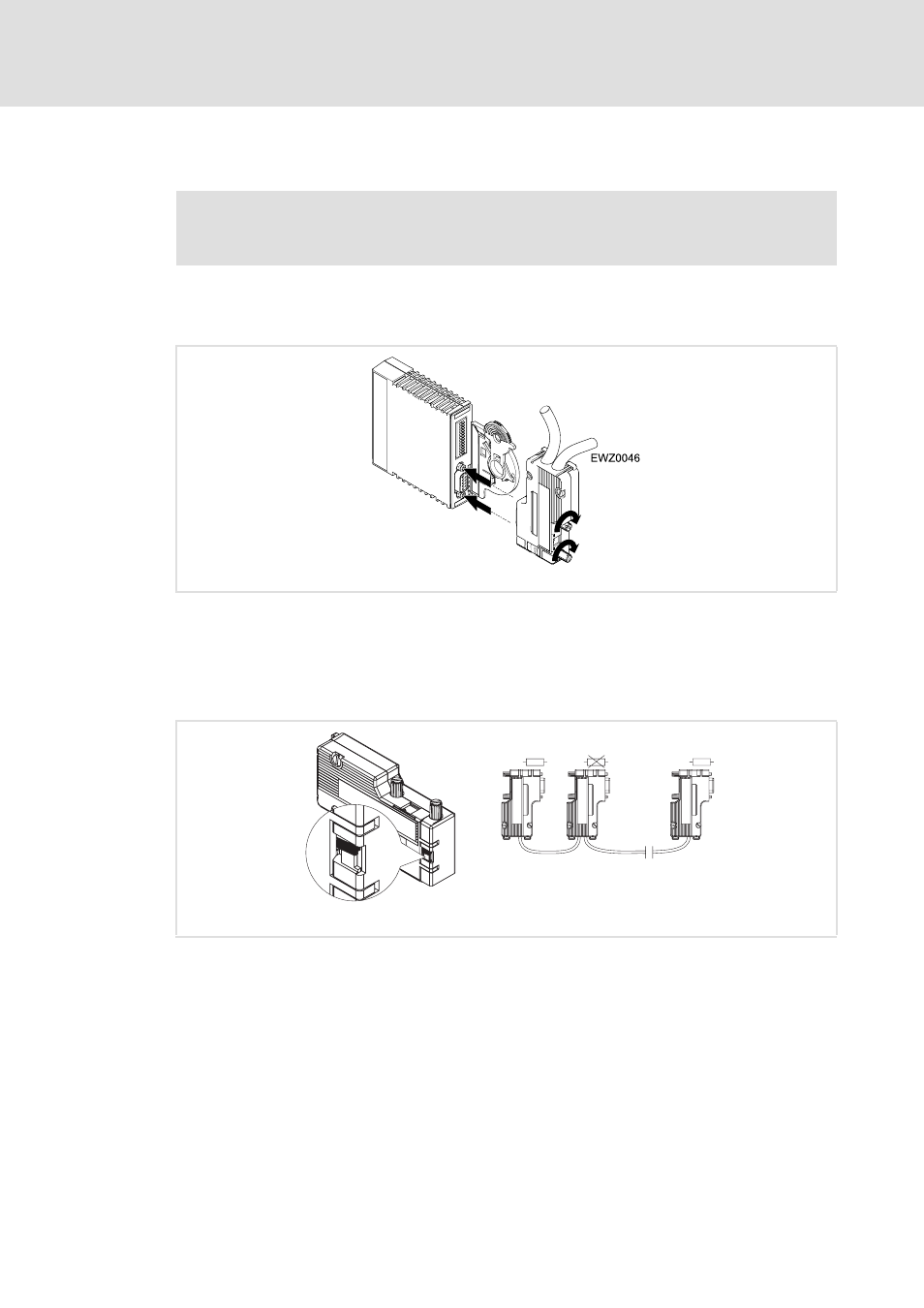

5.2.1 System bus (CANopen) connection
 The system bus (CANopen) must be terminated with resistors (120 Ω) between CAN-
low and CAN-high.
 The Lenze system connector EWZ0046 with integrated terminating resistor complies
with the DS102-1 recommendation of the CAN user organisation CiA. The system
connector is not contained in the scope of supply of the communication module.

Documentation of the standard device, control system, and plant/machine
Observe the notes and wiring instructions stated.
E94YCCA002A
2181FEW004
L
EWZ0046
OF F
ON
OFF
ON
ON
OFF
р
р р р
OUT IN IN IN
On Off On
120 120 120
L
EWZ0046
L
EWZ0046
L
EWZ0046
