EDS84AYCER EN 2.0 - 11/2010

L

69

E84AYCER communication manual (PROFINET)

Diagnostics

LED status displays

11.1.3

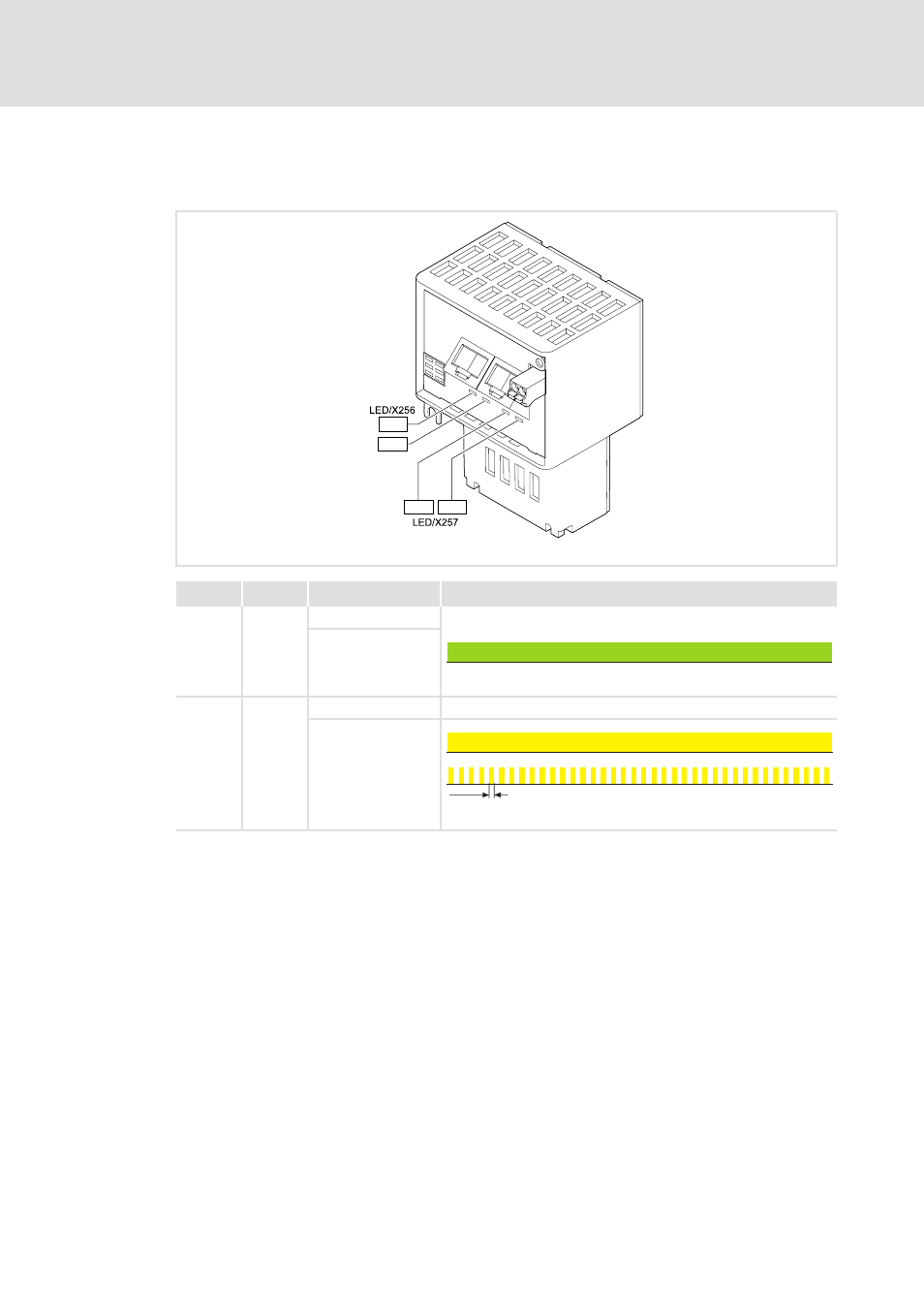

Status displays at X256 and X257

The LEDs below RJ45 sockets X256 and X257 display the PROFINET connection status.

E84YCER005

LED

Colour

Status

Description

A

Green

Off

There is no PROFINET connection.

On

There is a PROFINET connection.

B

Yellow

Off

No communication

On or

Jittering

Communication active

A

B

A

B

50 ms
