E84AYCER communication manual (PROFINET)

Installation

Electrical installation

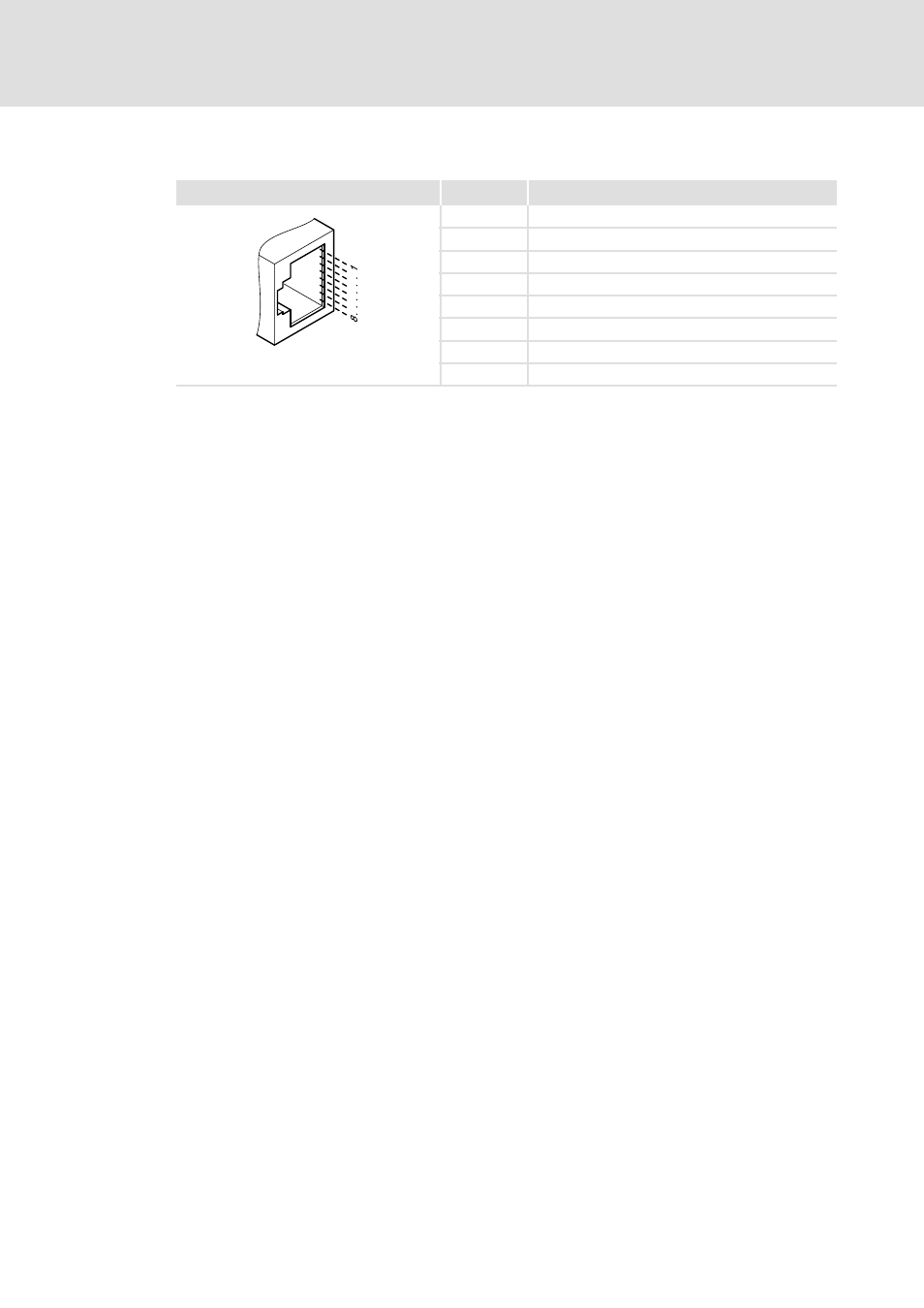

Pin assignment of the RJ45 sockets

Tip!
The PROFINET interfaces feature an auto MDIX function. This function adjusts the

polarity of the RJ45 interfaces so that a connection is established irrespective of the

polarity of the opposite PROFINET interface, and irrespecive of the type of cable

used (standard patch cable or crossover cable).

RJ45 socket

Pin

Signal

E94AYCXX004C

1

Tx +

2

Tx -

3

Rx +

4

-

5

-

6

Rx -

7

-

8

-
