Process data transfer
Accessing process data / PDO mapping
42
L
EDS84AYCER EN 2.0 - 11/2010
8
Process data transfer
8.1
Accessing process data / PDO mapping
The process data (MCI PDOs) are transferred via the MCI interface.
Max. 16 words are exchanged for each direction.
The process data are accessed via the port blocks LP_MciIn and LP_MciOut. The port
blocks are also called process data channels.
The LP_MciIn port block maps the MCI PDOs received.
The LP_MciOut port block maps the MCI PDOs to be transmitted.
The port/function block interconnection of the process data objects (PDO) is made via
the Lenze »Engineer«.

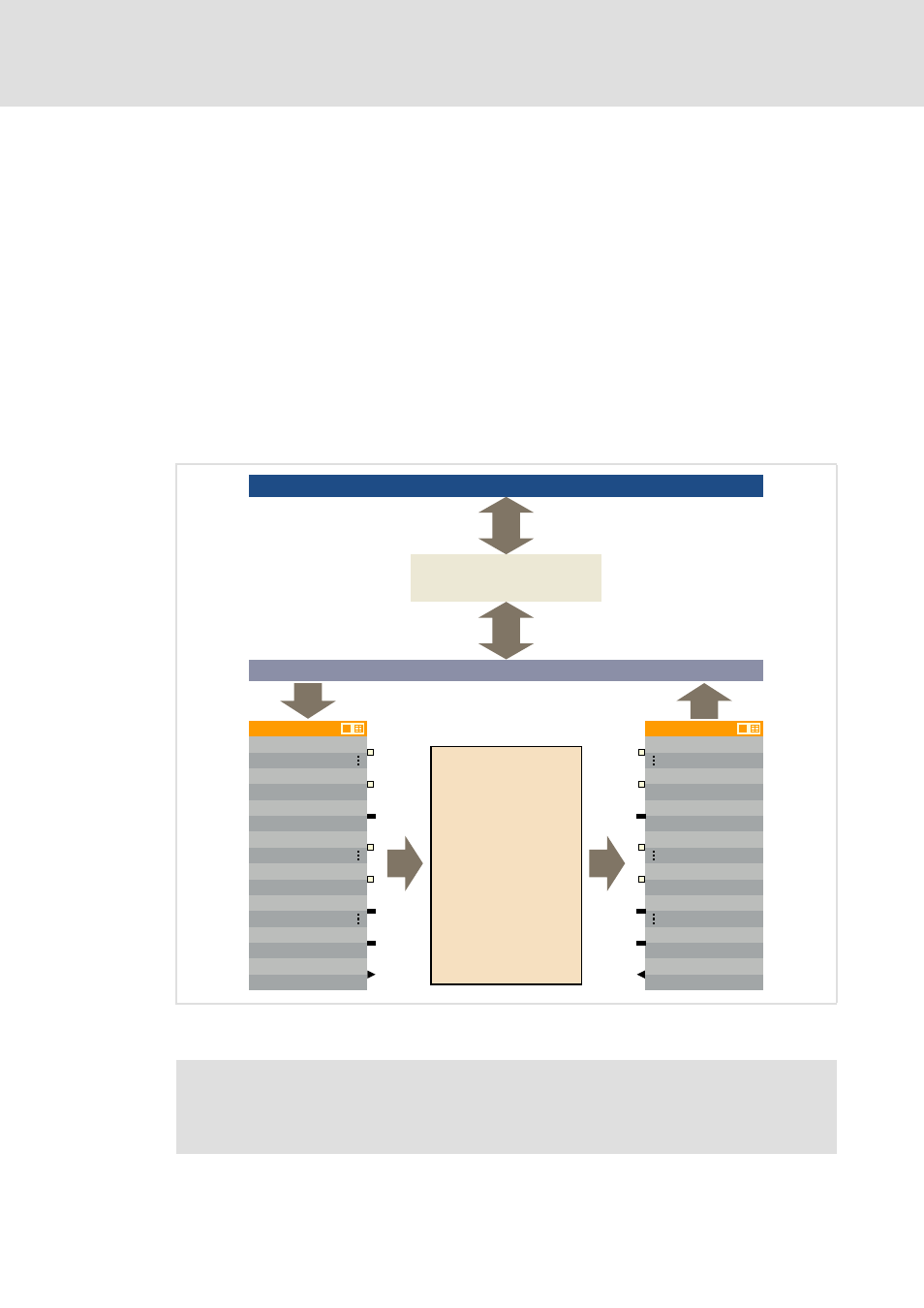

[8-1]
External and internal data transfer between the bus system, controller, and application
/3B0FL,Q
"
E&WUOB%
E&WUOB%
Z&WUO
E,QB%
E,QB%
Z,Q
Z,Q
GQ,QBS
/3B0FL2XW
E6WDWHB%
E6WDWHB%
Z6WDWH
E2XWB%
E2XWB%
Z2XW
Z2XW
GQ2XWBS
"
)LHOGEXV
$SSOLFDWLRQ
)%LQWHUFRQQHFWLRQ
&RPPXQLFDWLRQPRGXOH
0&,LQWHUIDFH
Software manual / »Engineer« online help for the Inverter Drive 8400
Here you will find detailed information on the port/function block
interconnection in the »Engineer« and the port blocks.
