E84AYCER communication manual (PROFINET)

Process data transfer

Preconfigured port interconnection of the process data objects (PDO)

8.2

Preconfigured port interconnection of the process data objects (PDO)

The preconfigured port interconnection of the process data objects can be activated by

setting standard device code C00007 = "40: MCI".

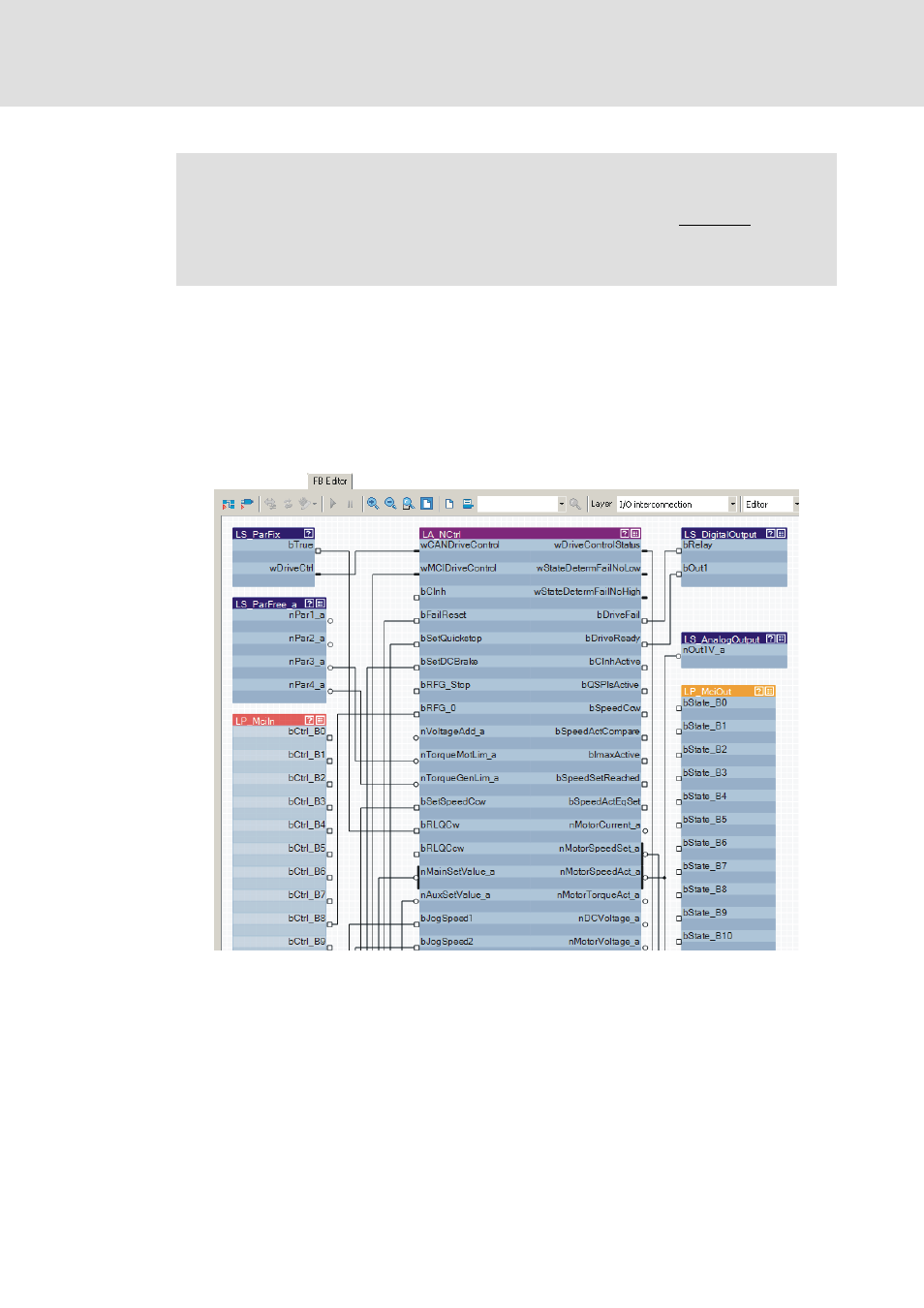

The function block editor (FB Editor) serves to display the port blocks "LP_MciIn" and

"LP_MciOut" with the preconfigured interconnections:

Note!

The »Engineer« screenshots shown in the following are only examples for the

setting sequence and the resulting displays.
The data in the display fields may differ from the ones of your project.
