E84AYCER communication manual (PROFINET)
Technical data
Protective insulation
18
L
EDS84AYCER EN 2.0 - 11/2010

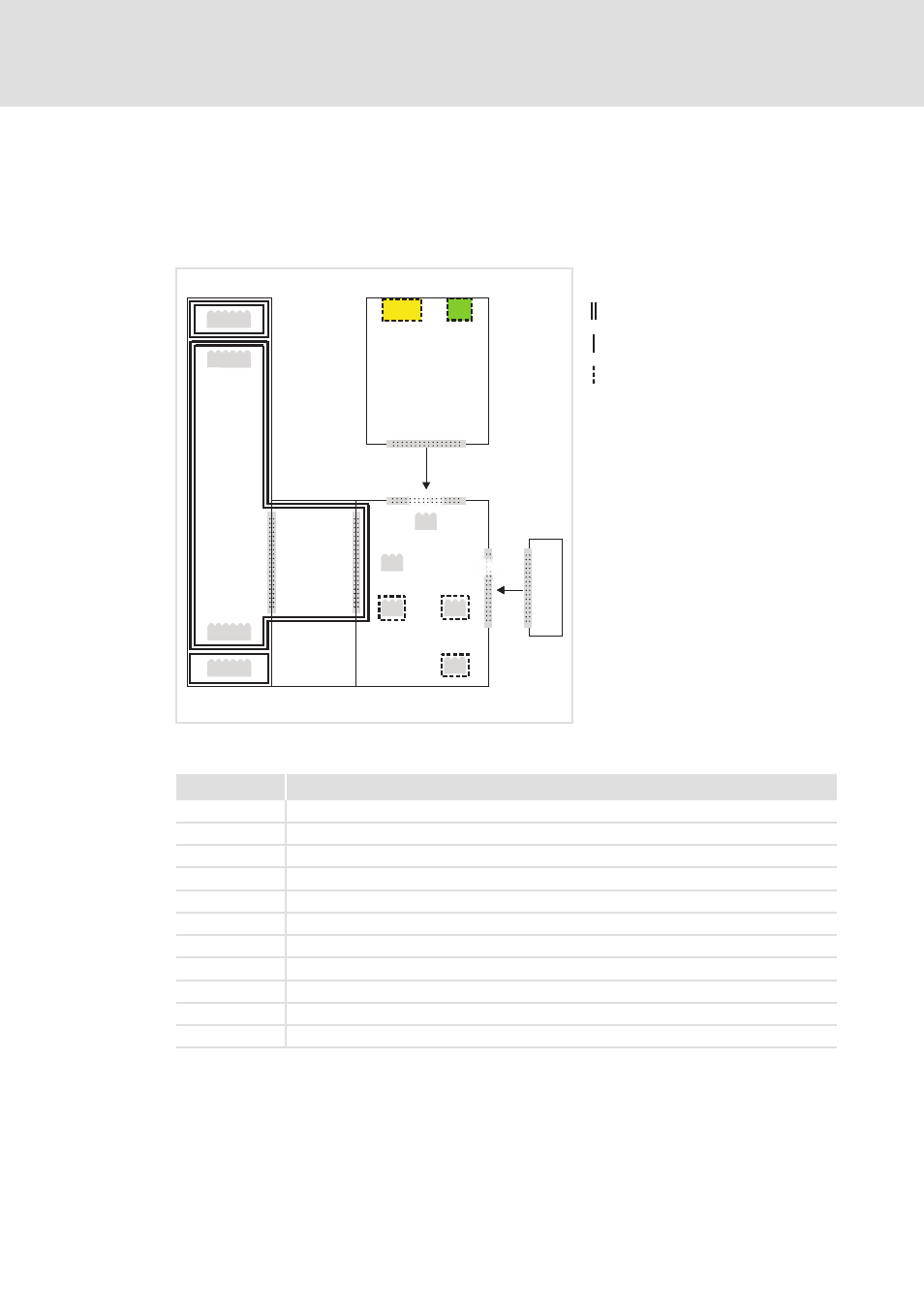

The illustration below ...
 shows the arrangement of the terminal strips and the separate potential areas of the
Inverter Drive 8400.
 serves to determine the decisive protective insulation between two terminals located
in differently insulated separate potential areas.
[4-1] Protective insulation in accordance with EN61800-5-1
E84YCXX007
Reinforced insulation
Basic insulation
Functional insulation
X4
X6
X5
X3
Bus Ext. DC
MCI
X4
X6
X5
X3
X1 X1
X105 X105
X100 X100
MMI
X106 X106 X106 X106
X106 X106 X106 X101
Terminal strip Connection
X100 Mains / DC-bus connection
X101 Relay contact
X105 Motor / brake resistor
X106 Motor PTC
X1 System bus (CANopen)
X3 Analog inputs / outputs
X4 Digital outputs
X5 Digital inputs
X6 Diagnostics
MCI Slot for communication module
MMI Slot for memory module
