Page 23: E84aycer communication manual (profinet)

EDS84AYCER EN 2.0 - 11/2010

E84AYCER communication manual (PROFINET)

Installation

Mechanical installation

5.1

Mechanical installation

When the controller is switched-on, the communication module can be plugged into the

MCI slot or removed from there. During the process of being plugged in, the module is

automatically detected and its functions and version are checked for plausibility.

5.1.1

Mounting for standard devices 0.25 kW and 0.37 kW

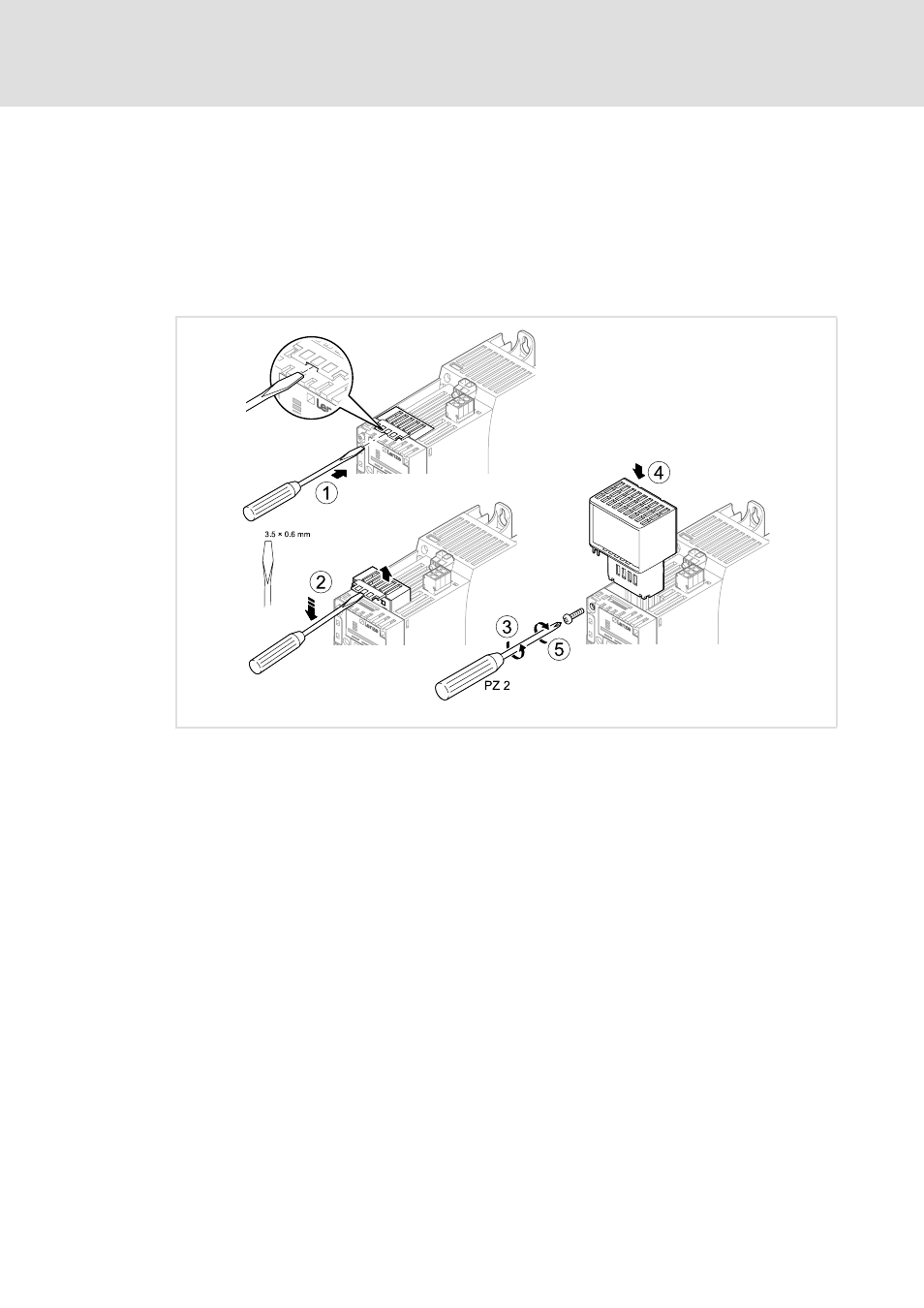

[5-1]

Mounting for standard devices 0.25 kW and 0.37 kW

Mounting steps

1. Use a screwdriver to open the cover of the MCI slot of the standard device and remove

it (1, 2).

2. Loosen the securing screw for the communication module on the standard device (3).
3. Insert the communication module into the MCI slot of the standard device (4).
4. Tighten the securing screw again (5).

E84YCPM002D
